The Shaper Origin: A Hand-held CNC Router That Takes Wood Working To A New Level

In this article by CNC expert Garrett from IDC Woodcraft, dives into the unique and versatile Shaper Origin hand-held CNC router. This machine combines precision with portability in ways that redefine what woodworkers can achieve in their workshops.

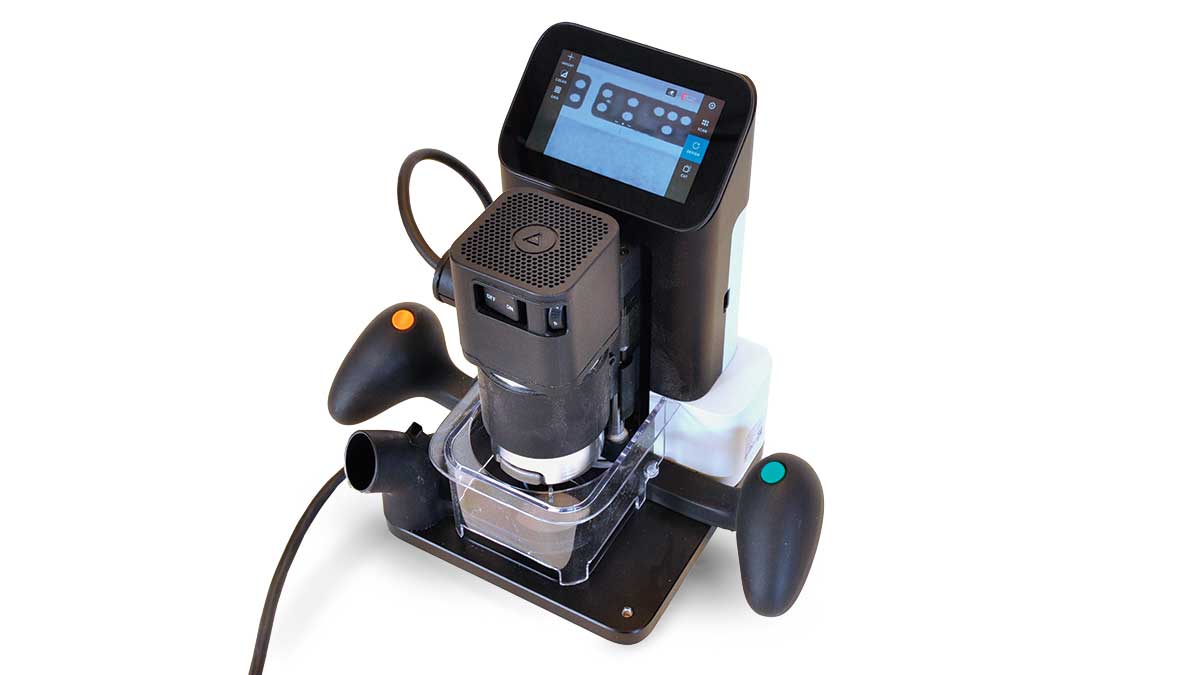

What is the Shaper Origin?

The Shaper Origin is a handheld CNC router designed to combine the precision and capabilities of traditional CNC routing to a portable and easy-to-use wood carving tool.



The Shaper Origin stands out in the world of CNC woodworking due to its innovative blend of portability and precision. Unlike stationary CNC routers that require a fixed setup and considerable space, the Shaper Origin brings the power of wood carving directly into the hands of the user, literally.



This handheld device integrates advanced technology that allows for real-time corrections during use, ensuring that even the most intricate cuts are cut with precision. Its ability to adapt dynamically to the user’s movements, correcting any deviations on the fly, makes it an invaluable tool for both professionals and hobbyists who require CNC precision without the limitations of a static machine.



Moreover, the Shaper Origin is uniquely beneficial because it enables high-quality cutting to a broader range of creators and environments. From small-scale workshops to on-site installations, it offers the flexibility to work virtually anywhere.



The Origin uses a vision system that reads domino-like markers placed on the work surface, enabling it to know its position at all times and adjust accordingly. This means users can achieve complex designs with less setup time and without the need for large, expensive equipment. Whether crafting custom furniture, intricate inlays, or unique prototypes, the Shaper Origin ensures that high precision and ease of use go hand in hand, making advanced woodworking and prototyping accessible to more people than ever before.

How Does It Work?

It combines manual handling with automated adjustments. As you guide the Origin along the material, its automatically correct your path to ensure precise cuts.



The Origin uses a vision system that reads domino-like markers placed on the work surface, enabling it to know its position at all times and adjust accordingly. This means users can achieve complex designs with less setup time and without the need for large, expensive equipment. Whether crafting custom furniture, intricate inlays, the Shaper Origin ensures that high precision and ease of use go hand in hand, making advanced woodworking and prototyping accessible to more people than ever before.

Watch the video to get introduced to the Shaper Origin and how it works

Poster

Why Is The Shaper Origin So Popular in Woodworking?

The Shaper Origin has gained such popularity because it benefits a diverse range of users due to its unique combination of portability, precision, and ease of use.



Professional Woodworkers and Carpenters: For professionals, the Shaper Origin is a game-changer because it allows them to bring CNC capabilities directly to the job site. This is particularly useful for custom installations and adjustments, where traditional CNC machines would be impractical due to their size and complexity.



Woodworking Hobbyists: The Shaper Origin is ideal for hobbyists who may not have the space or the budget for a full-sized CNC machine. Its user-friendly interface and flexibility allow enthusiasts to undertake complex projects with professional-grade precision right from their home workshops.

Designers and Artists: For those who specialize in custom designs and artistic projects, the Shaper Origin offers the ability to work with a variety of materials and intricate designs. Artists can create detailed inlays, custom furniture pieces, or unique art installations, all with the precision that CNC technology offers.



Educators and Trainers: In educational settings, the Shaper Origin serves as an excellent resource for teaching students about advanced manufacturing technologies. It provides a hands-on learning experience that is both safe and engaging, helping to demystify CNC technology for newcomers.

Small Businesses: For small business owners, especially in the woodworking and custom fabrication sectors, the Shaper Origin can increase production capabilities without the overhead of larger, more expensive machinery. It allows for small-scale manufacturing with a low entry cost but high-quality output.

Each of these user groups benefits from the Shaper Origin's ability to deliver high-quality results with less overhead and setup time compared to traditional CNC machines.



This makes it an invaluable tool in many contexts where precision and flexibility are needed.

Does It Require Software?

The Shaper Origin has its own built-in software, yet it is compatible with any CAD software that can export SVG files, making it highly adaptable to various digital design workflows. Whether you use proprietary software like Shaper Studio or popular alternatives like Vectric, Carveco, and others. The key is the ability to generate SVG files for seamless tool operation.



It also has onboard wifi which allows it to connect to Shaper Hub, a resource where the user can import many files and designs.

What Types Of Router Bits Does It Use?

It supports standard router bits used for CNC routers, with shank sizes of 1/4 inch, 3/8 inch, and 8 mm. This versatility allows it to handle a wide range of cutting tasks, from intricate detailing to robust material removal.



Router bits with guide bearings are not needed, nor recommended, as they may interfere with the automatic movements of the Shaper.

How Is the Tool Controlled During Operation?

The Origin is manually guided but includes an automatic correction feature that keeps the cutting tool on path. It has a maximum stroke of about one inch, which allows it to adjust its position to stay on the cut line, enhancing user control and accuracy.



The Origin’s guidance is powered by a vision system that reads domino-like dots placed on the work surface. These dots help the tool understand its location and make precise adjustments in real time.

How Does the Origin Know Its Position on the Material?

Users start by creating a digital scan of the work area using the Origin, which captures the position of guide markers and the layout of the project. This scan helps in accurately positioning and aligning the design before cutting begins.



The Origin uses its vision system to track its position relative to the markers laid out on the work area. This system provides continuous feedback, adjusting the tool's path to maintain accuracy.

Can the Shaper Origin Handle 2.5D and 3D Carvings?

While the Shaper Origin excels in 2D and shallow 3D cuts, it is not designed for deep 3D relief work typically seen in topographical maps. Its functionality is best suited for projects where depth control remains within a shallow range, which is ideal for most woodworking projects and inlays.

Get The Shaper Origin

What Are the Key Benefits and Ideal Use Cases for the Shaper Origin?

The Shaper Origin is particularly useful for anyone with limited workshop space, needing portability, or requiring CNC precision on-site. It's ideal for creating furniture, custom cabinetry, and decorative inlays. Professionals can bring CNC capabilities directly to job sites, while hobbyists can achieve professional results in a home setting.



The Shaper Origin is versatile enough to handle a wide range of woodworking projects, which can be particularly inspiring for anyone looking to push the boundaries of traditional and CNC craft. Here's a breakdown of some project types that highlight the capabilities of the Shaper Origin:



1. Joinery Projects: The Shaper Origin excels at joinery work, making it possible to create precise joints that are essential for furniture making and cabinetry. Its ability to handle complex cuts and fine adjustments in real time makes it ideal for creating dovetails, box joints, and other detailed joinery work.



2. Custom Furniture: Whether you're crafting tables, chairs, or custom storage solutions, the Shaper Origin provides the accuracy needed for cutting large parts and the intricacies of decorative work. Its portability allows for working directly on large pieces without the constraints of a fixed CNC setup.



3. Decorative Inlays and Detailed Artwork: For projects that require intricate patterns and fine details, such as inlays in hardwood floors or decorative panels, the Shaper Origin's precision is invaluable. It allows for the integration of complex designs into various woodworking projects, enhancing the aesthetic appeal of the finished product.



4. Wooden Utensils and Small Crafts: The tool is also perfect for smaller projects such as creating wooden kitchen utensils, like spoons, spatulas, or a set of custom knives. These projects allow for personalization and functionality, combining art with utility in everyday items.



5. Educational and Prototyping Applications: The Shaper Origin is not only for production but also serves as an excellent educational tool for learning CNC technology. It is suitable for making prototypes or models in a design or educational setting, where ease of use and flexibility are key.



6. Sign Making and Custom Decor: With the ability to carve into wood and other materials, the Shaper Origin is great for sign making, whether for businesses or personal use. Users can easily create detailed and custom signs that stand out.



The diversity of projects the Shaper Origin can handle, from detailed artistry to functional woodworking, makes it a valuable tool in any woodworker's arsenal. Its unique blend of portability, ease of use, and precision offers endless possibilities for creative and practical projects alike.

Can the Shaper Origin Handle 2.5D and 3D Carvings?

No. While the Shaper Origin excels in 2D and shallow 3D cuts, it is not designed for deep 3D relief work typically seen in topographical maps. Its functionality is best suited for projects where depth control remains within a shallow range, which is ideal for most woodworking projects and inlays.

Get The Shaper Origin

FAQs

Is the Shaper Origin suitable for beginners?

Absolutely! The Shaper Origin is designed with user-friendliness in mind. It offers an intuitive interface and real-time guidance, which make it accessible even to those with limited experience in CNC technology.



Can the Shaper Origin be used on professional projects?

Yes, the Shaper Origin is highly capable and precise enough for professional woodworking projects. It is especially useful for custom installations, intricate design work, and on-site work.



Can the Shaper Origin cut metal?

Yes, but only for softer metals like aluminum, brass and copper.



Can the Shaper Origin carve in stone?

With the correct router bits, yes. However, stane carving generally requires a coolant which the unit is not designed for.



What kind of support and warranty does the Shaper Origin come with?

The Shaper Origin typically comes with a two-year warranty that covers and excellent customer support. The warranty covers mechanical issues and software problems.

Customer service is noted for being very responsive, and any mechanical issues or damages can be handled directly by sending the unit back to the manufacturer for repairs. Additionally, most software issues can typically be resolved remotely, adding an extra layer of support for users.



Where can I purchase the Shaper Origin?

The Shaper Origin can be purchased directly from this link, the Shaper Tools website or through various authorized retailers and online platforms specializing in woodworking tools.
