1/8" up cut drilling endmill bit set with collet adapter
1/8" up cut drilling endmill bit set with collet adapter

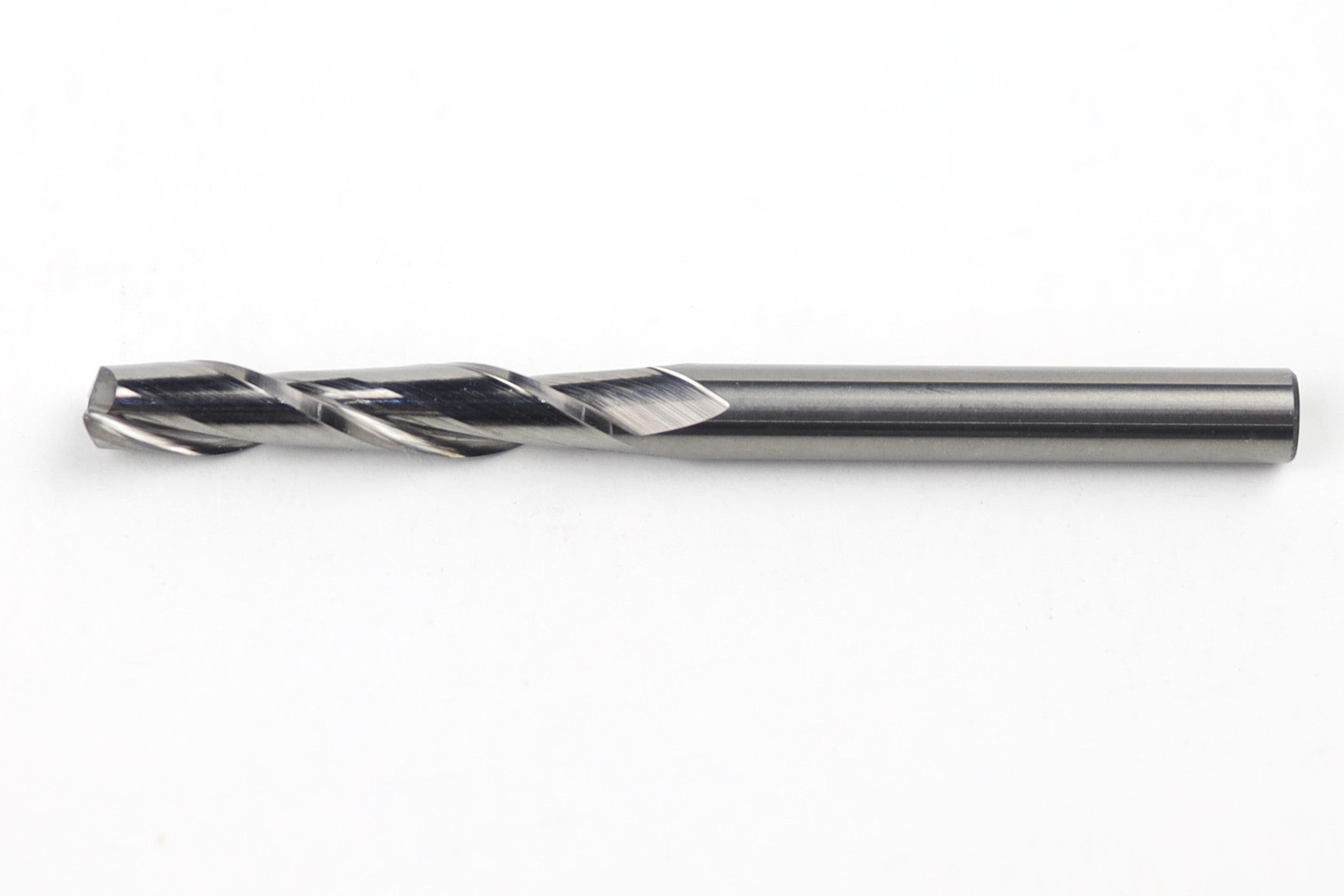

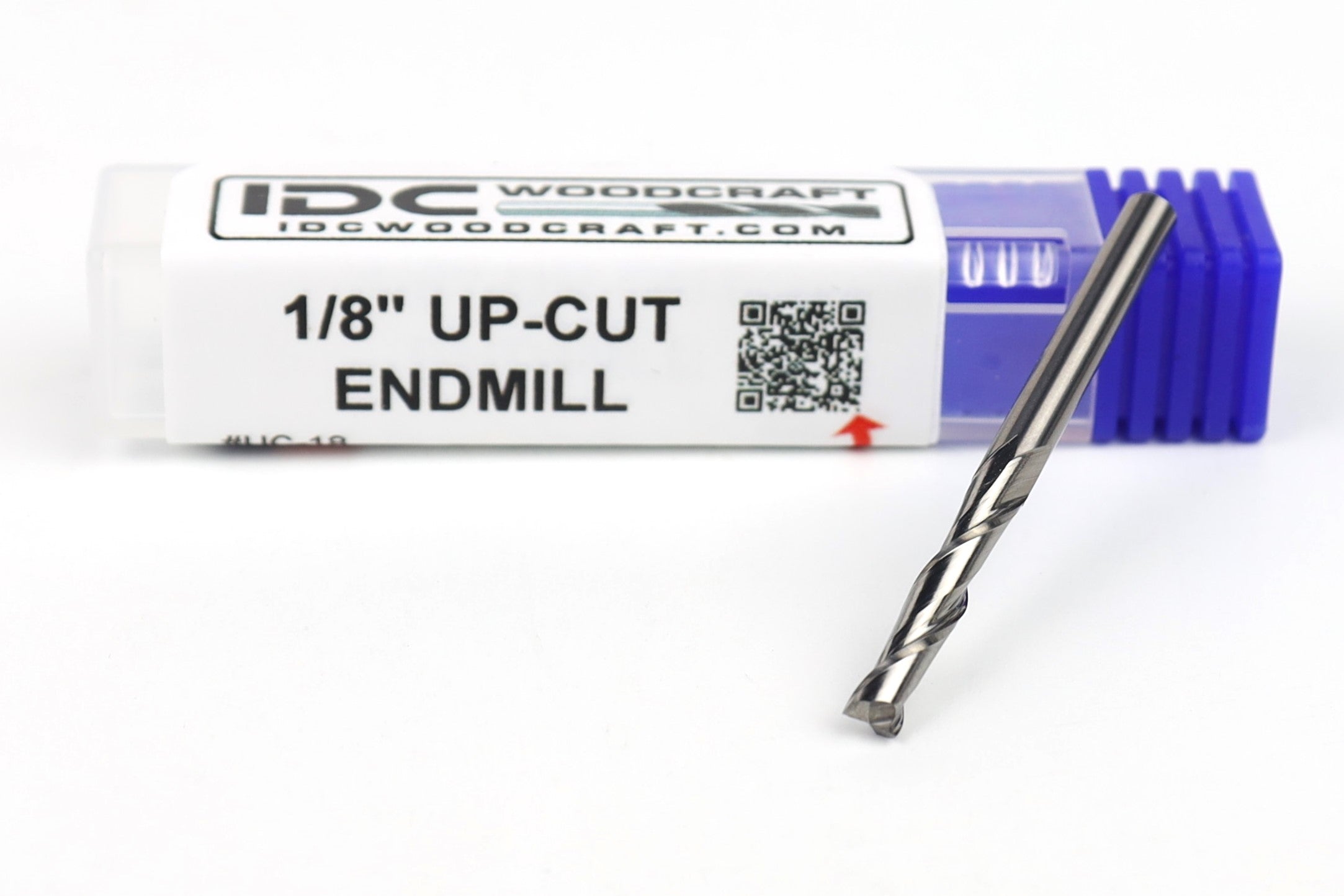

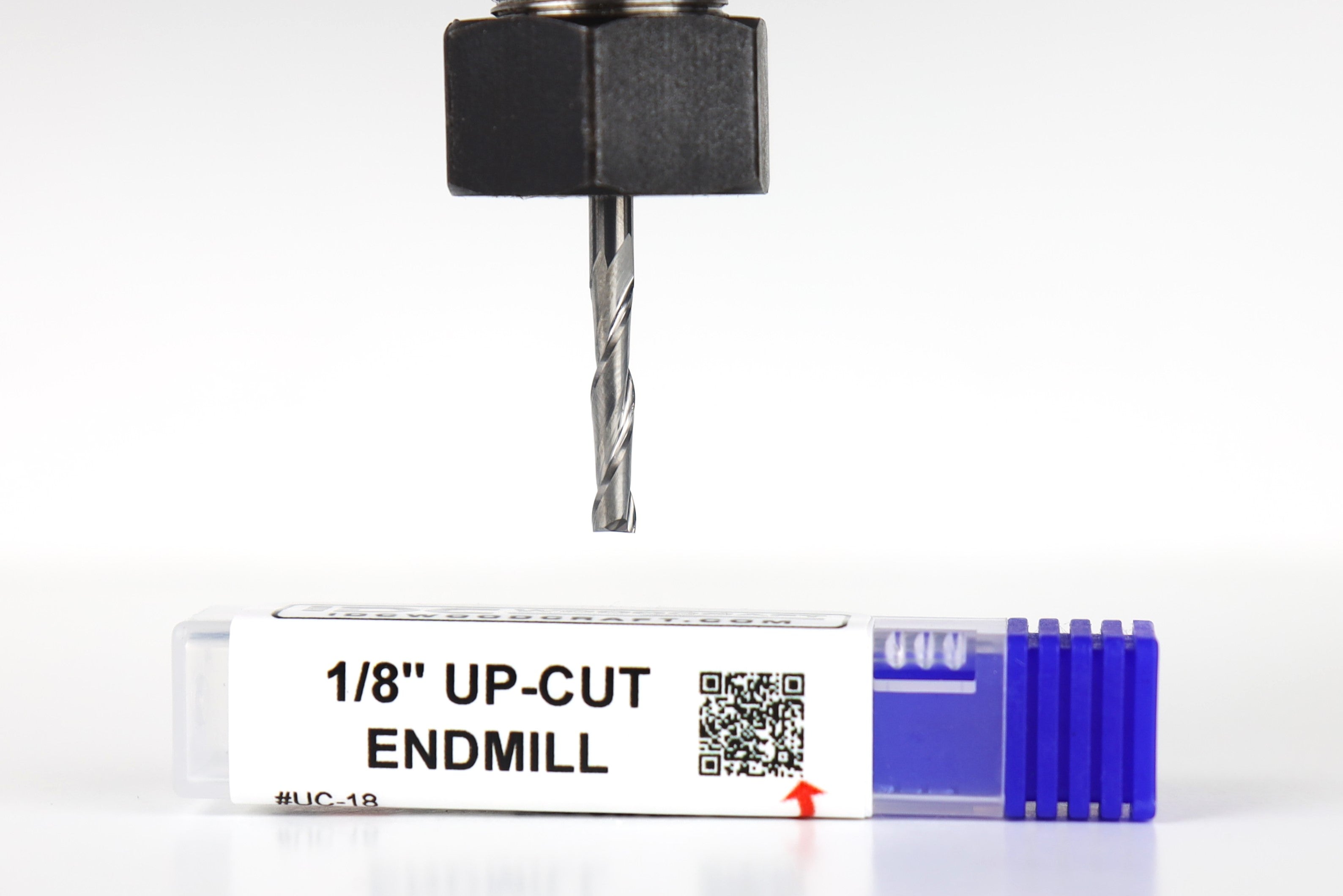

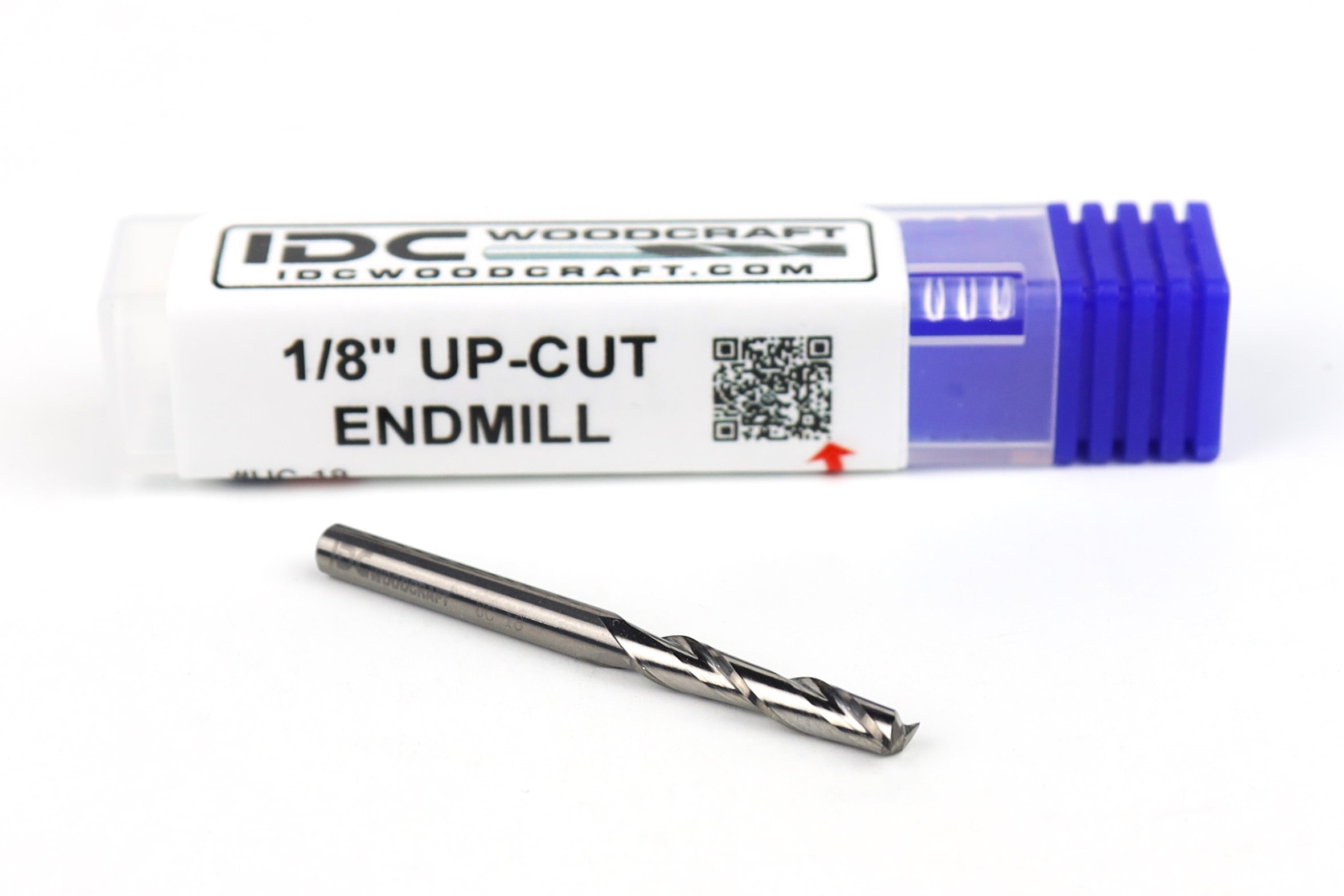

1/8" Up-Cut Endmill Bit (Drilling Capable) For CNC Routers (set of 2)

This fast-action 1/8" up-cutting drilling endmill CNC router bit is designed with a special double-bevel tip that allows for drilling, as well as side cutting. The fast spiral classifies it as a fast-action bit, designed to remove a lot of material at high speeds.

You will get 2 bits and a 1/4" to 1/8" reducing collet, so it fits any 1/4" router.

$24.78 USD

Availability: In Stock

Quantity:

Description

The 1/8" up cutting drilling endmill CNC router bit is designed with a special double-bevel tip that allows for drilling, as well as side cutting. The fast spiral classifies it as a fast-action bit, designed to remove a lot of material at high speeds.

You will get 2 bits and a 1/4" to 1/8" reducing collet, so it fits any 1/4" router.

UC-18

Specs

  • Cut dia: 1/8" (3.175mm)
  • Flute length: 0.75" (19mm)
  • Flutes: 2
  • Overall length: 1.5" (38mm)

Settings

For Milling

  • Speed (rpm): 22,000
  • Feed rate: 50 inches per minute
  • Plunge rate: 25 inches per minute
  • Depth per pass: 0.125"

For Drilling

  • Speed (rpm): 22,000
  • Depth per peck: 0.1"
  • Plunge rate: 60 inches per minute

For Vectric users, get the latest CNC router bit tool database by going to this page

For CNC’s with routers, refer to this PDF download feeds & speeds table

Get feeds and speeds in your shop by scanning this QR code with the IDC Woodcraft App

QR Code Image for 1/8" Up-Cut Endmill Bit (Drilling Capable) For CNC Routers (set of 2)

Customer Reviews

Based on 7 reviews
100%
(7)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
Stewart Edwards

1/8" Up-Cut Endmill Bit (Drilling Capable) For CNC Routers (set of 2)

R
Roger K Smith
DCEM 1/8” Bit LONG

Works AWESOME! I thought it would break but NO IT DIDN’T. Very happy with every bit I have purchased from IDC Woodcraft. Keep up the GOOD QUALITY!

D
DONNIE GOFORTH

1/8" Up-Cut Endmill Bit (Drilling Capable) For CNC Routers (set of 2)

N
Nick Holland
1/8 upcut

Just used these this morning and I was mighty impressed.

C
Chris Cook
Awsome

Love using this bit for drilling holes in crib boards and Kaiser boards
