3/16" Compression Bit For CNC Routers, 1/4" Shank
3/16" Compression Bit For CNC Routers, 1/4" Shank
3/16" Compression Bit For CNC Routers, 1/4" Shank
3/16" Compression Bit For CNC Routers, 1/4" Shank

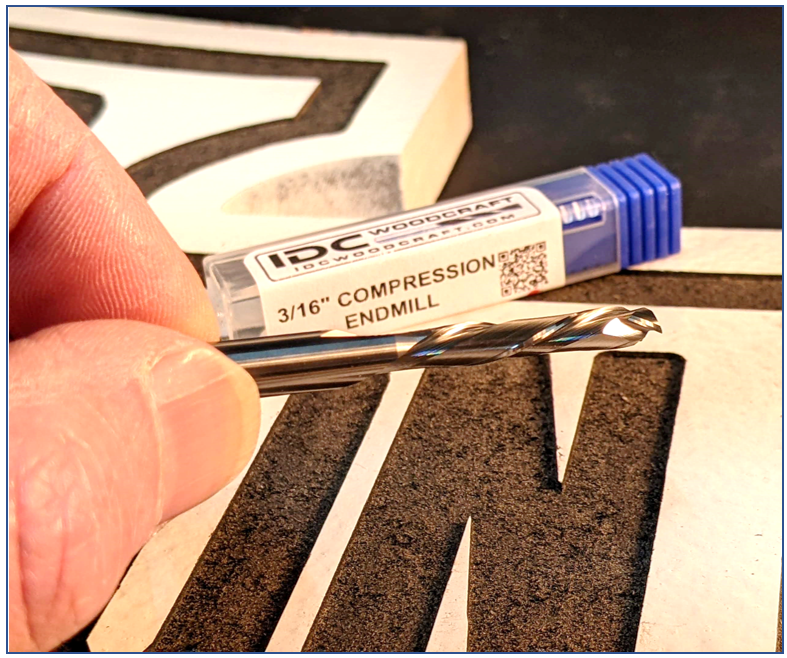

idc woodcraft 3/16" compression bit for cnc routers
idc woodcraft 3/16" compression bit for cnc routers used on ardionak chair
3/16" Compression Bit For CNC Routers, 1/4" Shank
idc woodcraft 3/16" compression bit for cnc routers
idc woodcraft 3/16" compression bit for cnc routers
idc woodcraft 3/16" compression bit for cnc routers
3/16" Compression Bit For CNC Routers, 1/4" Shank
3/16" Compression Bit For CNC Routers, 1/4" Shank
3/16" Compression Bit For CNC Routers, 1/4" Shank
3/16" Compression Bit For CNC Routers, 1/4" Shank
idc woodcraft 3/16" compression bit for cnc routers
idc woodcraft 3/16" compression bit for cnc routers used on ardionak chair
3/16" Compression Bit For CNC Routers, 1/4" Shank
idc woodcraft 3/16" compression bit for cnc routers
idc woodcraft 3/16" compression bit for cnc routers
idc woodcraft 3/16" compression bit for cnc routers

3/16" Compression Bit For CNC Routers, 1/4" Shank

Availability: In Stock

$36.17 USD

Quantity:

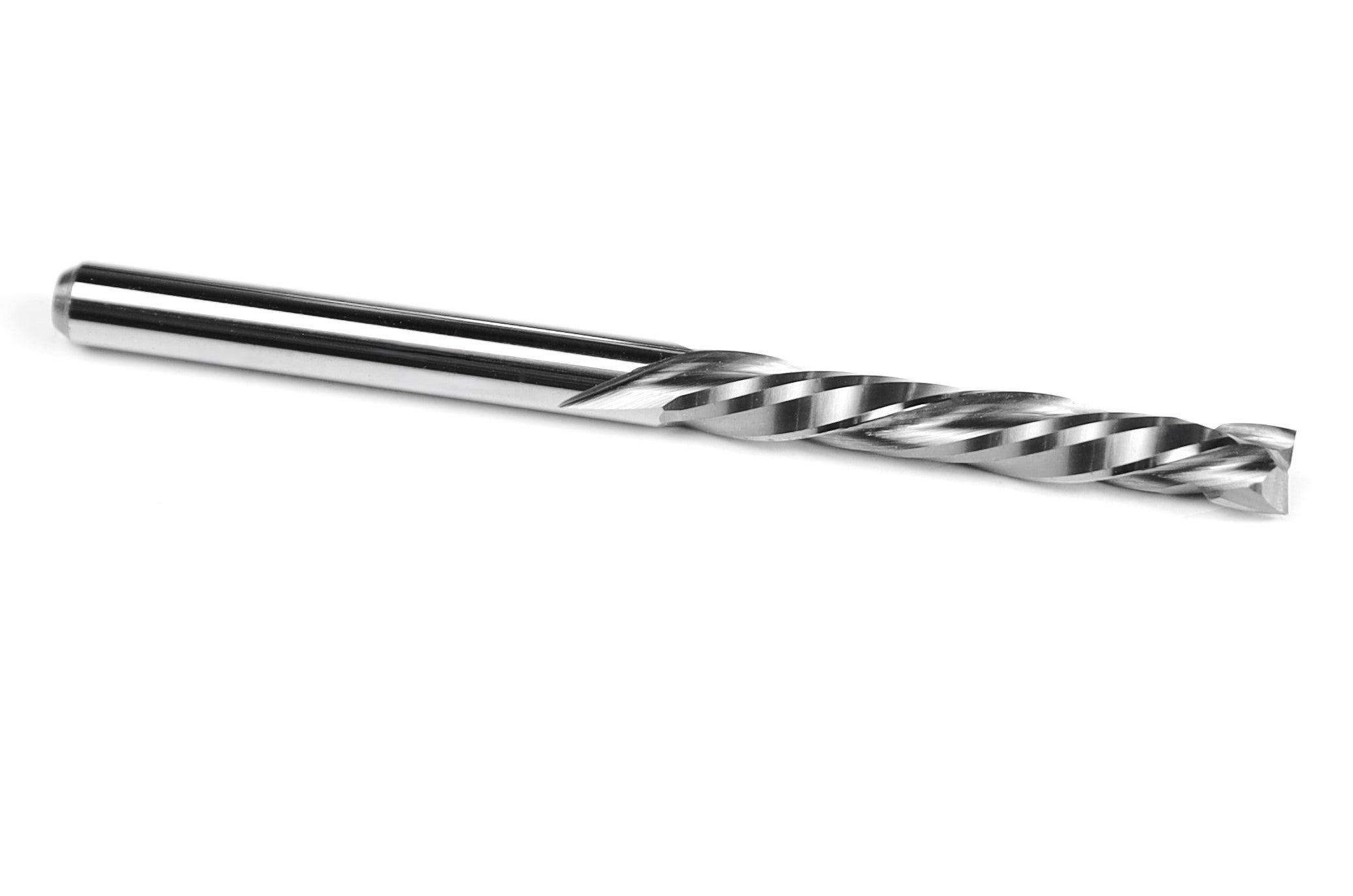

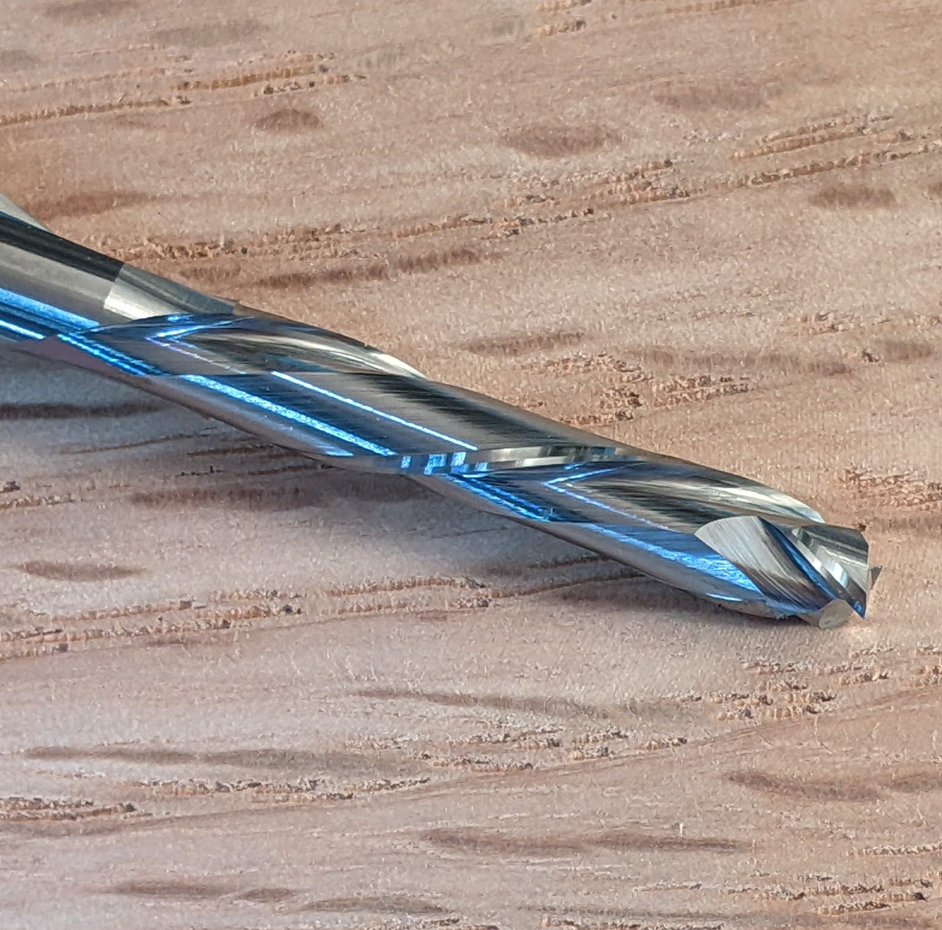

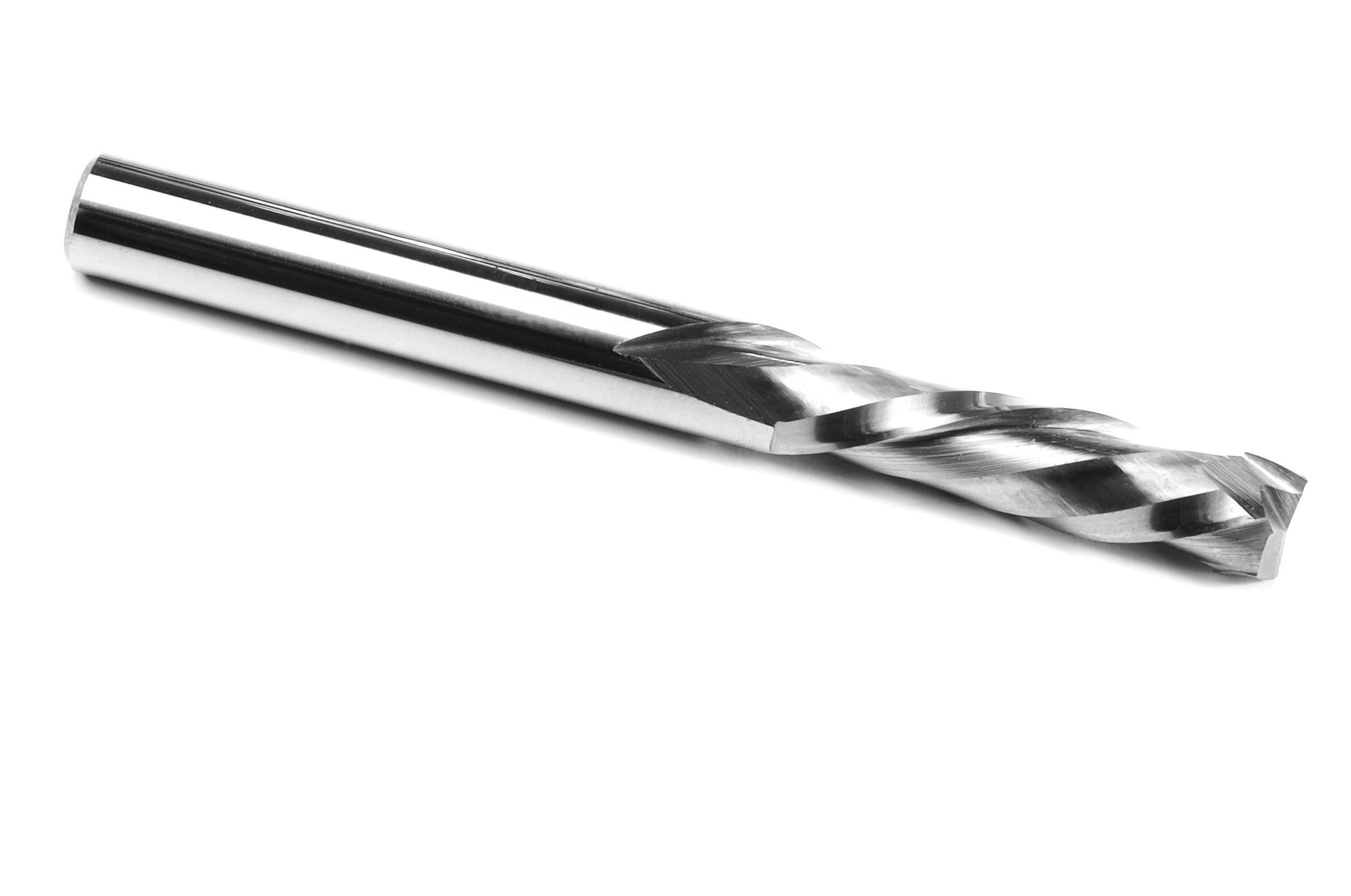

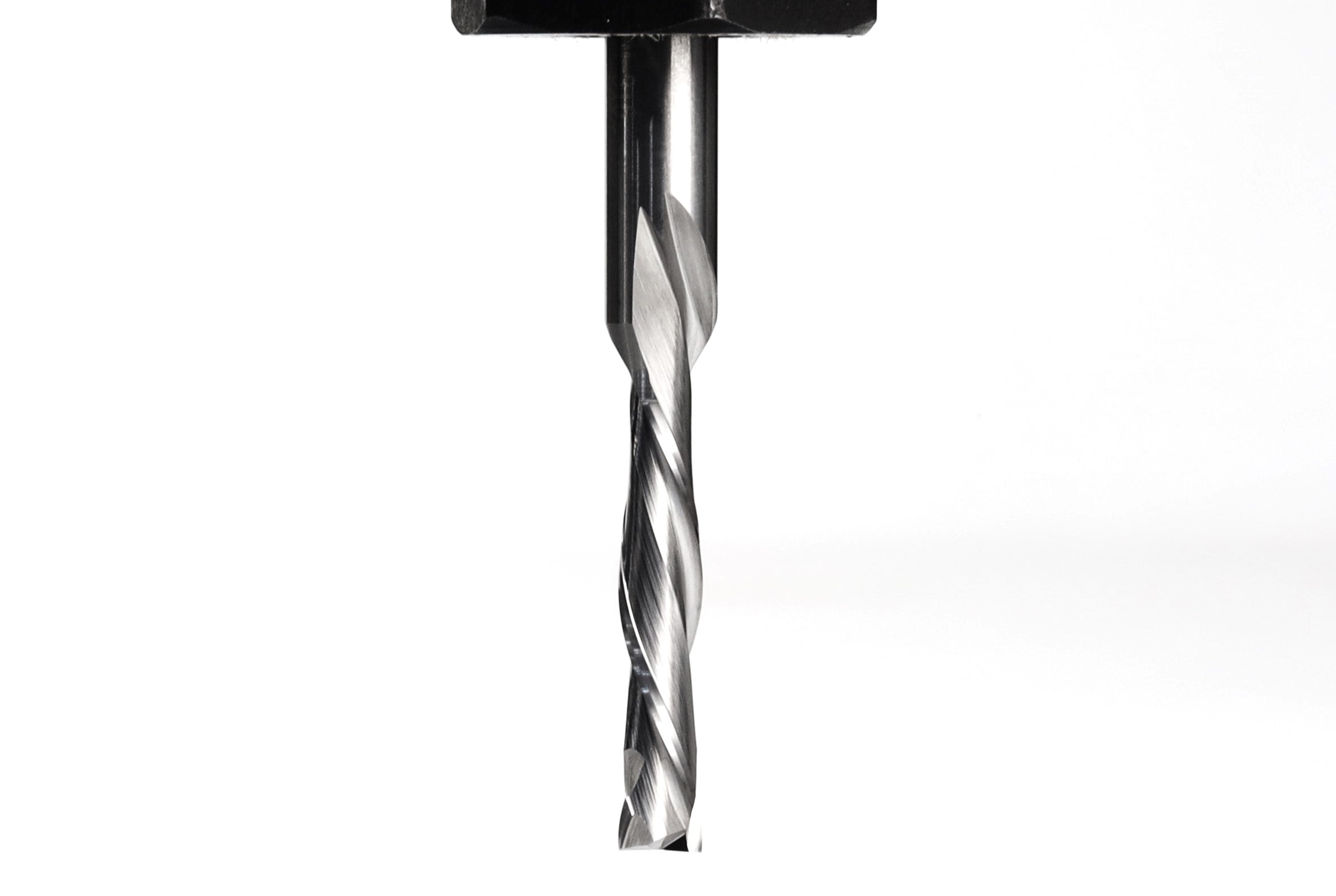

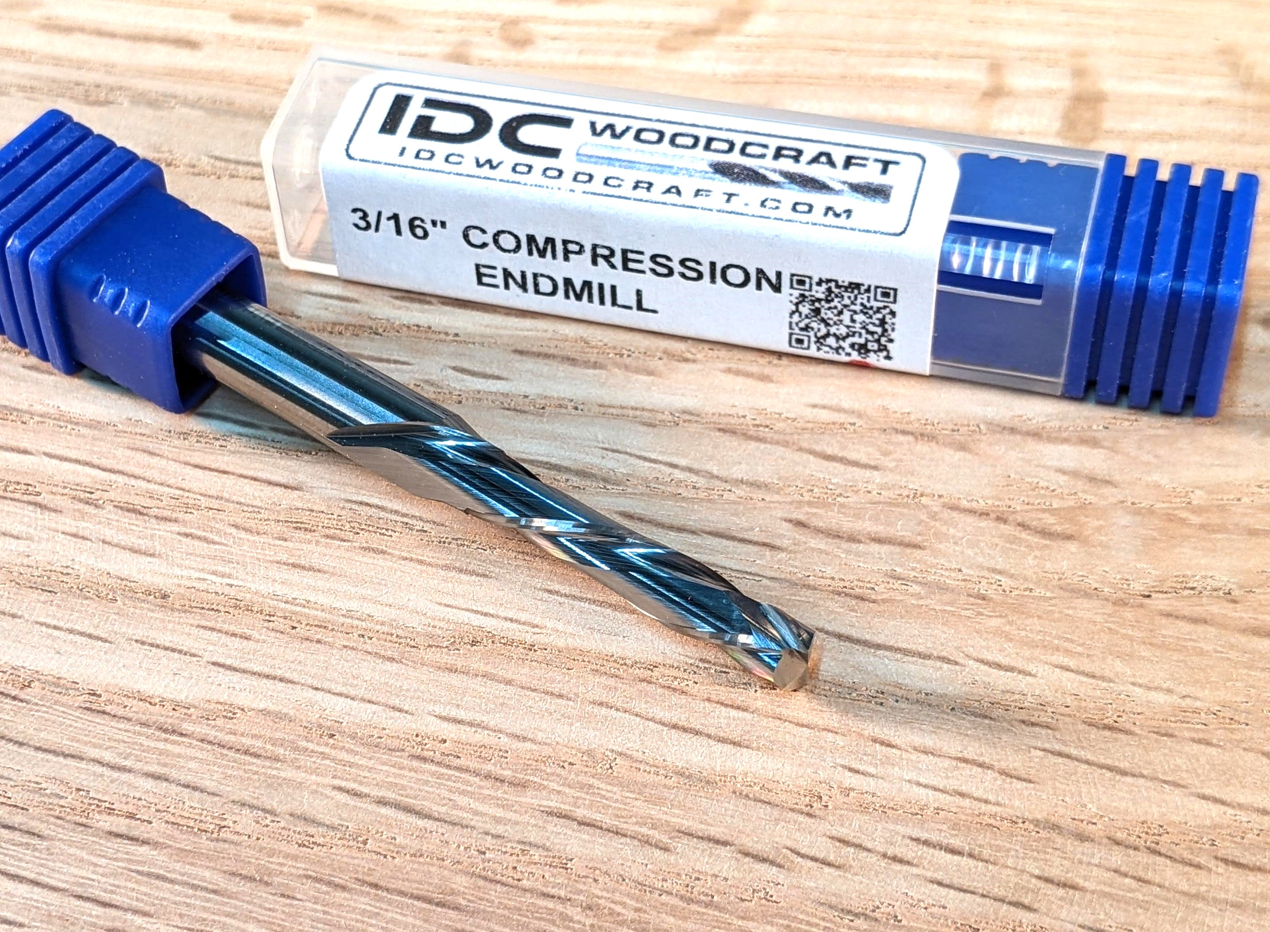

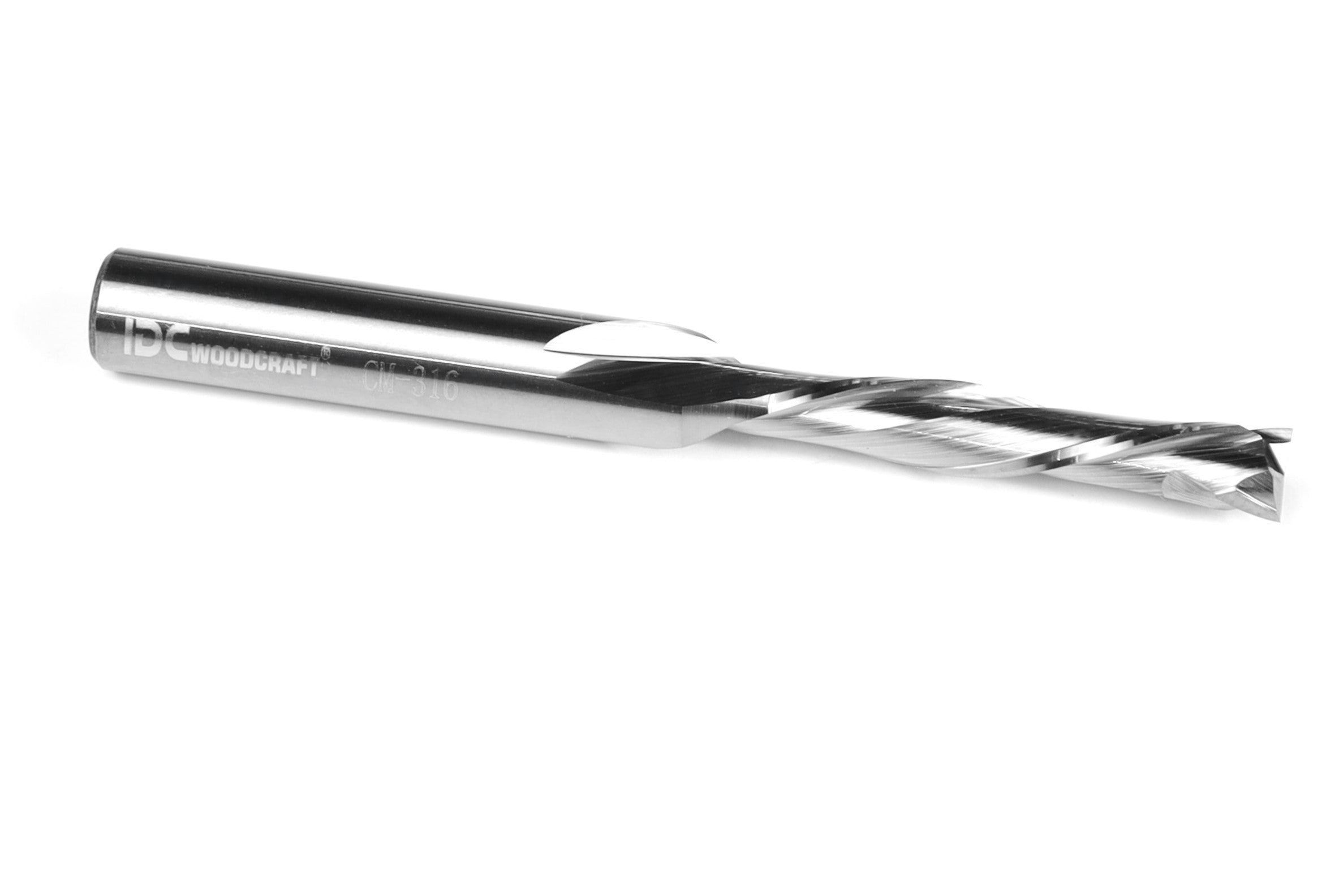

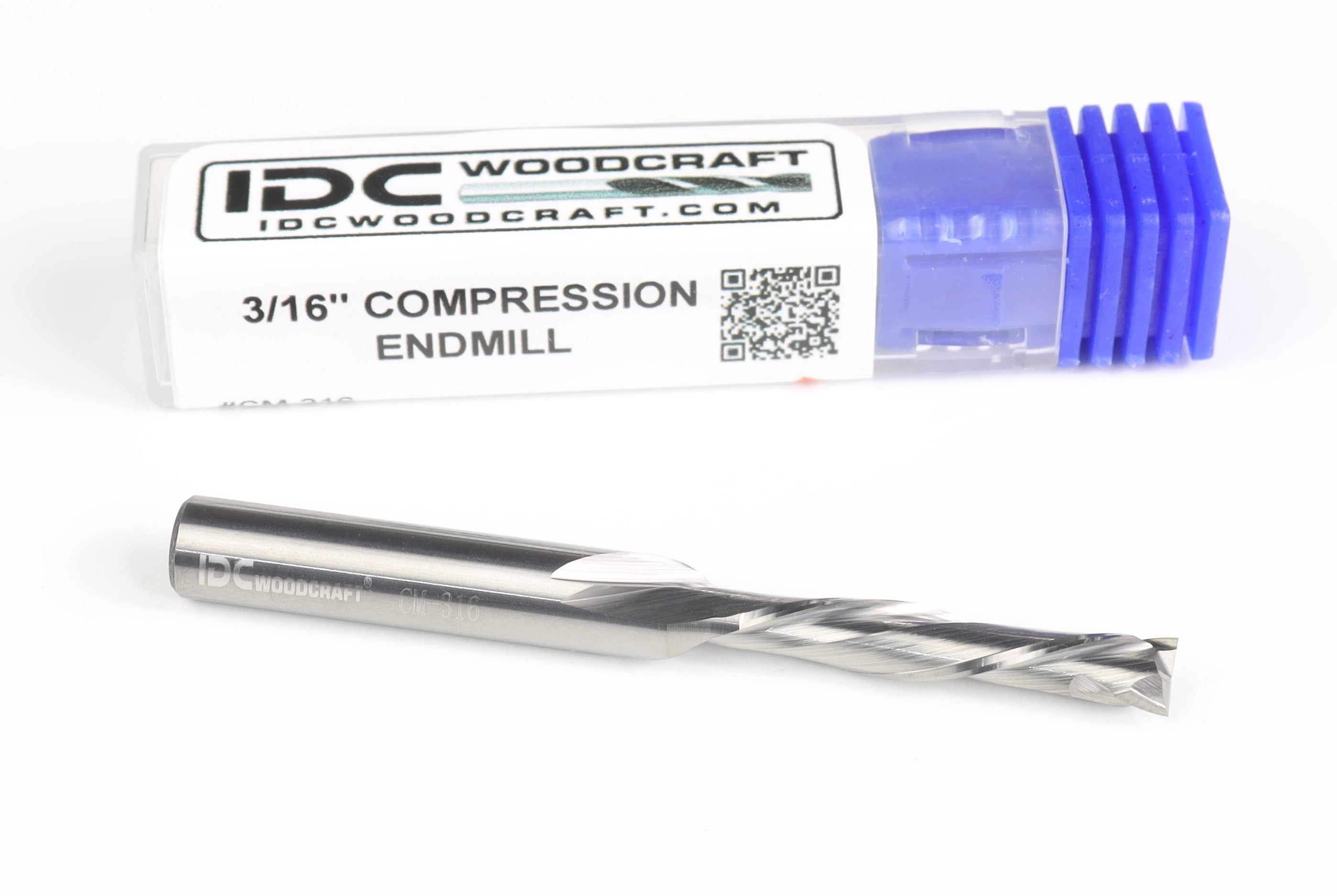

The 3/16" compression endmill bit is a unique bit for CNC routers. It allows you to cut out your project while leaving both the top and bottom edges of your project clean (eliminates tear-out).

  • Cut diameter: 3/16", Shank: 1/4", Length: 2.375"
  • Flutes: 2, Flute length: 1"
  • Up-shear length: 0.15"
  • Material: 100% carbide

Enhance Your Carve

3/16" Compression Bit For CNC Routers, 1/4" Shank

3/16" Compression Bit For CNC Routers, 1/4" Shank

$36.17 USD

Add this item

+

1/8" Compression Bit For CNC Routers, 1/8" Shank

1/8" Compression Bit For CNC Routers, 1/8" Shank

$29.72 USD

Add this item

+

1/4" Compression Bit For CNC Routers, 1/4" Shank

1/4" Compression Bit For CNC Routers, 1/4" Shank

$36.81 USD

Add this item

Key Details

Feeds And Speeds

Reviews

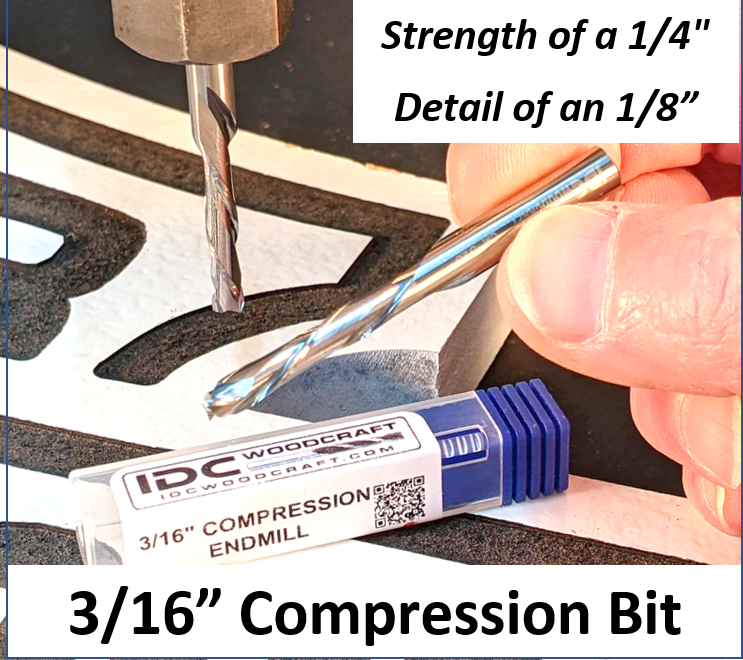

This premium 3/16" compression bit (also known as an up-down bit) is unique for a compression bit. It has the strength of a 1/4" yet can get almost the detail of a 1/8" compression bit.

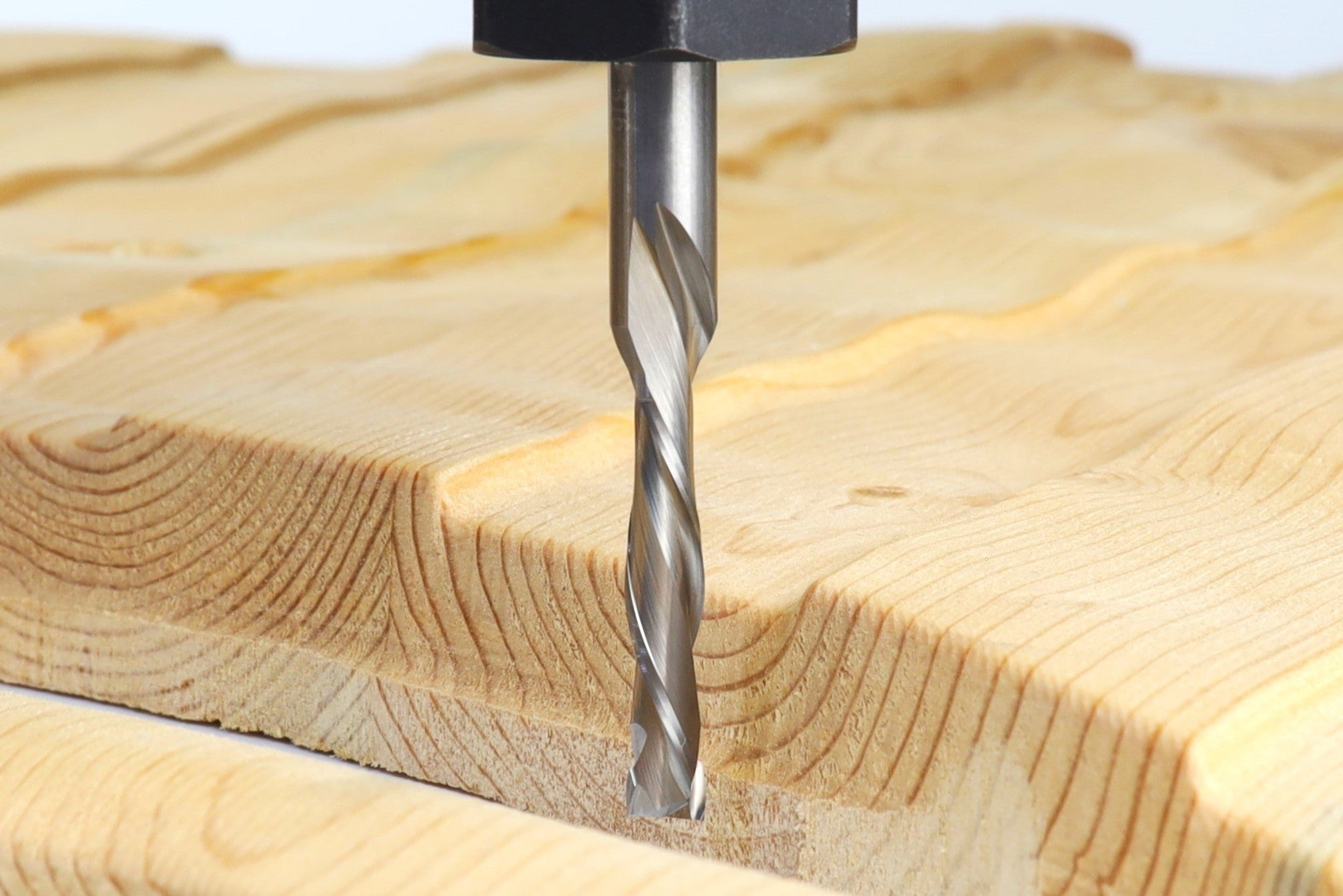

Compression bits allow you to cut out your CNC project while leaving both the top and bottom edges of your project clean (eliminates tear-out).

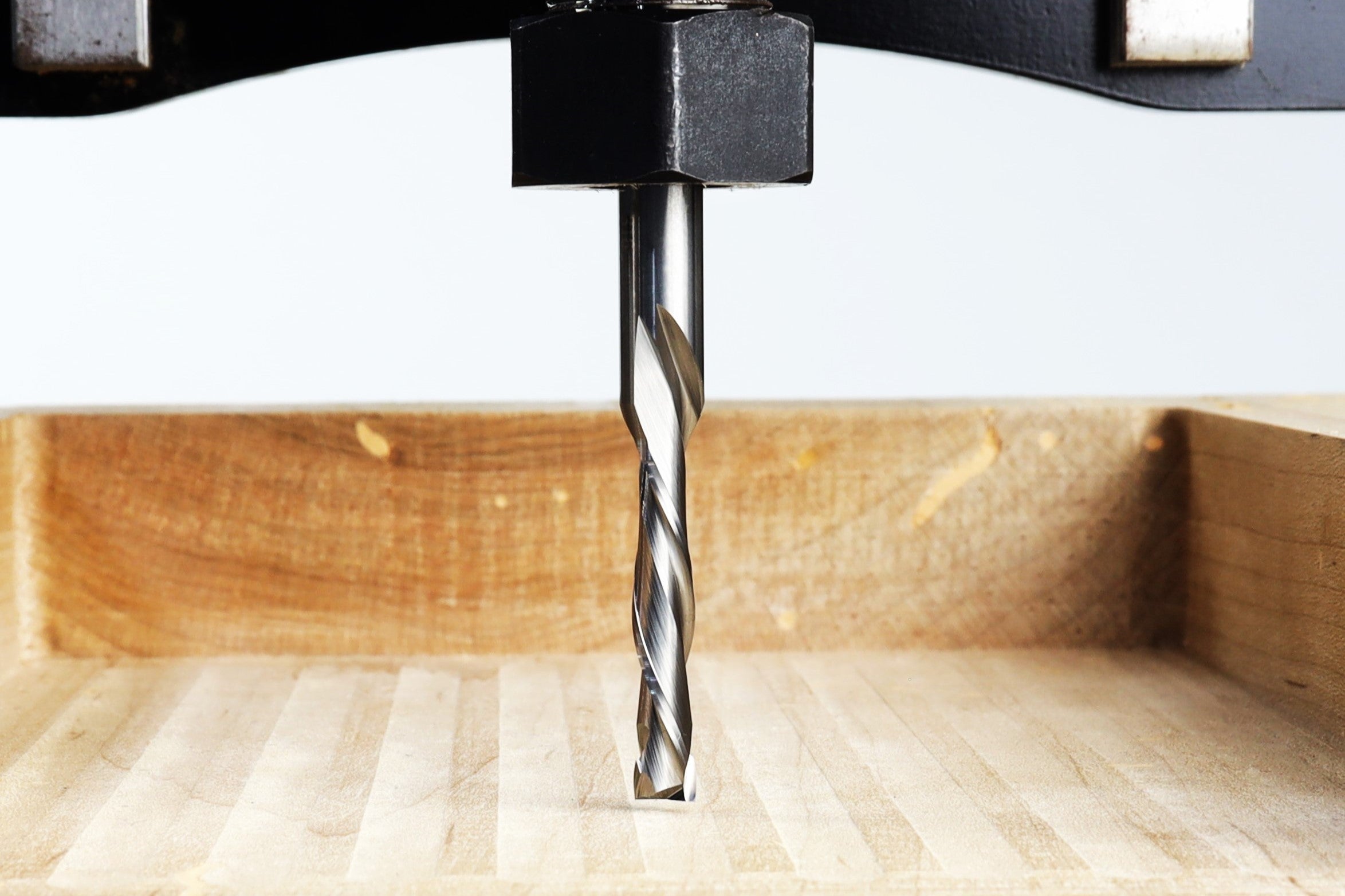

The 3/16" compression bit can cut the entire depth of 3/4" material in one pass.

Compression bits are commonly used in place of the up-cutting endmills and the down-cutting endmills. They are excellent for use when cutting out plywood, and other lumber at full depth on your CNC woodworking projects.

Item SKU: CM-316

Specs

  • Type: Compression endmill
  • Overall Length: 2"
  • Shank: ¼"
  • Cut diameter” 3/16 (0.1875)
  • Total Flute length: 1.0
  • Up cut length: 0.15
  • Down cut length: .9
  • Flutes: 2
  • Mat'l: Solid carbide

Settings

  • Feed rate: 75 inches per minute
  • Plunge rate: 35 inches per minute
  • Speed: 19,000
  • Depth per pass: 0.375
  • Stepover: 40%

For Vectric users, get the latest CNC router bit tool database by going to this page

For CNC’s with routers, refer to this PDF download feeds & speeds table

Customer Reviews

Based on 73 reviews
100%
(73)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
D
Dwight Ferguson
GOTO Bit

This is my "GOTO" bit I use in most of my carvings. It get in tight spaces and cleans up nicely. Use it for profile cutouts as well.

J
James Tingley

3/16" Compression Bit For CNC Routers, 1/4" Shank

D
David Price
3/16 compression bit

Great

A
Al Baffi
Great cutter

Good feedrates and perfect finish both top and bottom cut.

L
Lloyd

Absolutely love their bits
