Edge Rounding Bit Set 1/4 & 1/8 Radius Pointed Tip 1/4 Shank For CNC Routers

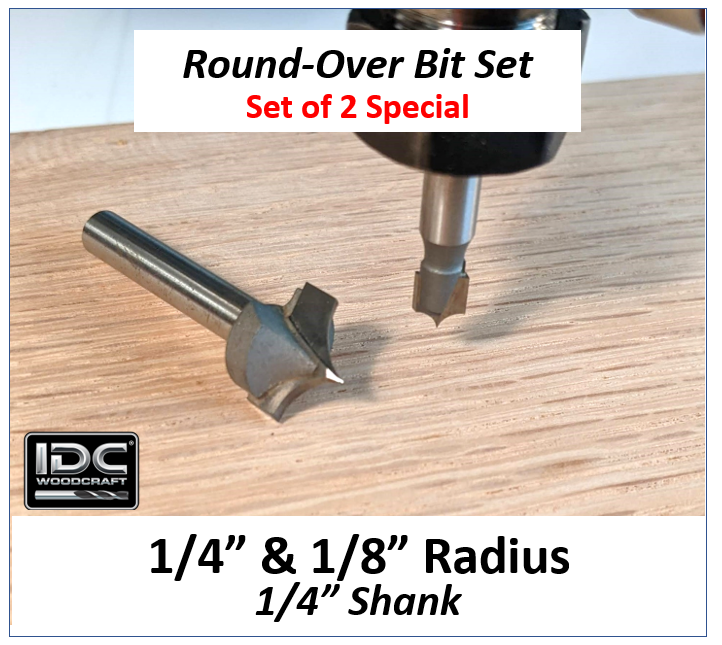

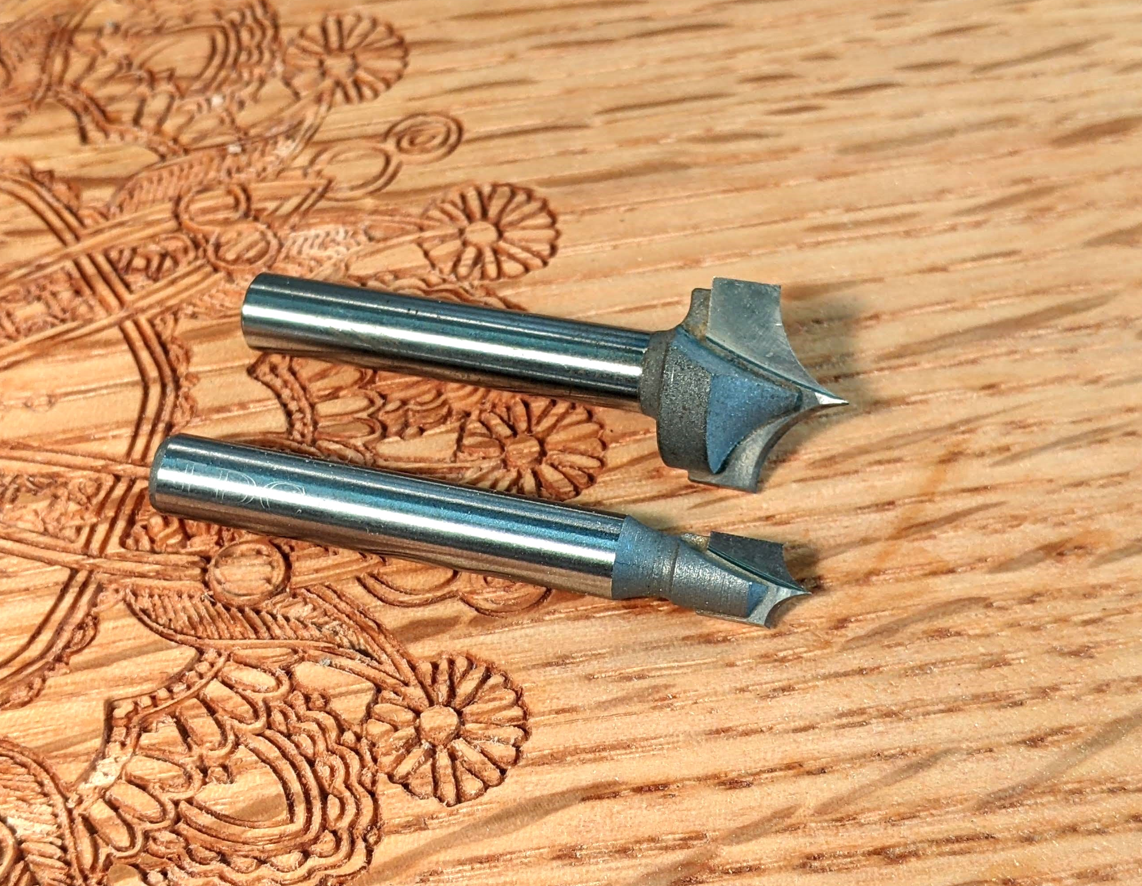

This set of 2 rounding bits contains a 1/8" round over bit and a 1/4" round over bit, both with 1/4" shanks for CNC routers.

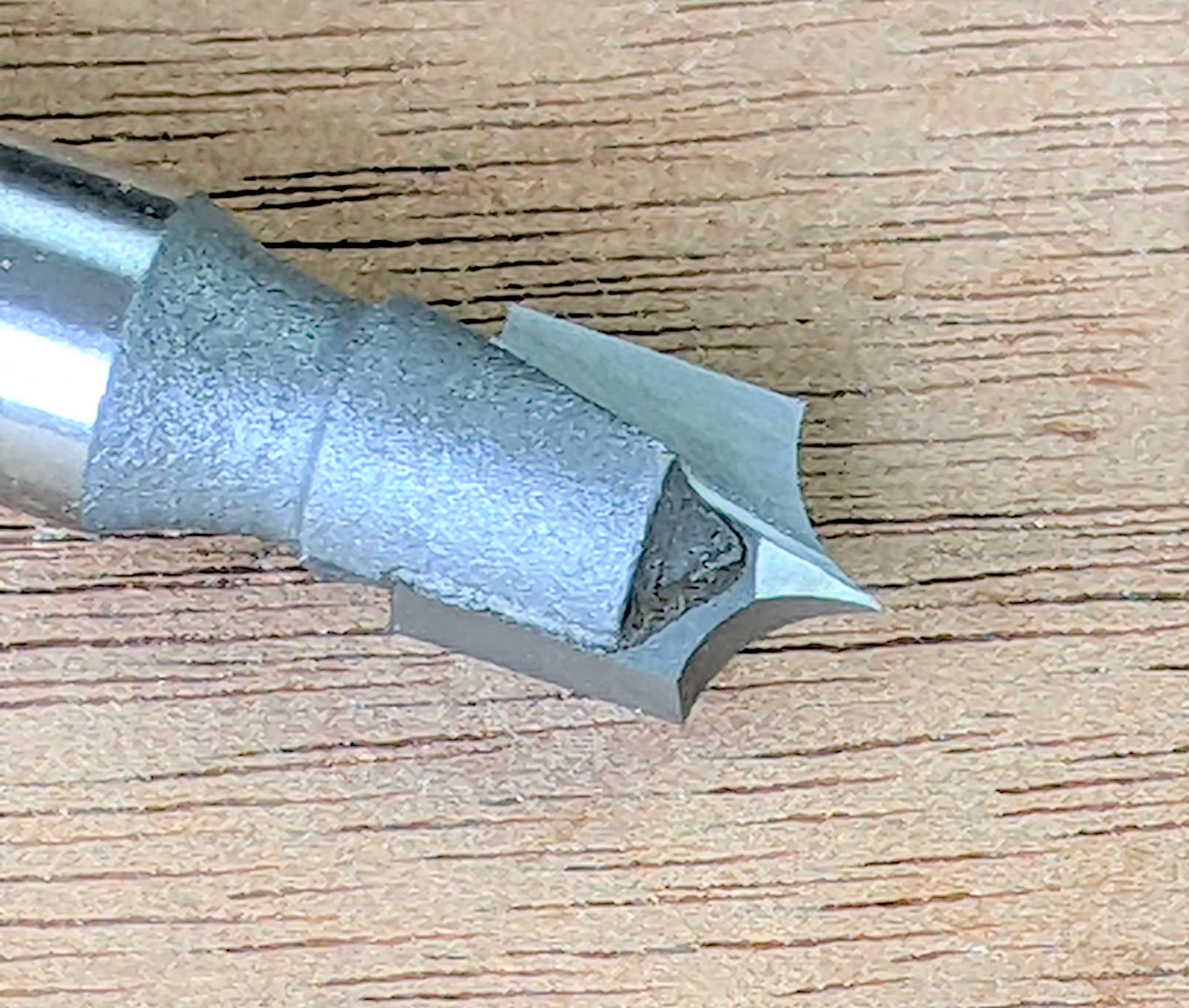

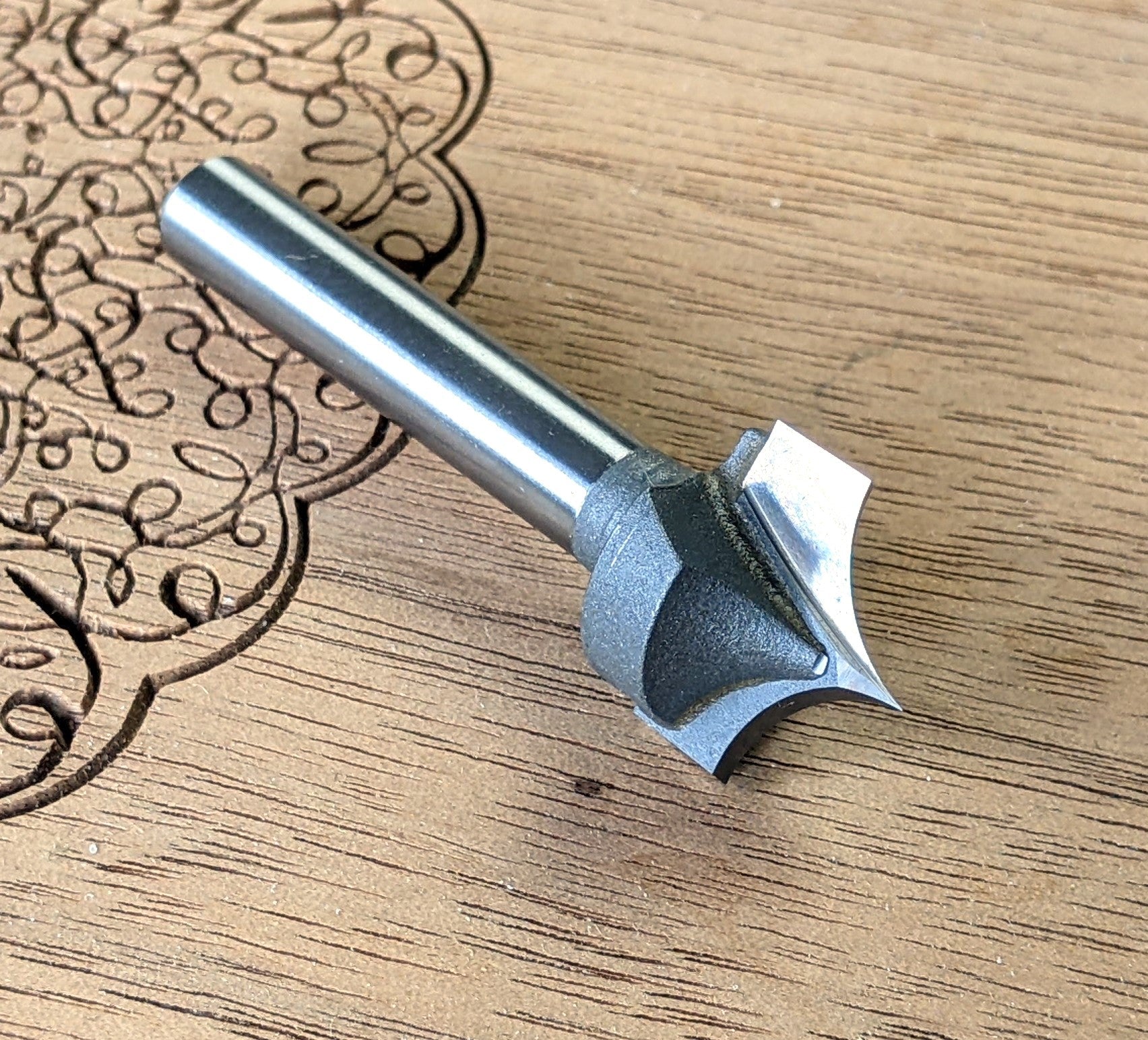

The IDC Woodcraft brand rounding bit (a.k.a. round over bit, rounding bit, radius bit) is designed to simplify toolpath setup. It comes to a point, instead of having a flat at the bottom, so you don't have to mess with complicated offsets.

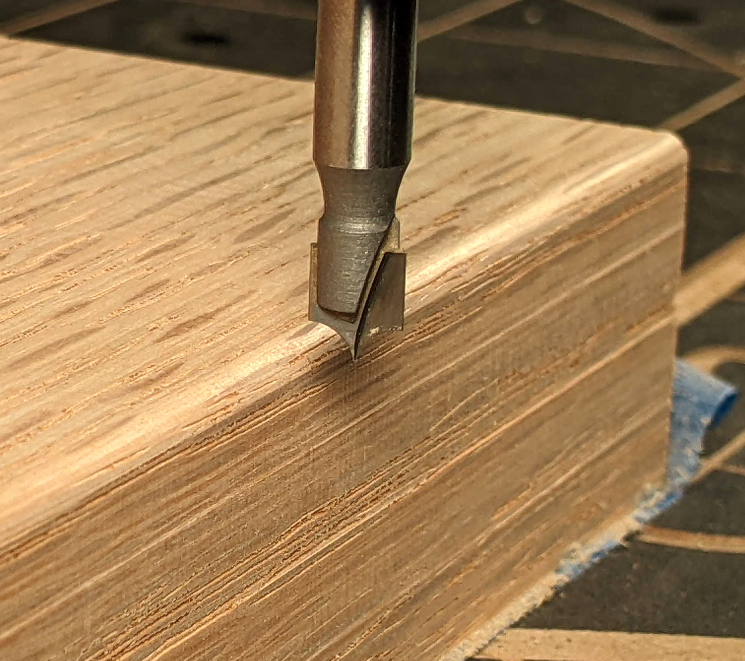

This completely eliminates the dealing with machining allowances to setup in your software. NO OFFSETTING OF THE BIT IS REQUIRED!! Just set it up to run on a profile line at 0.12" deep and you end up with a perfect radius that requires minimal smoothing.

Rounding bits create a radius edge on your CNC woodworking projects. The router bit with 1/4" shank adds elegance to your smaller CNC woodworking projects and gives them the extra character to make them pop. Round the borders of signs, or letters. It doesn't matter, as long as you have 1/8" to play with on your project, this cutter will add a gentle softness to your CNC projects.

$56.77 USD

$60.55 USD

Availability: In Stock

Quantity:

Description

This set of pointed tip 2 rounding bits contains a 1/8" round over bit and a 1/4" round over bit, both with 1/4" shanks for CNC routers.

The IDC Woodcraft brand rounding bit (a.k.a. round over bit, rounding bit, radius bit) is designed to simplify toolpath setup. It comes to a point, instead of having a flat at the bottom, so you don't have to mess with complicated offsets.

This completely eliminates the dealing with machining allowances to setup in your software. NO OFFSETTING OF THE BIT IS REQUIRED!! Just set it up to run on a profile line at 0.12" deep and you end up with a perfect radius that requires minimal smoothing.

Rounding bits create a radius edge on your CNC woodworking projects. The router bit with 1/4" shank adds elegance to your smaller CNC woodworking projects and gives them the extra character to make them pop. Round the borders of signs, or letters. It doesn't matter, as long as you have 1/8" to play with on your project, this cutter will add a gentle softness to your CNC projects.

RB-SET-48

Specs

For the 1/8" rounding CNC router bit.

  • Shank: 1/4" (6.35mm)
  • Flutes: 2
  • Length: 2" (55mm)
  • Radius: 1/8" from the center of the bit
  • Rounding flute length: 0.1"
  • Total Flute Length: 0.375
  • Material: Tungsten carbide brazed insert on 4140 body

Settings for your CNC router

  • Feed rate: 60 inches per minute
  • Plunge rate: 20 inches per minute
  • Speed (rpm) 17,000
  • Depth per pass 0.095"
  • Stepover: 20%

For the 1/4" rounding CNC router bit.

  • Shank: 1/4" (6.35mm)
  • Flutes: 2
  • Length: 2" (55mm)
  • Radius: 1/4" from center of bit
  • Material: Tungsten carbide brazed insert on 4140 body

Settings for your CNC router

  • Feed rate: 60 inches per minute
  • Plunge rate: 20 inches per minute
  • Stepover: 6-8%
  • Depth per pass: 0.250"
  • Speed (rpm) 17,000

For Vectric users, get the latest CNC router bit tool database by going to this page

For CNC’s with routers, refer to this PDF download feeds & speeds table
