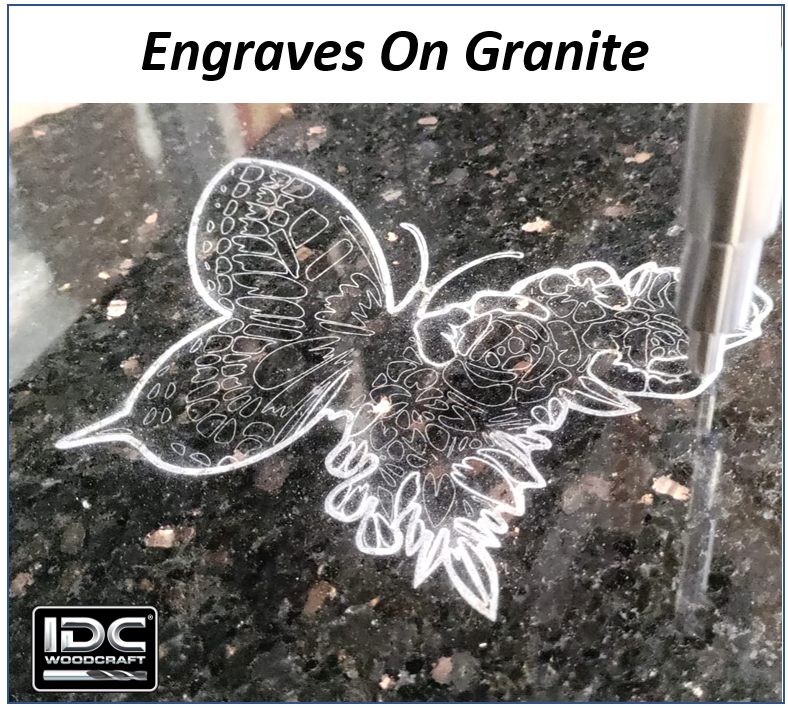

diamond drag engraver by idc woodcraft on granite

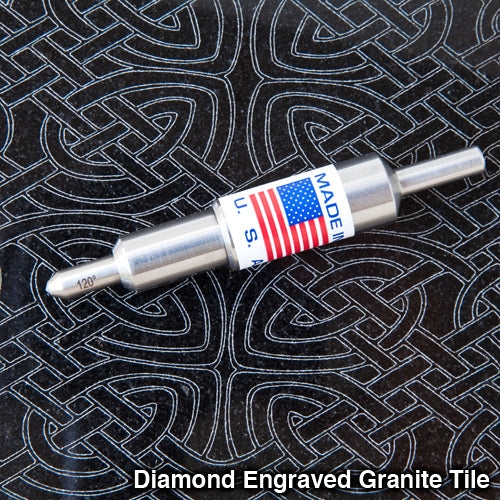

widget works diamond engraver to carving on granite tile

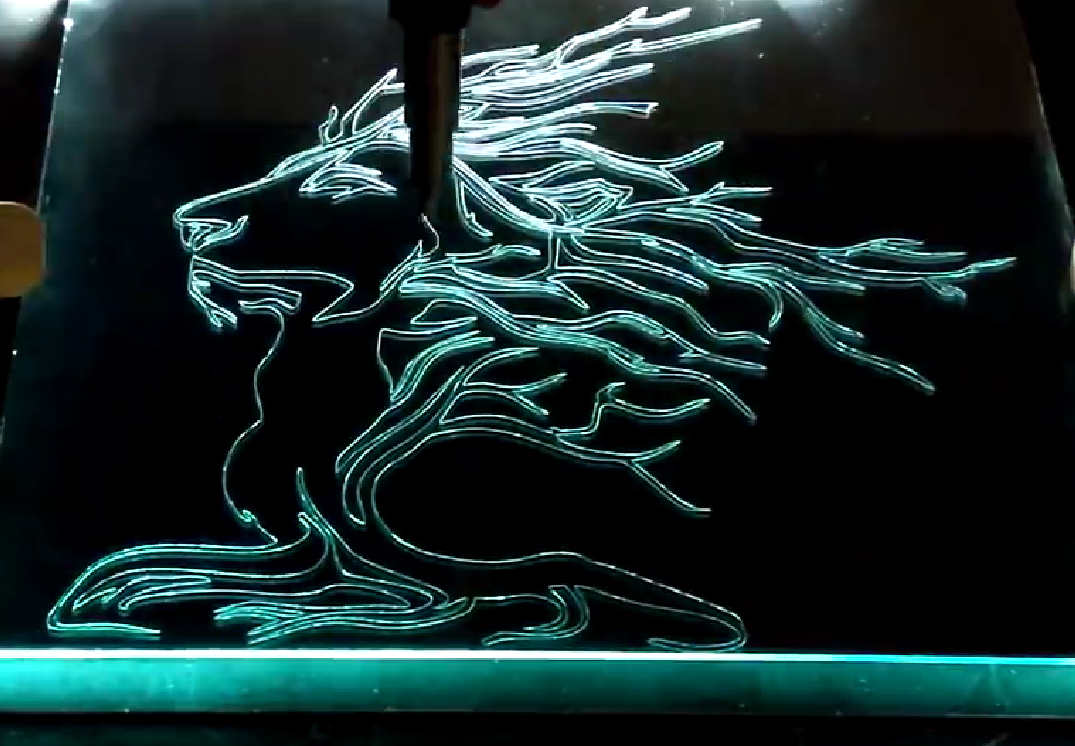

widget works diamond engraver to engraving lions head on cnc router
widget works diamond engraver to engrave glass marble and granite cnc router projects
widget works diamond engraver to engrave glass marble and granite cnc router projects
widget works diamond engraver to engrave glass marble and granite cnc router projects
widget works diamond engraver to engrave glass marble and granite cnc router projects
Stunning Detail Diamond Drag Engraving Bit for CNC Routers, 1/4" Shank
widget works diamond engraver to engrave glass marble and granite cnc router projects
diamond drag engraver by idc woodcraft on granite
widget works diamond engraver to carving on granite tile
widget works diamond engraver to engraving lions head on cnc router
widget works diamond engraver to engrave glass marble and granite cnc router projects
widget works diamond engraver to engrave glass marble and granite cnc router projects
widget works diamond engraver to engrave glass marble and granite cnc router projects
widget works diamond engraver to engrave glass marble and granite cnc router projects

Stunning Detail Diamond Drag Engraving Bit for CNC Routers, 1/4" Shank

Availability: In Stock - Hurry only 11 left!

$179.99 USD

Quantity:

Create stunningly precise detailed engravings with the Widgetworks diamond drag engraving bit on multiple materials, including plastics (like acrylic), brass, aluminum, steel, glass, and even granite (see the image).

Unlike the standard diamond drag bits, you'll find on Amazon, this bit is built for industrial use...Literally. It is used by major companies like Campbell's Soup, General Motors, and even NASA!

Comes complete with everything you need to start diamond drag engraving including"

  • Floating-head engraving bit with 120 degree diamond tip
  • High-pressure and low-pressure engraving springs

Enhance Your Carve

Stunning Detail Diamond Drag Engraving Bit for CNC Routers, 1/4" Shank

Stunning Detail Diamond Drag Engraving Bit for CNC Routers, 1/4" Shank

$179.99 USD

Add this item

+

90 Deg Diamond Drag Engraving Bit Tip Replacement (Industrial Grade)

90 Deg Diamond Drag Engraving Bit Tip Replacement (Industrial Grade)

$23.99 USD

Add this item

+

120 Deg Diamond Drag Engraving Bit Tip Replacement (Industrial Grade)

120 Deg Diamond Drag Engraving Bit Tip Replacement (Industrial Grade)

$23.99 USD

Add this item

Key Details

Feeds And Speeds

Reviews

Create stunningly precise detailed engravings with your CNC router with the Widgetworks diamond drag engraving bit on multiple materials, including plastics (like acrylic), brass, aluminum, steel, glass, and even granite (see the image).

Unlike the standard diamond drag bits, you'll find on Amazon, this bit is built for industrial use...Literally. It is used by major companies like Campbell's Soup, General Motors, and even NASA!

This bit can be used on any CNC machine that moves in X, Y & Z, like CNC routers, CNC milling machines, or CNC plasma cutters.

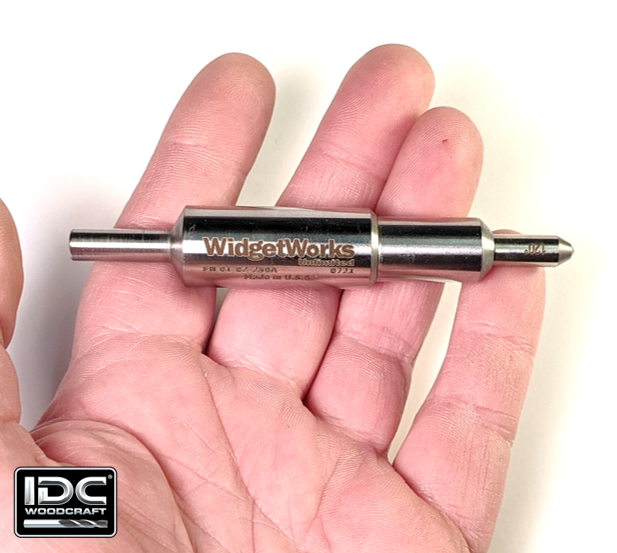

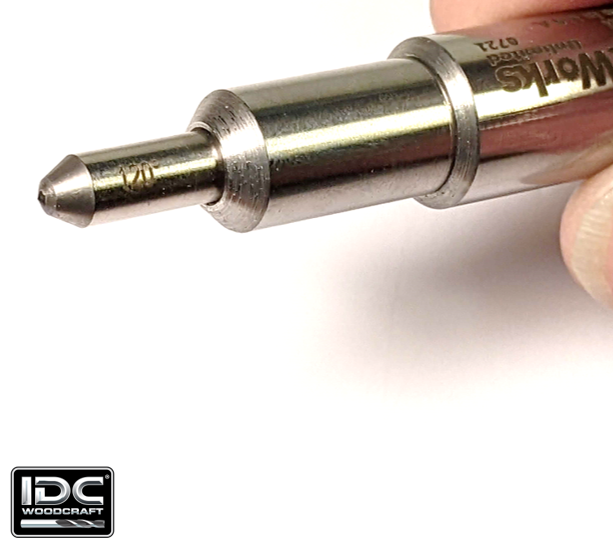

This diamond drag engraving bit has a 1/4 shank and comes with a spring-loaded 120 degree diamond tip.

Instead of rotating and cutting like an end mill, the bit engraves with the spindle TURNED OFF. The spring-loaded, "floating head" style bit applies constant pressure on the diamond tip.

As your CNC machine drags the diamond tip on your CNC project, it creates very precise, permanently engraved lines on the surface of the project.

The bit is designed to compensate for warped material and tables that are not perfectly flat. Engraving pressure is adjustable to match the hardness of the material you are working on.

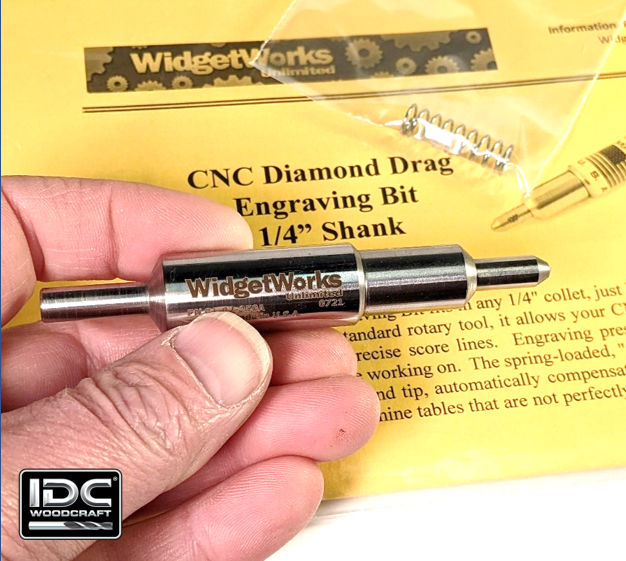

Comes complete with everything you need to start diamond drag engraving including"

  • Floating-head engraving bit with 120 degree diamond tip
  • High-pressure and engraving springs
  • Low-pressure engraving springs
  • And detailed directions on how to create your cut files, set your bit height / Z=0 level, and recommended feed/speed rates.

We recommend using the 90 degree diamond tip (Sold Separately) for engraving coated materials, such as lacquered brass or anodized aluminum name tags.

The 90 degree tip is also recommended for engravings very fine small details, such as tiny lettering, and thin materials ( < 0.030" thick.)





Item SKU: ED-14

Diamond Drag Engraving Bit Technical Specs:

  • Shank Diameter: 1/4"
  • Bit Length: 3 3/4"
  • Engraved Line Width: ~ 0.005"
  • Blade: 120 Degree Tip (Included) or 90 Degree Tip (Sold Separately)

Settings are provided with the diamond drag engraving bit

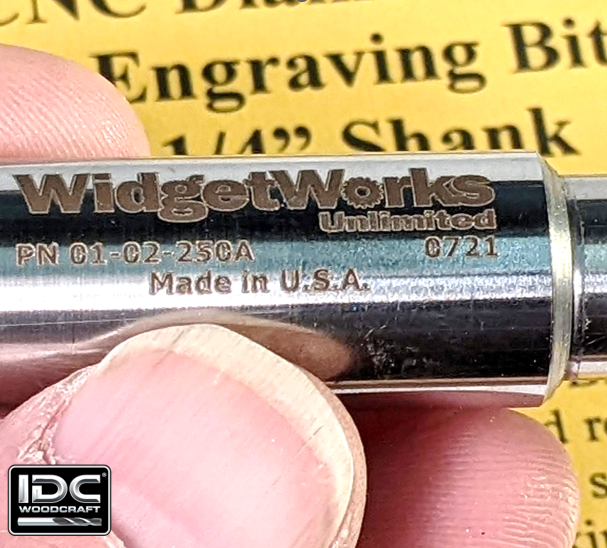

Made in the USA

For Vectric users, get the latest CNC router bit tool database by going to this page

For CNC’s with routers, refer to this PDF download feeds & speeds table

Customer Reviews

Based on 9 reviews
100%
(9)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
L
Larry Welch
Stocking

Can wait to see what happens but nothing yet

m
mike barnes
Diamond Drag Engraving Bit

this bit works great

J
Jerry H.
WidgetWorks Diamond Drag

The WidgetWork diamond drag bit comes with detailed instructions for settings that works flawlessly. Bit seems a bit pricey, but replacement bits are reasonably priced.
As a novice beginner, messing around my first attempt using the 120 degree tip on glass turned out better than expected. IDC has rocked with quick service filling my orders. Highly recommend IDC 100%!

B
Bobby Proctor
Incredible service, above and beyond! 🙏🤩

Wow, I was so delighted with every aspect of my purchase. Garett and the team go above and beyond all my expectations! 110% would recommend! Thanks so much guys.

R
Robert Guertin
Great tool

Does a nice job with the finest detail. My other one was good but not as good as this one.
