If you’re tired of spending hours while you wait on your CNC router to remove material from your CNC woodworking projects, then you’ve come to the right bit.
Welcome to the aptly nicknamed "BEAST", a 1/4" hyper-speed CNC router bit from IDC Woodcraft, the ultimate solution for lightning-fast material removal.
With a ¼ shank, the “BEAST” falls into the roughing bit category. Even so, this bit will blow your mind with its unparalleled speed and material removal. Keep in mind that the "BEAST" is not designed to deliver clean cuts. Its sole purpose is speed, and it excels at it!
Featuring a staggering 3/4" depth of cut per pass, an 100ipm plunge rate, 80% step-over, (it is actually capable of feed rates as high as 800 inches per minute on floor-model machines) the "BEAST" is the undisputed champ when it comes to rapid material removal from your CNC router woodworking projects.
Designed with a thicker core and a shorter flute length, the "BEAST" CNC router bit is built to withstand rigorous workloads.
The ZrCN composite coating increases tool life significantly. Coating specs: Hardness of 2500 Vickers hardness, coating thickness of 1 to 4 microns, friction coefficient of 0.3, maximum service temperature of 1000° F (550° C)
But it's not just about saving time; it's about extending the life of your other CNC router bits as well. By employing the "BEAST" as your workhorse for major material removal, you'll extend the lifespan of your regular CNC router bits. Let them handle the finishing touches while the "BEAST" handles the heavy lifting.
Let the “BEAST” out of its cage on your CNC woodworking projects and watch how much time you’ll save!
Item SKU: BEAST
Loading Specs and Settings
For Vectric, Fusion 360, Carbide Create and Carveo users, get the latest CNC router bit tool database by going to this page
For CNC’s with routers, refer to this PDF download feeds & speeds table
I can't believe I waited so long to order one. It works great. Going 100 inches per minute with a 1 inch deep cut was pretty awesome until it hit a really hard knot and broke the bit. But Garrette replaced it for free and now I'm going to slow things down if there are any knots in my hardwood.
I have been involved with a bathroom remodeling and haven’t had a chance to try it. ☹️ I am looking forward to using all the bits soon.
Thanks

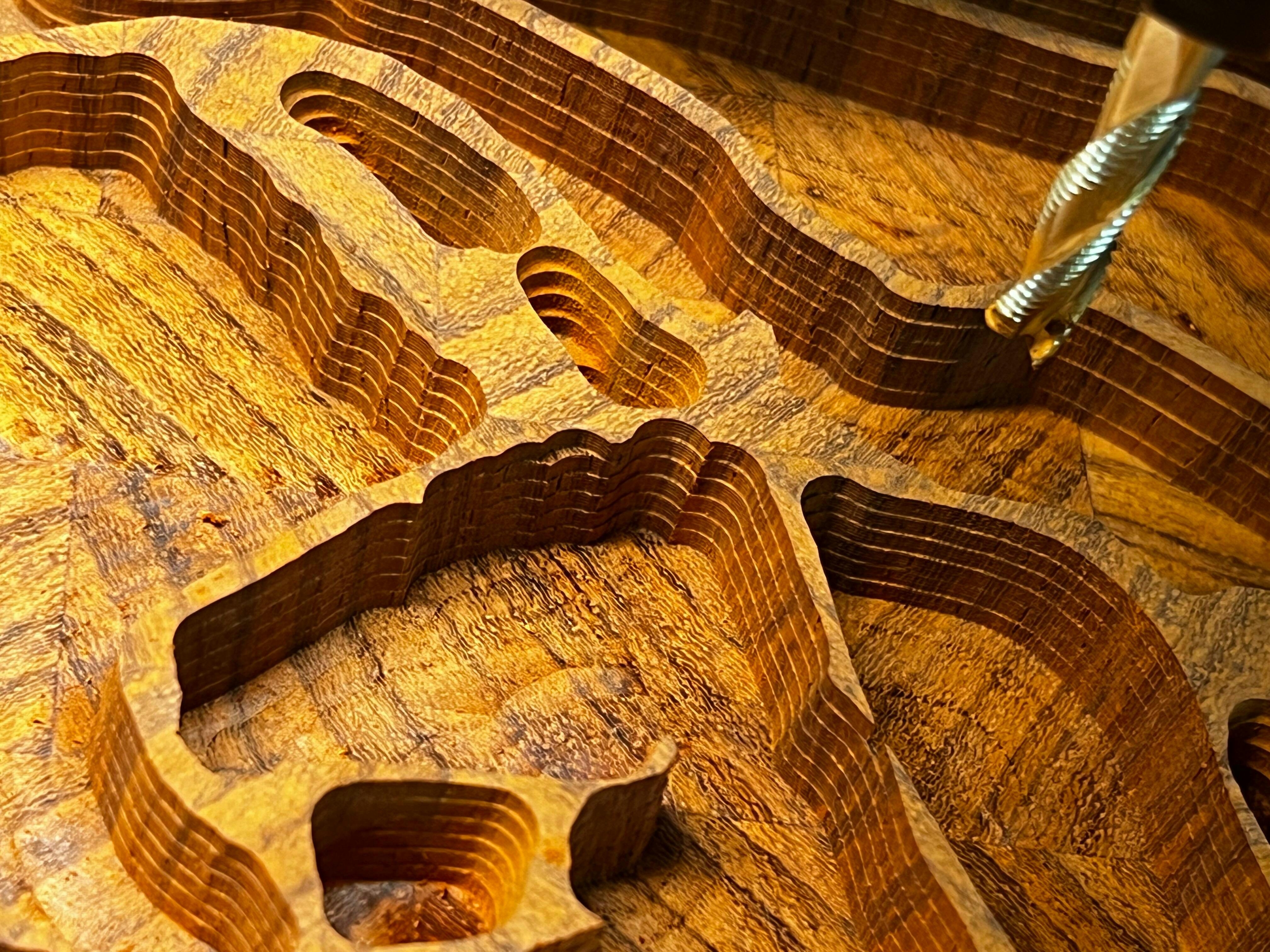

Used it to clear an area in 1.5” thick walnut slab. It was so aggressive that it pulled the slab off of the waste board and tried to spin it around. Caused some damage and destroyed the walnut. I’m afraid to use it again.

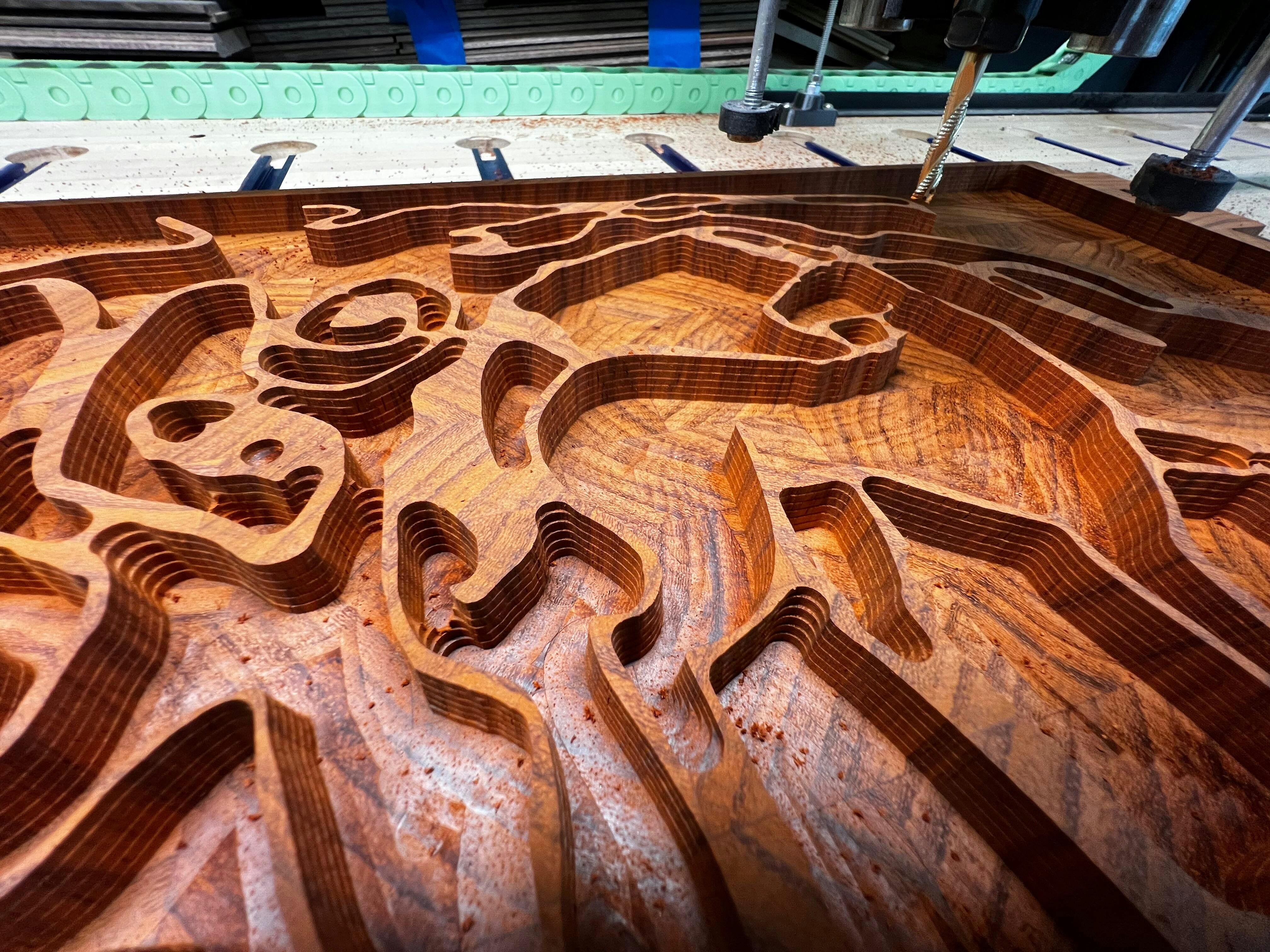

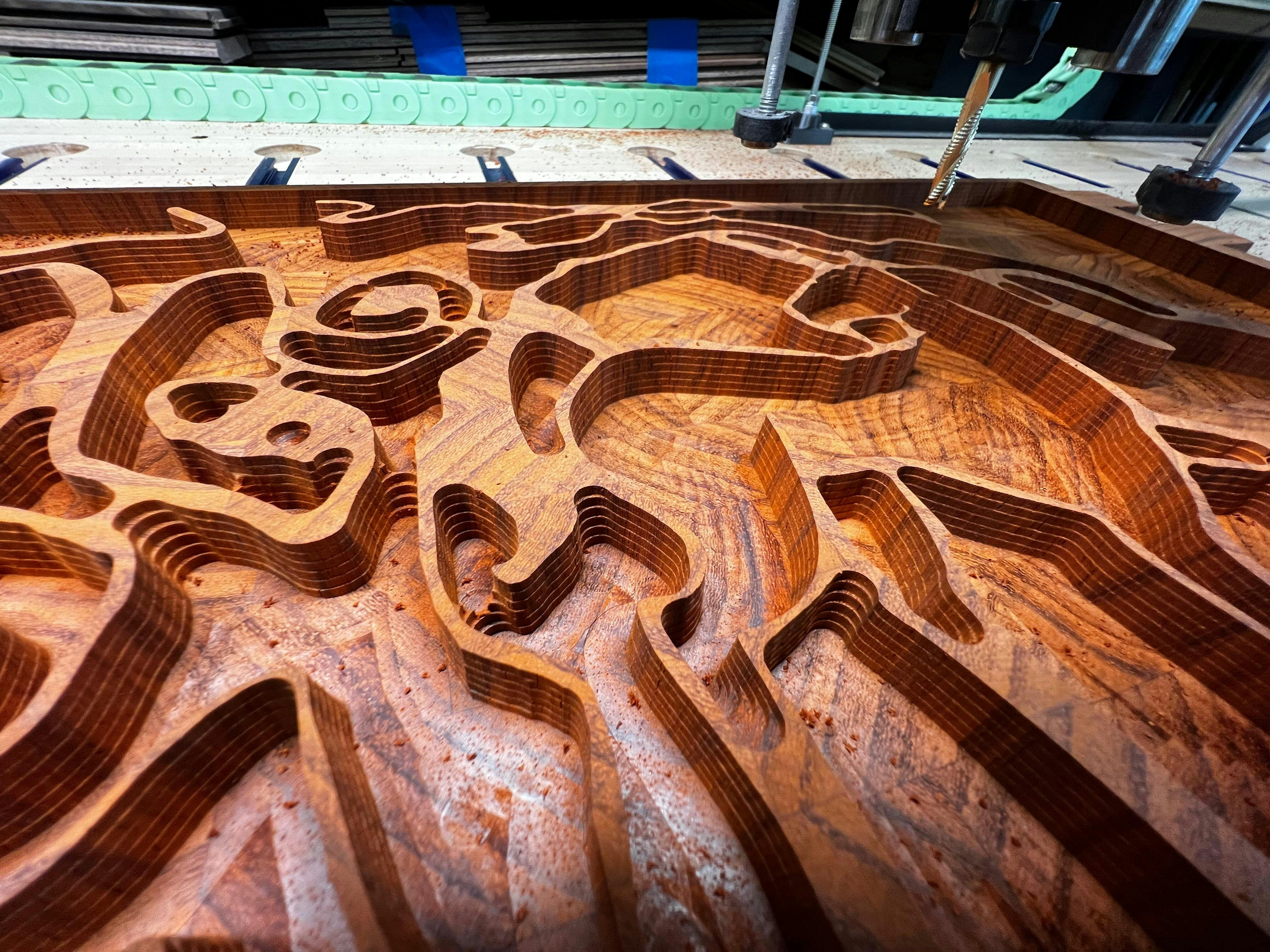

This bit makes short work of roughing passes for inlays. I just set it snd “almost” forget it. I stay in the shop but as long as everything sounds good I just let this thing go to town!
