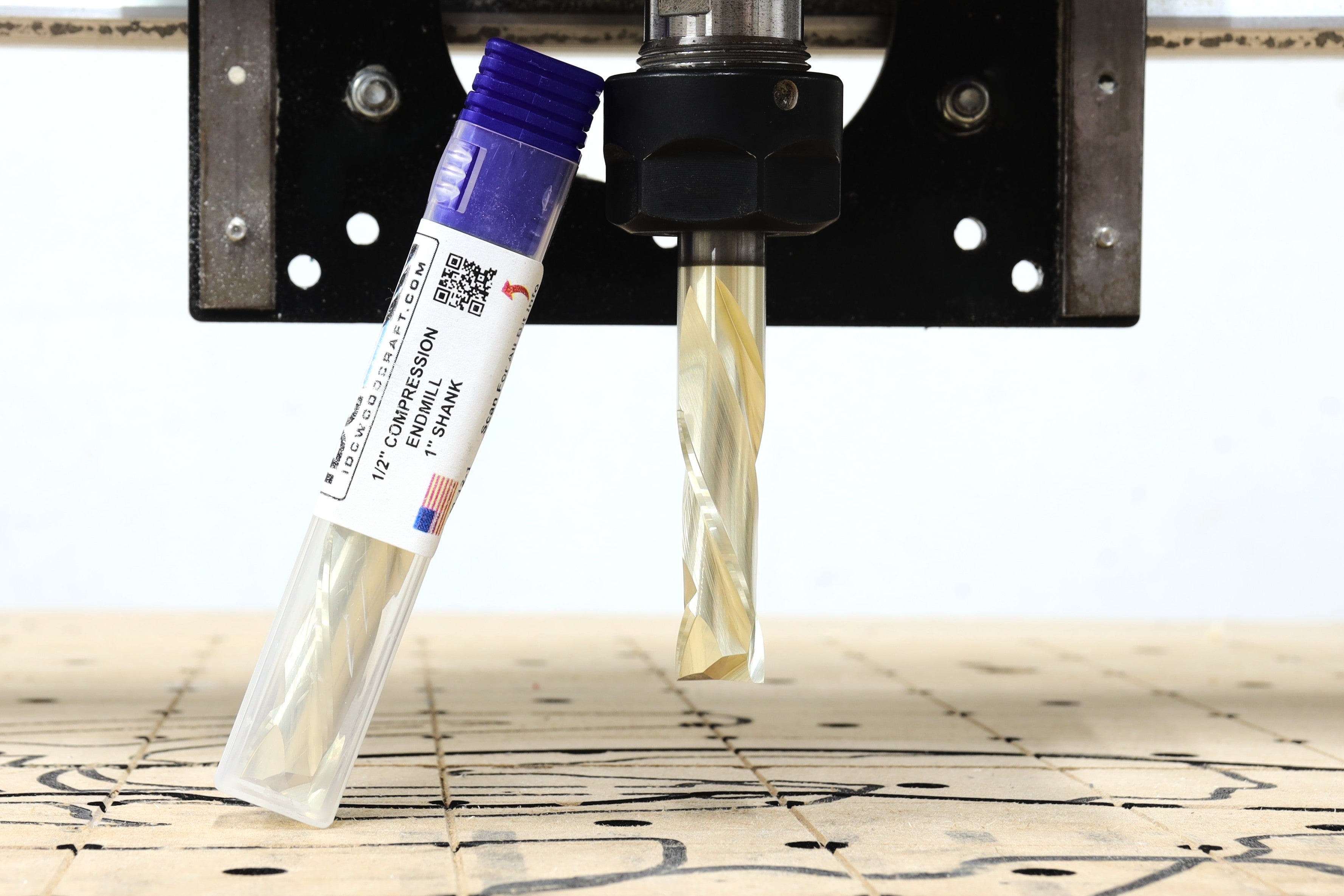

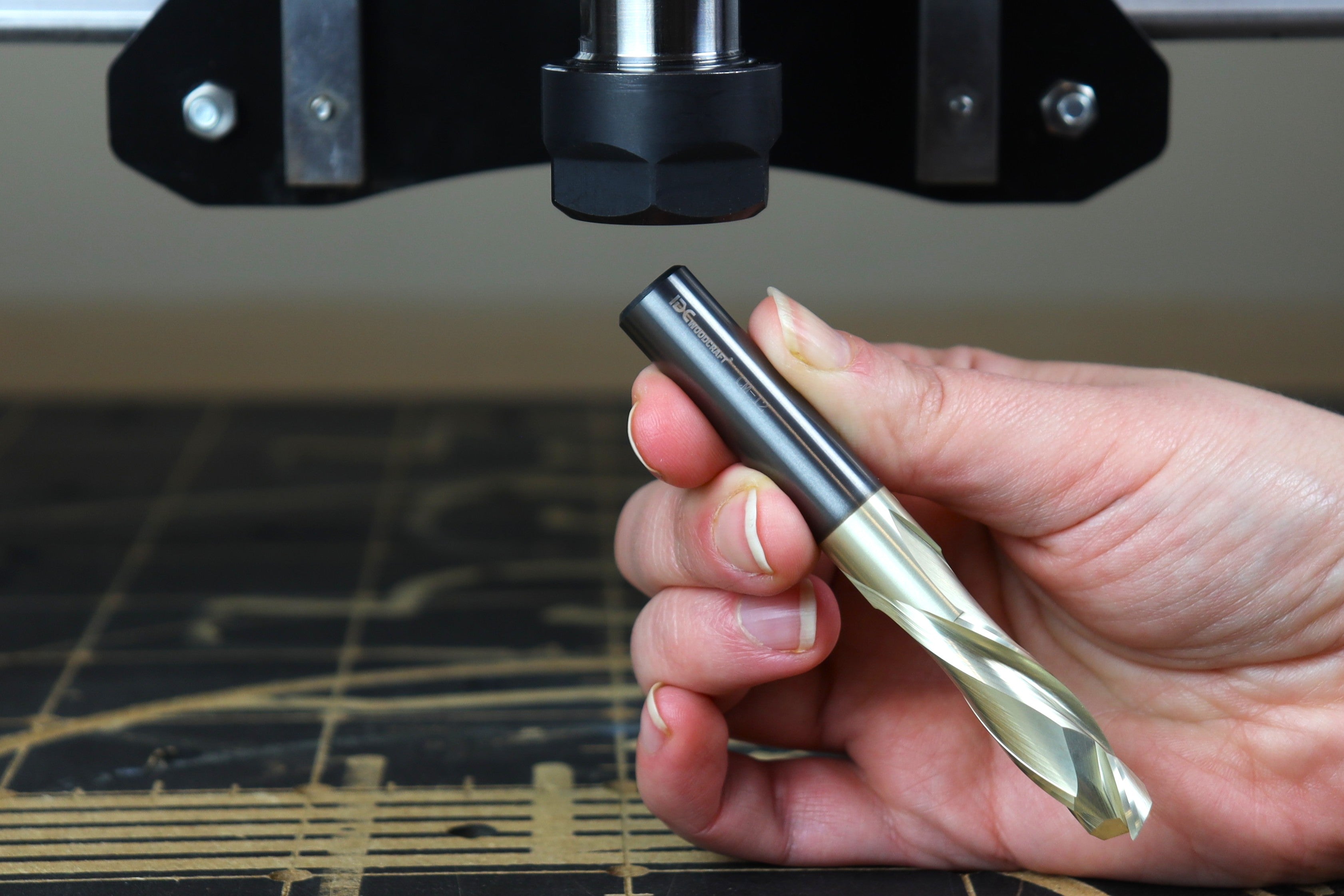

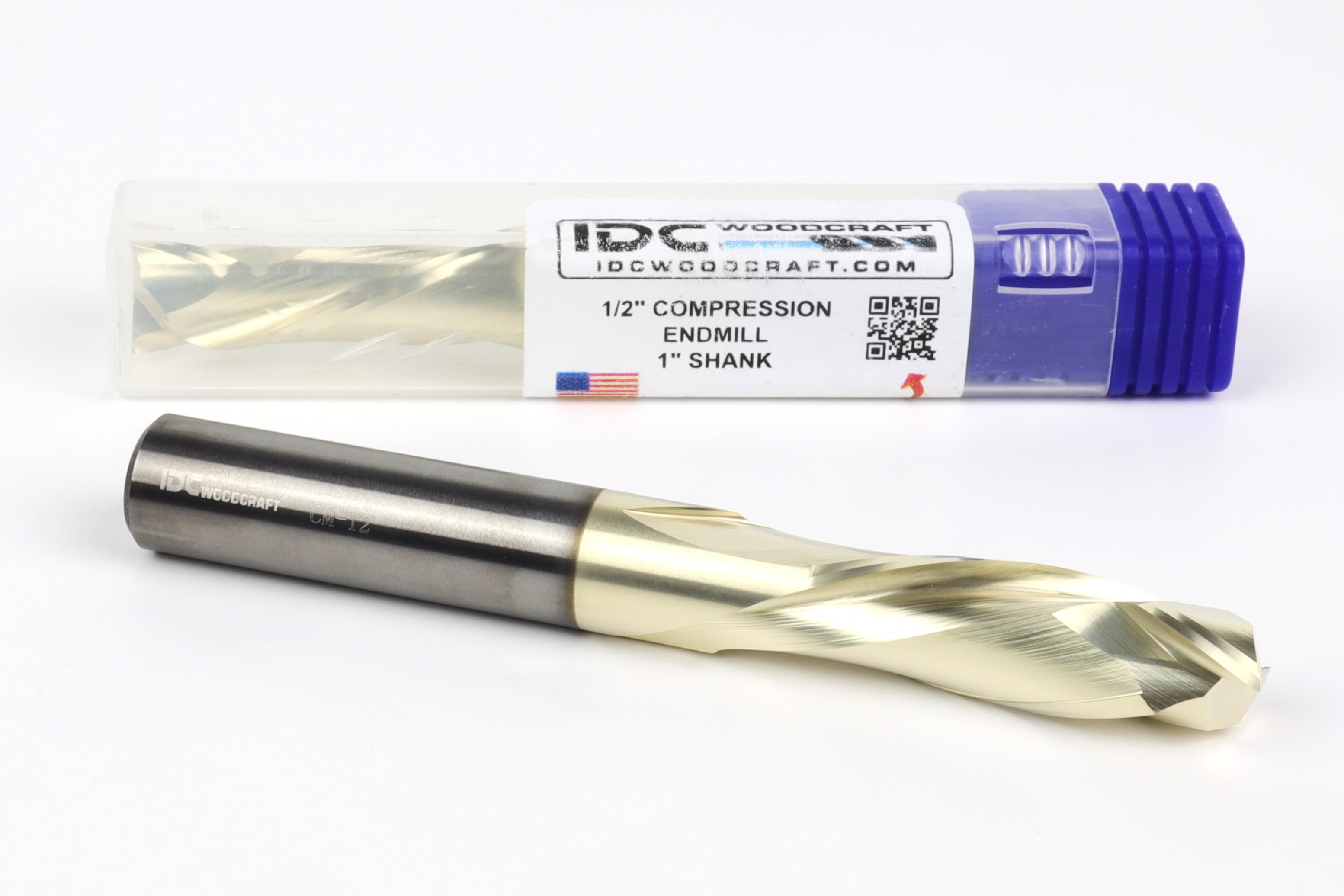

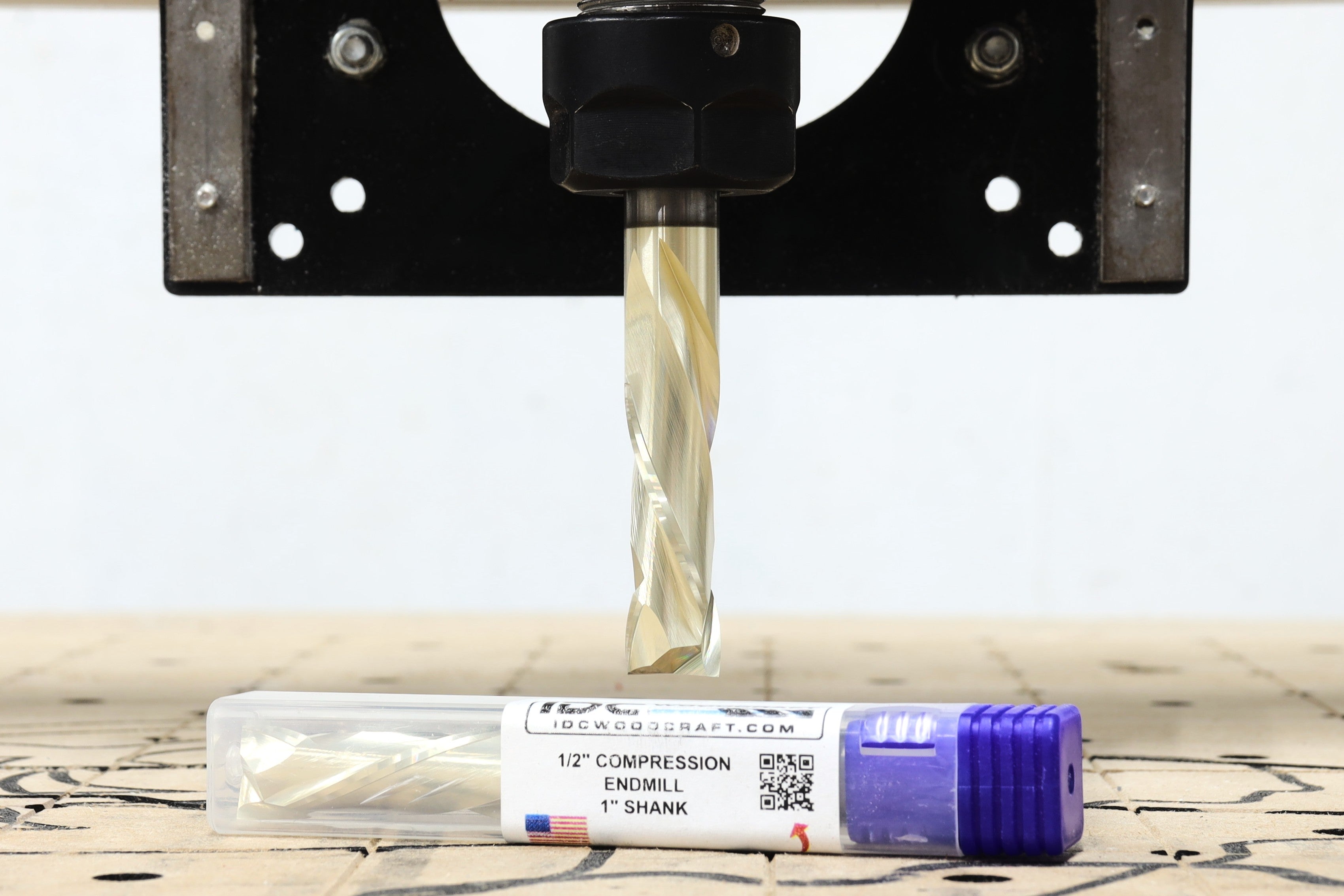

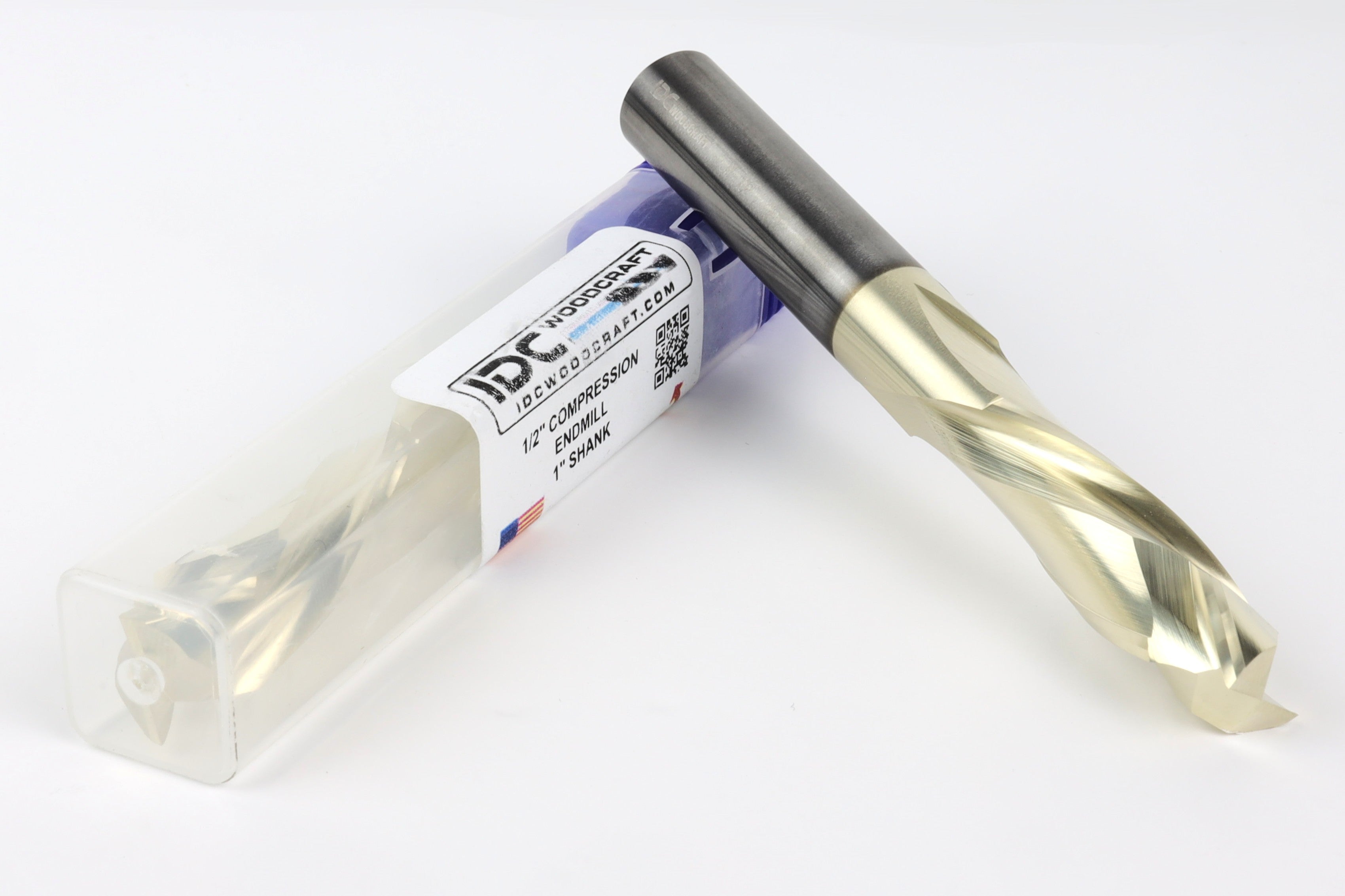

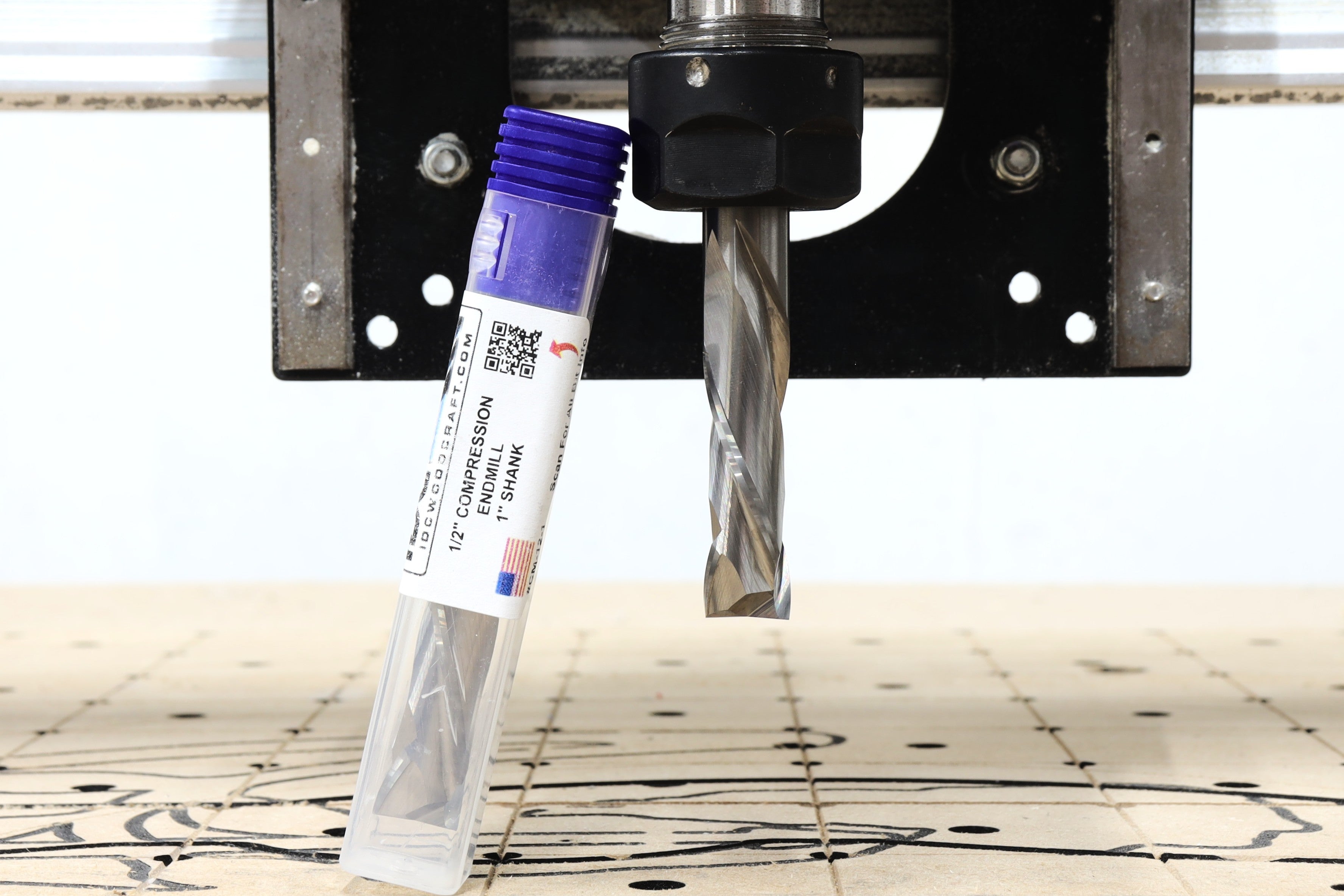

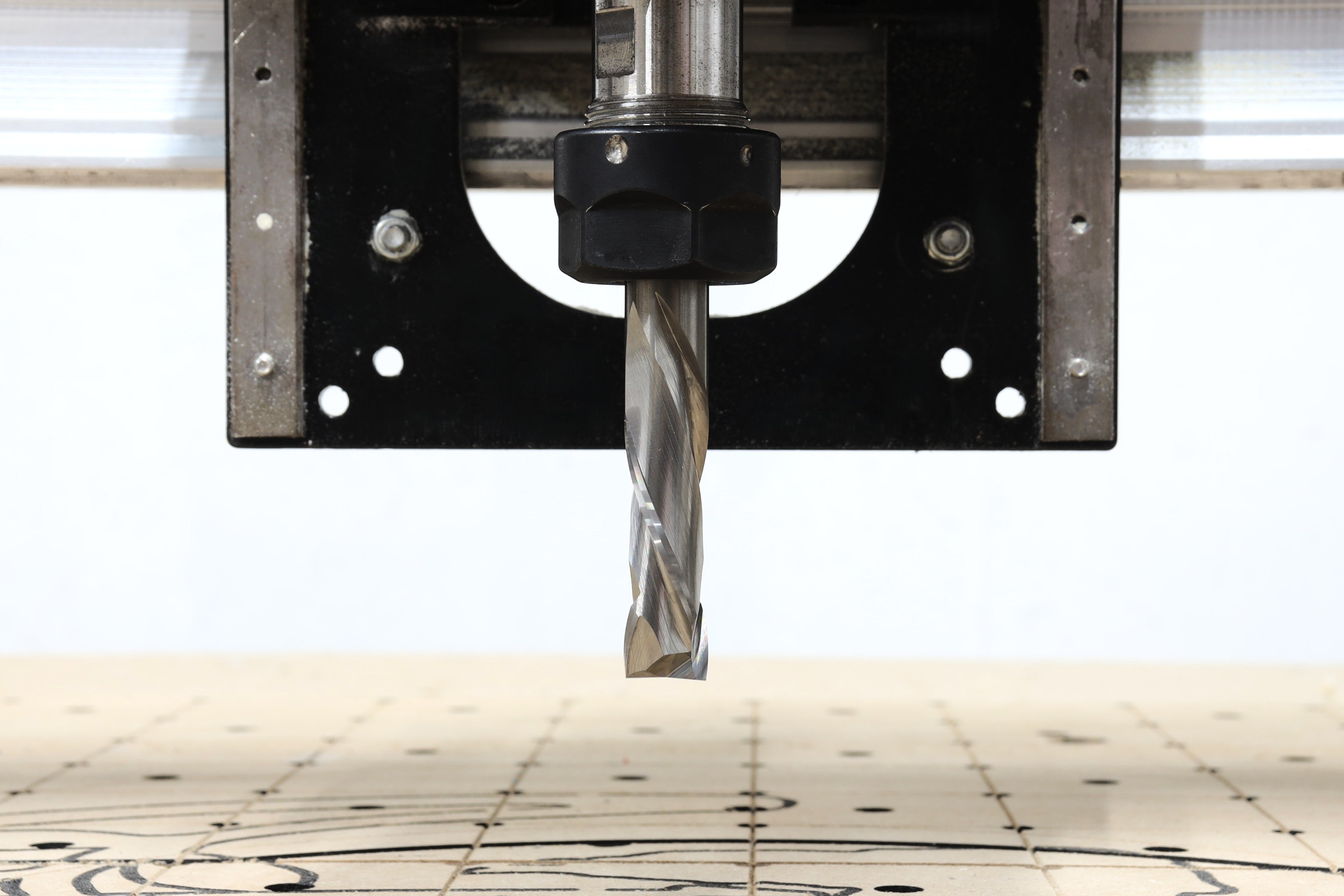

When you need to move through thicker material quickly without sacrificing edge quality, reach for the IDC Woodcraft 1/2" Compression Bit for CNC Routers with a 1/2" shank.
Also known as an up-down CNC bit or compression end mill, this cutter combines up-cut and down-cut geometry to help produce clean edges on both the top and bottom of your workpiece. That makes it an excellent choice for plywood, hardwood panels, and other materials where tear-out on either face can mean extra sanding—or a project that simply doesn't look as good as it should.
With the ability to cut through material up to 1.5" thick in a single pass when your CNC setup and material allow, this 1/2" compression bit is a serious workhorse for efficient CNC woodworking.
Traditional spiral bits generally force material fibers in one direction.
An up-cut bit provides excellent chip evacuation but can pull fibers upward and leave tear-out along the top edge. A down-cut bit pushes fibers downward for a cleaner top surface but can leave the bottom edge rough.
A compression bit combines both cutting directions.
The lower portion of the cutting edge uses up-cut geometry while the upper portion uses down-cut geometry. When properly engaged in the material, the cutting forces are directed toward the center of the workpiece, helping leave cleaner top and bottom edges in the same cut.
That makes compression bits especially useful when both faces of your finished project matter.
The larger 1/2" cutting diameter and 1/2" shank provide the rigidity needed for demanding CNC woodworking operations.
This bit is capable of cutting the entire depth of material up to 1.5" thick in a single pass, depending on your material, machine rigidity, workholding, and cutting parameters.
For the right CNC setup, that means:
It's particularly useful when cutting thicker sheet goods or production parts where efficiency and edge quality are equally important.
If you regularly cut plywood on your CNC router, a compression bit belongs in your tooling lineup.
Plywood's alternating layers can make it particularly susceptible to splintering and tear-out. Compression geometry helps control those fibers from both directions, making this bit an excellent choice for full-depth plywood profile cuts.
Use it for:
The 1/2" compression bit is commonly used in applications where you might otherwise need both a 1/2" up-cut end mill and a down-cut end mill.
Instead of choosing which face gets the cleaner edge, compression geometry lets you tackle both at once.
That can mean fewer tool changes, less edge cleanup, and a more efficient CNC workflow—especially when processing sheet goods or batches of parts.
Cutting Diameter: 1/2"
Shank Diameter: 1/2"
Bit Type: Compression / Up-Down Spiral
Maximum Material Thickness: Up to 1.5" for single-pass cutting, application dependent
Primary Applications: Profiling, full-depth cutouts, plywood and panel processing
A compression bit combines up-cut and down-cut cutting geometry in a single CNC router bit. This directs the cutting action toward the center of the material, helping reduce tear-out on both the top and bottom surfaces.
Compression bits are also commonly called up-down bits, up/down spiral bits, or compression end mills. These terms refer to the combination of upward and downward cutting geometry on the same tool.
Yes. Plywood is one of the best applications for a compression bit because the opposing cutting geometry helps reduce splintering and tear-out on both faces of the plywood.
Yes. This bit is capable of cutting through material up to 1.5" thick in one pass, provided your CNC machine, workholding, material, feeds and speeds, and overall setup are appropriate for a full-depth cut.
A 1/2" cutter provides additional rigidity and is well suited to deeper cuts, larger projects, and applications where faster material removal is important. Smaller compression bits may be preferable when working with tighter inside corners or more detailed geometry.
Compression geometry is specifically designed to reduce tear-out on both faces, but proper cutting depth, feeds and speeds, material quality, and machine setup still affect the final result. Both sections of the compression geometry need to engage the material correctly to receive the full benefit.
An up-cut bit can be a better choice when aggressive material removal and maximum chip evacuation are the priority and the top edge of the material will be finished later. When you need a clean finished edge on both sides, the compression bit is usually the better choice.
When you're cutting thicker material, cabinet components, plywood, or production parts, you shouldn't have to choose which side of the project gets the clean edge.
The IDC Woodcraft 1/2" Compression Bit gives you the rigidity and cutting geometry needed to machine efficiently while keeping both faces of your project looking their best.
It's the kind of workhorse bit you'll be glad is in your rack when clean edges and faster full-depth cutting matter.
Item SKU: CM-12
Loading Specs and Settings
For Vectric, Fusion 360, Carbide Create and Carveo users, get the latest CNC router bit tool database by going to this page
For CNC’s with routers, refer to this PDF download feeds & speeds table
Get feeds and speeds in your shop by scanning this QR code with the IDC Woodcraft App!
