Flatten your spoilboard, level slabs, and clean up uneven materials with a surfacing bit designed to run faster, cut harder, and last longer.

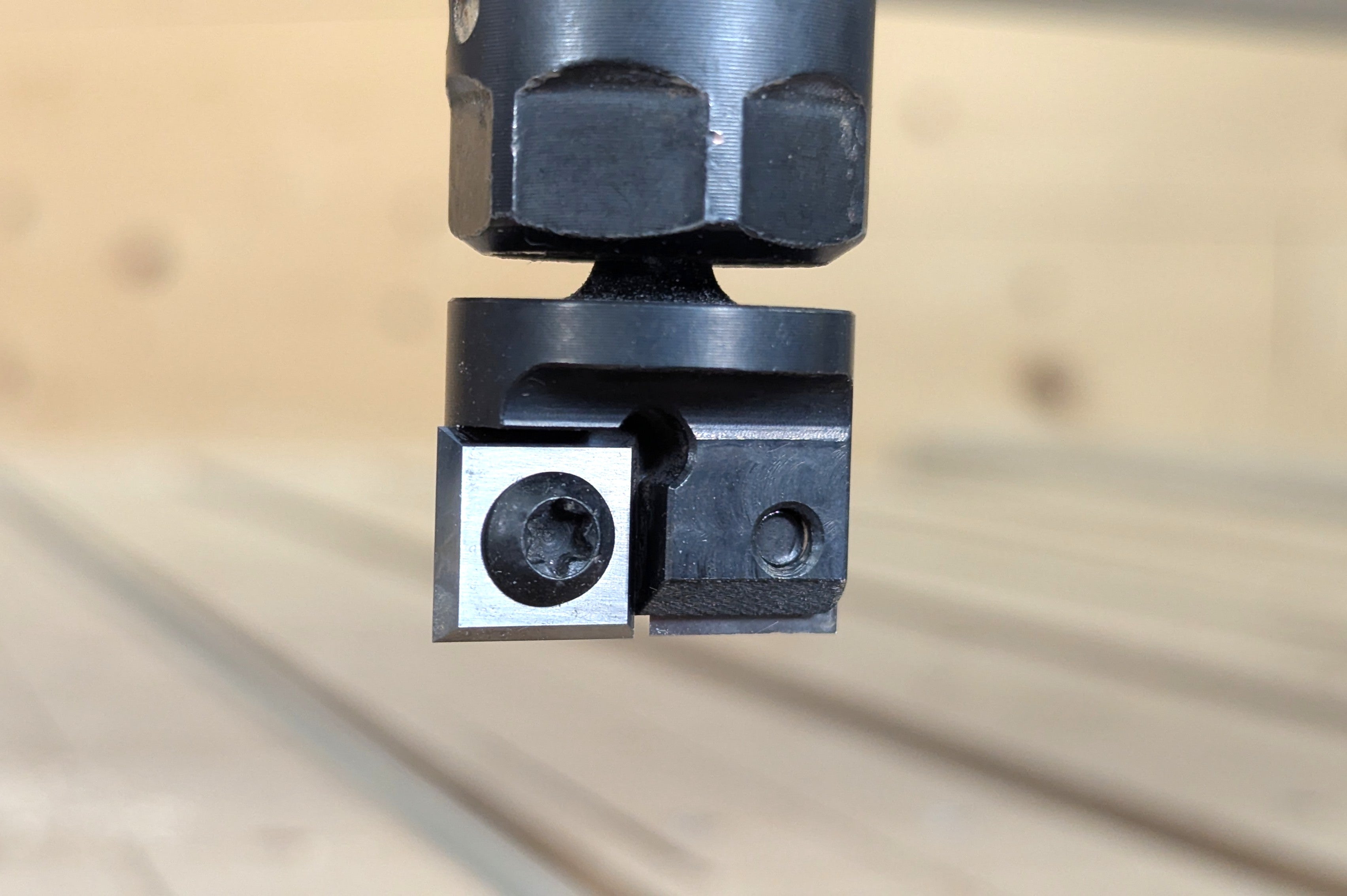

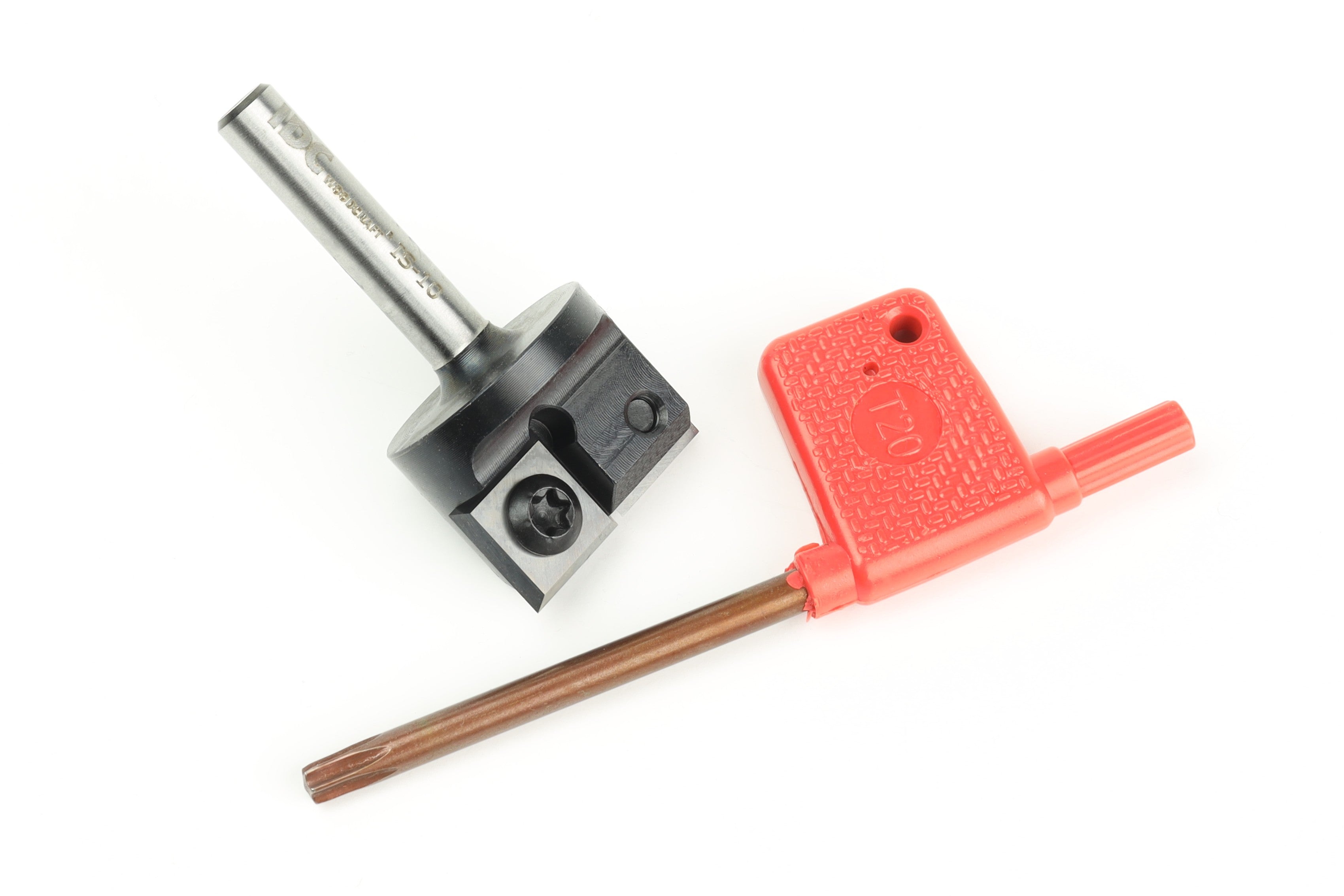

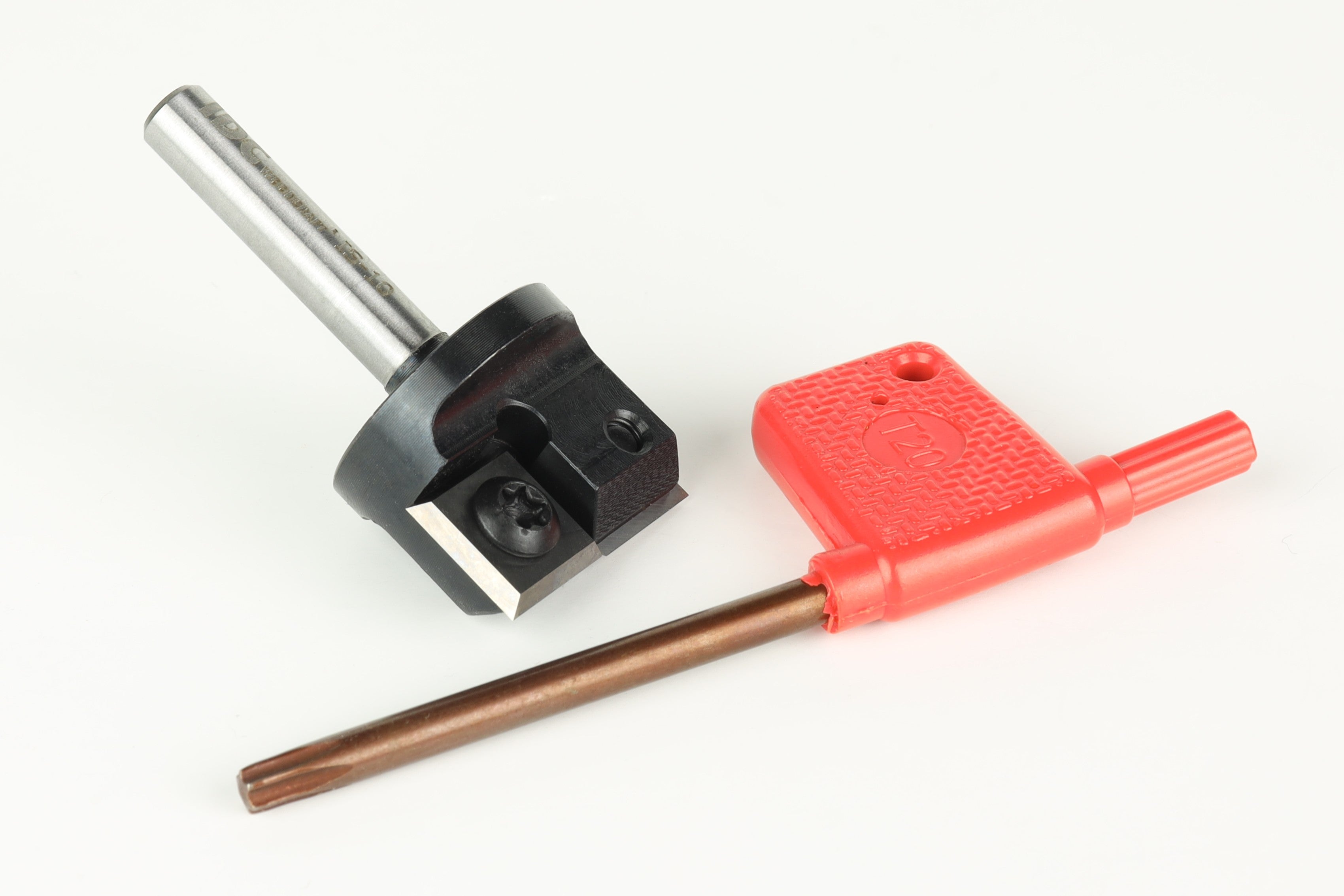

This 1" indexable insert surfacing bit uses replaceable FK08 square carbide inserts secured with M4x6 T20 grade 12 screws to maintain consistent cutting performance without replacing the entire tool. With two inserts and four cutting edges per insert, you get up to 8 usable cutting edges before needing replacements.
Built for CNC routers with 1/4" collets, this tool bridges the gap between hobby-level tooling and production-grade performance.
A flat spoilboard is the foundation of every accurate CNC project.
When your surfacing bit dulls or runs inconsistently, you get:
This insert-style surfacing bit solves that by giving you:
It’s not just about flattening material—it’s about restoring confidence in every project you run.
Two FK08 square carbide inserts provide balanced cutting, improved chip evacuation, and consistent material removal compared to single-insert designs.
Each insert has 4 usable edges, giving you up to 8 total cutting edges before replacement—dramatically extending tool life.
These square inserts feature sharp corners (no radius), producing clean, consistent cuts while supporting aggressive chip loads.
Built from hardened 4140 steel for durability and stability, with a protective coating to resist wear and corrosion.
Precision-balanced for smooth operation and reduced vibration, tested up to 30,000 RPM for stable high-speed cutting.
Runs at 17,000 RPM, significantly faster than traditional brazed surfacing bits—allowing increased productivity and cleaner passes.
Designed to handle higher chip loads with consistent chip formation, making it ideal for efficient spoilboard resurfacing and slab flattening.
Fits standard 1/4" collets used on most hobby, prosumer, and professional CNC routers.
Materials
This surfacing bit is designed specifically for:
Not to be used for:
At IDC Woodcraft, tools aren’t selected based on trends—they’re chosen based on real CNC use.
Every product is evaluated with one goal:
helping you create better projects with less frustration.
This surfacing bit reflects that standard:
I’ve always believed that your tooling should keep up with your ambition at the machine.
This style of insert surfacing bit is what you’d expect to find in a production environment—built to run long hours, maintain consistency, and handle real workloads.
What I like most is the simplicity:
When it dulls, you rotate the insert and keep going.
No guessing. No drop in performance.
Just consistent, reliable cutting—exactly what you need when you’re trying to get results.
Insert surfacing bits use replaceable cutting edges, allowing you to maintain sharp performance without replacing the entire tool—saving money over time and reducing downtime.
Each bit includes 2 inserts with 4 edges each, giving you up to 8 total usable cutting edges.
This bit fits any CNC router with a 1/4" collet, including Shapeoko, X-Carve, Onefinity, LongMill, Shark CNC, and similar machines.
Yes, but it’s especially valuable for users ready to improve efficiency and reduce tool replacement costs.
This tool is designed for wood, MDF, and polycarbonates. It is not intended for metal or stone.
This tool provides more balanced cutting and higher RPM capability, making it better suited for smaller CNC routers while still delivering efficient material removal.
No—this uses standard 12x12x1.5mm FK08 square carbide inserts, which can be replaced or rotated as needed.
Starter settings are provided above. Final settings will depend on your machine, material, and setup.
Item SKU: IS-10
Loading Specs and Settings
For Vectric, Fusion 360, Carbide Create and Carveo users, get the latest CNC router bit tool database by going to this page
For CNC’s with routers, refer to this PDF download feeds & speeds table
Get feeds and speeds in your shop by scanning this QR code with the IDC Woodcraft App!
