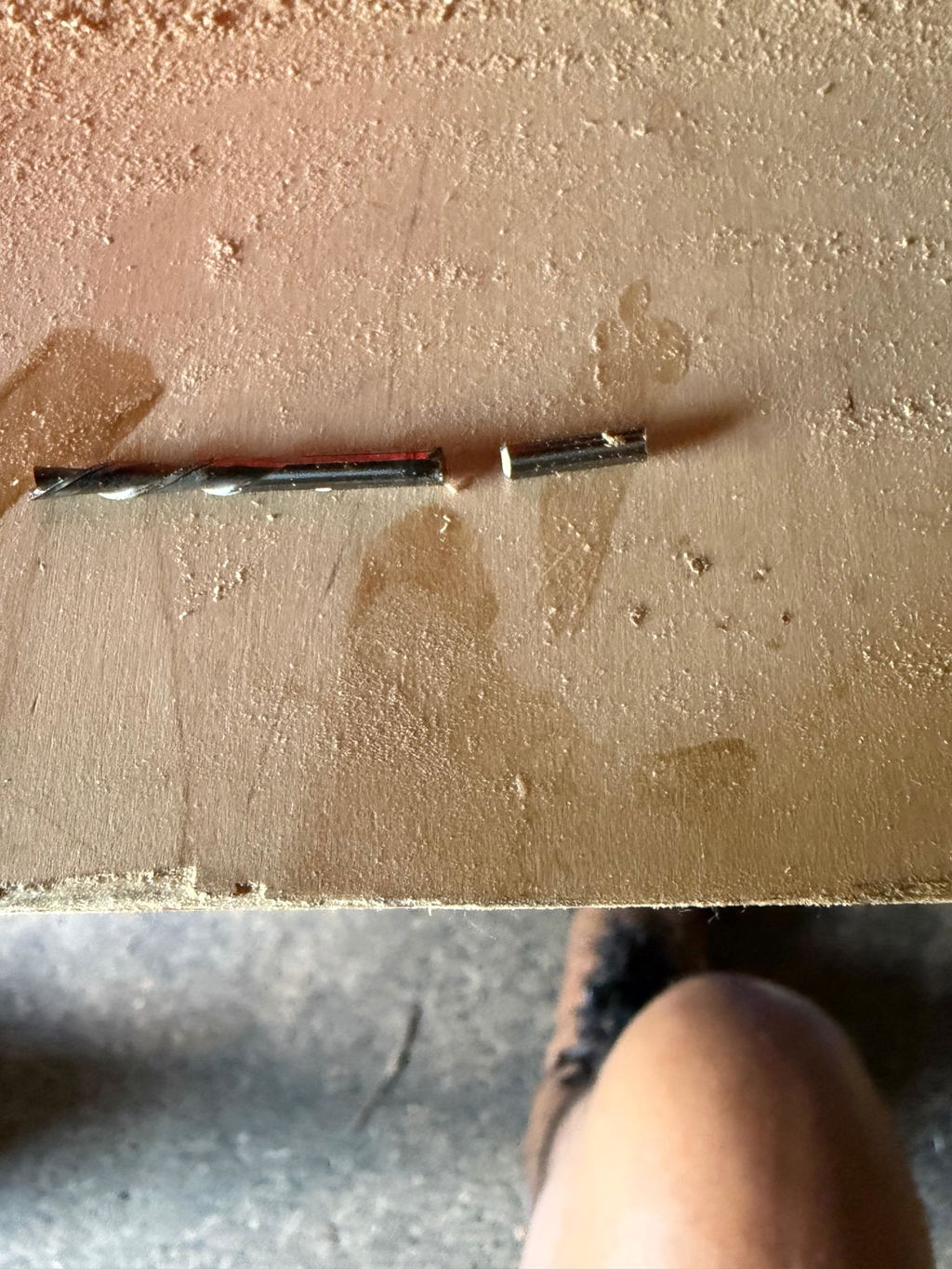

If you’ve experienced long carve times with your 1/8” bits, or even had them break because they cannot handle the workload, then double the output with this 2-piece set of the “BADGER” high-speed roughing endmill bits by IDC Woodcraft.
The BADGER has been called “The little bit with a BIG BITE” by our fellow creators who tested it. For a 1/8” CNC router bit, no other 1/8” bit can match its aggressiveness and blazing speed for removing material from your CNC router projects.
With a 1/8 shank and 1/8” cut diameter, the BADGER falls into the roughing bit category. The BADGER is not designed to deliver clean cuts. Its sole purpose is speed, and it excels at it!
Featuring a staggering 1/4" depth of cut per pass, 80ipm plunge rate, 70% step-over, and a whopping 130 inches per minute cut rate, the BADGER is undisputed when it comes to rapid material removal from your CNC router woodworking projects.
Comparing to other 1/8” endmills, the BADGER can remove material 10X faster than standard 1/8” endmills
Comparison Between the BADGER and Standard 1/8" Bits
|
Settings |
Badger |
Std. 1/8" Endmills |
|
Feed Rate (Ipm) |
130 |
50 |
|
Depth Per Pass |
0.25 |
0.0625 |
|
Stepover |
70% |
40% |
|
Plunge Rate (ipm) |
80 |
20 |
Getting a roughing bit like the BADGER is not just about time savings. It is also about saving your other 1/8” bits for the finishing touch-up AND prolonging the life of them.
By using the BADGER as your workhorse for major material removal, you'll extend the lifespan of your regular CNC router bits. Let them handle the finishing touches while the BADGER handles the heavy lifting when a lot of material needs to be removed in fine detail…like Aztec calendars.
Want to know more about roughing bits and how they are used? Read this article.
HE-18
Item SKU: 2PC-BADGER
Loading Specs and Settings
For Vectric users, get the latest CNC router bit tool database by going to this page
For CNC’s with routers, refer to this PDF download feeds & speeds table
