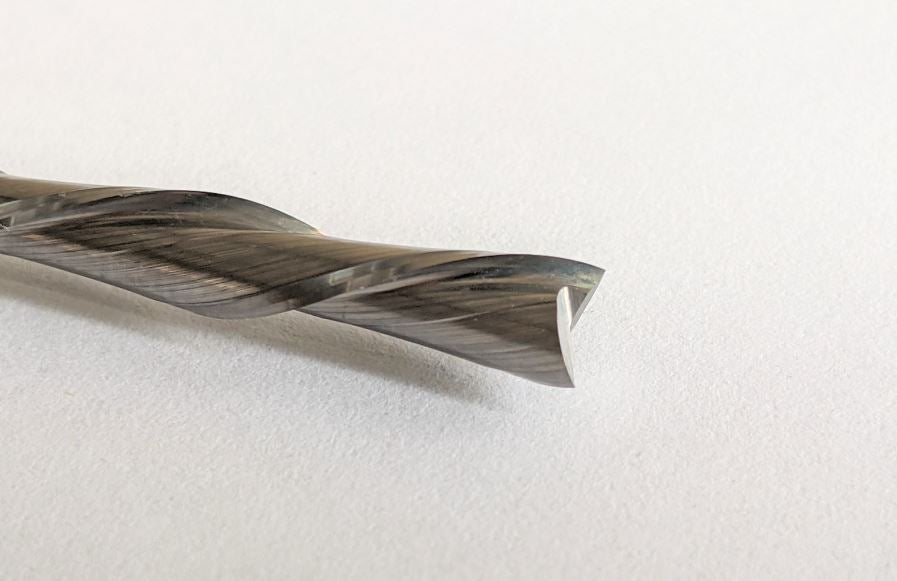

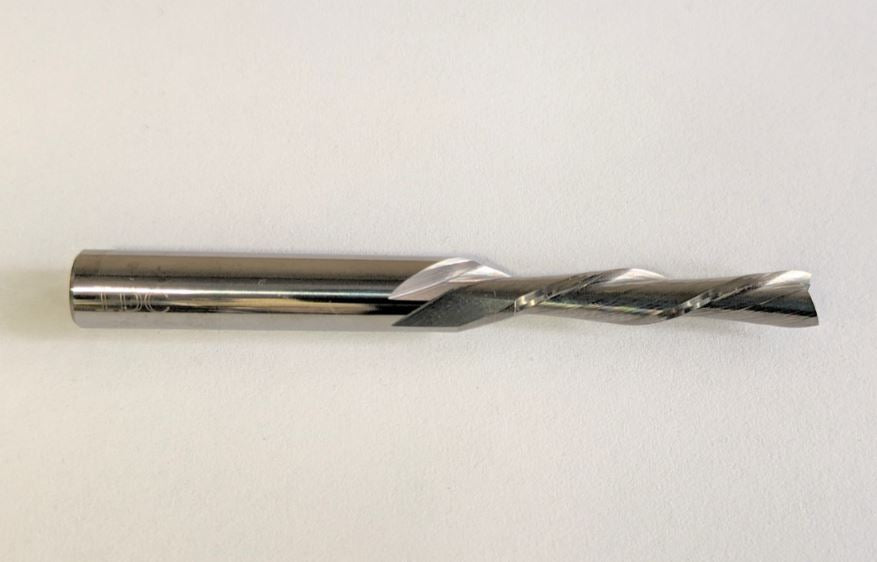

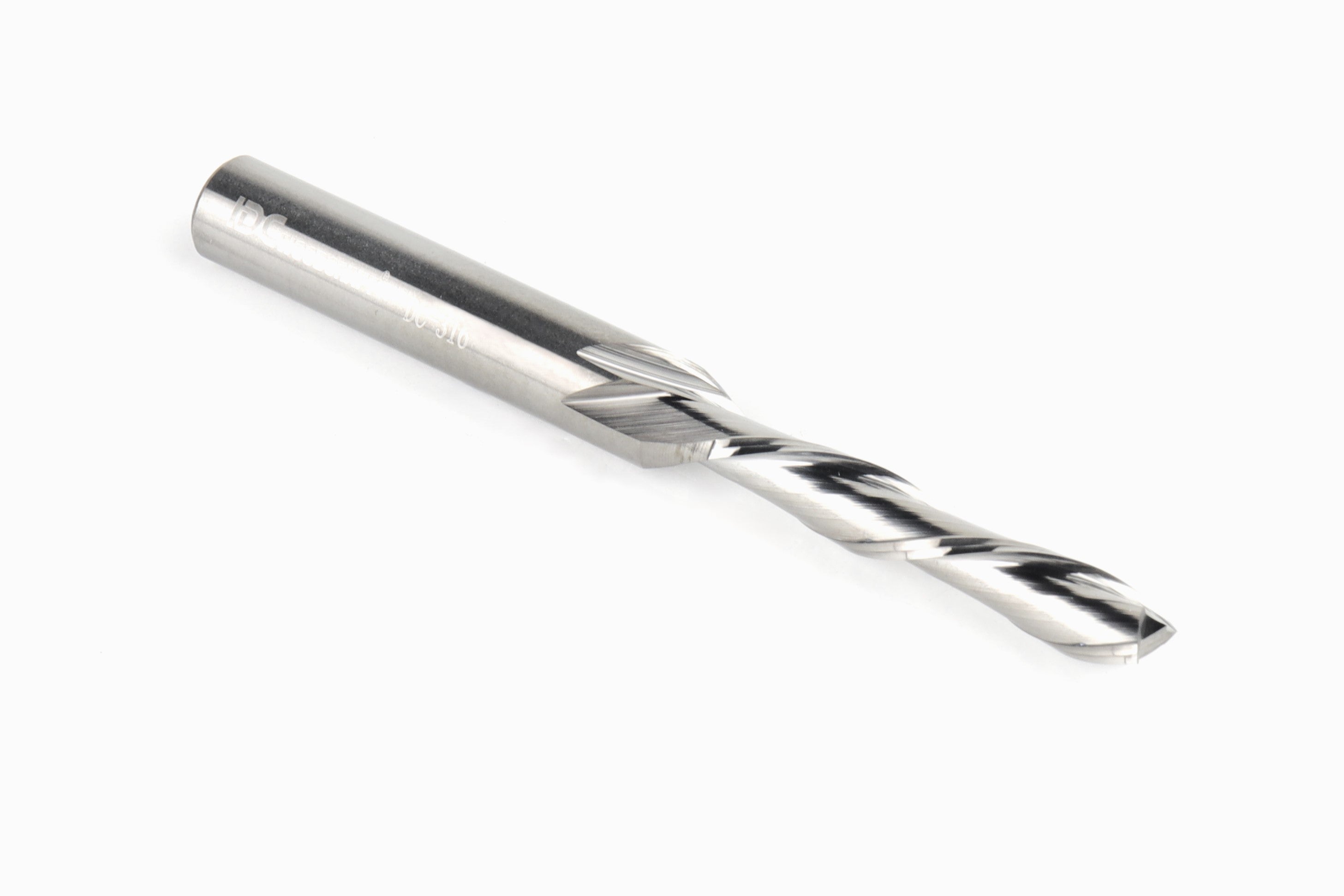

3/16 Down Cutting Endmill Bit For CNC Routers, 1/4" Shank
3/16" flute 1/4" shank downcut carbide router bit by idc woodcraft
3/16" flute 1/4" shank downcut carbide router bit by idc woodcraft
3/16" flute 1/4" shank downcut carbide router bit by idc woodcraft
3/16 Down Cutting Endmill Bit For CNC Routers, 1/4" Shank
3/16" flute 1/4" shank downcut carbide router bit by idc woodcraft
3/16" flute 1/4" shank downcut carbide router bit by idc woodcraft
3/16" flute 1/4" shank downcut carbide router bit by idc woodcraft

3/16 Down Cutting Endmill Bit For CNC Routers, 1/4" Shank

Availability: In Stock

$32.81 USD

Quantity:

The 3/16" CNC router bit... The Silver Bullet of CNC router bits. That's because it's used to do both 1/8" and 1/4" work, saving the need for 2 different size bits. It also means no irritating change-over-time for many CNC router projects.

Enhance Your Carve

3/16 Down Cutting Endmill Bit For CNC Routers, 1/4" Shank

3/16 Down Cutting Endmill Bit For CNC Routers, 1/4" Shank

$32.81 USD

Add this item

+

1/4 Down-Cutting Bit Endmill For CNC Routers, 1/4 Shank

1/4 Down-Cutting Bit Endmill For CNC Routers, 1/4 Shank

$34.86 USD

Add this item

+

1/8 Down Cut Endmill Bit For CNC Routers, 1/8 Shank

1/8 Down Cut Endmill Bit For CNC Routers, 1/8 Shank

$19.98 USD

Add this item

Key Details

Feeds And Speeds

Reviews

Wondering why the 3/16" down cutting endmill is such a big deal with CNC router owners? There's one huge reason...

The 3/16" bit is often called The Silver Bullet of CNC router bits. That's because it's used to do both 1/8" and 1/4" work, saving the need for 2 different size bits. It eliminates irritating bit changes for many CNC router projects that would normally use both.

However, this bit IS the silver bullet of 3/16" CNC router bits. You see, it has 3 distinct modifications that give it an advantage in your woodworking over the standard 3/16" router bits.

→ The increased spiral turn reduces shear forces at any given point on the cutting edges. That increases the bit life dramatically.

→ the 'knife' edge is has a sharper angle that allows it to shear material away like a super-sharp knife through a sirloin steak (think about what 5-star chefs use).

→ The 1-inch flute length (25mm) gets you deep into your project, just as you would with a 1/4" bit.

Cleaner cuts, longer bit life, deeper cut ability, and fewer bit change-outs! With these benefits, you'll end up using this bit for most of your projects.

You'll make this your main workhorse bit in no time.

As usual with IDC bits, it is made of 100% tungsten carbide. Carbide is what professional metal machinists use to make complex items like car engines. It stays sharp 50x longer than conventional CNC router bits.

Order your new workhorse 3/16" down-cut bits today.

Item SKU: DC-316

Specs

  • Cut Diameter: 3/16" (4.762mm)
  • Shank: 1/4" (6.35mm)
  • Length: 2.35" (50mm)
  • Flutes: 2
  • Flute length: 1" (25mm)
  • Material: 100% carbide

Settings

  • Feed rate: 30 inches per minute
  • Plunge rate: 30 inches per minute
  • Speed (rpm): 19,000
  • Depth per pass: 0.250
  • Stepover: 40%

For Vectric users, get the latest CNC router bit tool database by going to this page

For CNC’s with routers, refer to this PDF download feeds & speeds table

Get feeds and speeds in your shop by scanning this QR code with the IDC Woodcraft App!

Customer Reviews

Based on 20 reviews
100%
(20)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
T
Terry Holle
3/16 Down Cutting Endmill

Fantastic! I like having the half size between a quarter and an eighth for the smaller pockets. Cuts great!

B
Bruce Malmstrom
3/16" Super Bit!

The 3/16" Downcut bit does a great job cutting the Walnut wood.

P
Patti Schichtel
Great service and product

Everything came as expected and cutters work smoothly. Was also impressed with the personal touch of a snack pack of MM's in my package made my day. Service and help is great.

M
Mark Dunker
3/16 Down Cutting Endmill with 1/4 inch shank and 1/8 inch Badger

Both of these tools arrived quickly and are both awesome bits. The 3/16 is just about perfect for many cuts, very durable. The badger is incredible, and leaves much cleaner cuts than I had expected. Great job IDC guys and gals.

p
phil morrissey
3/16 down cut end mill

Works great delivered in a timely manner grandkids loved the M&Ms. Thanks for all you do.
