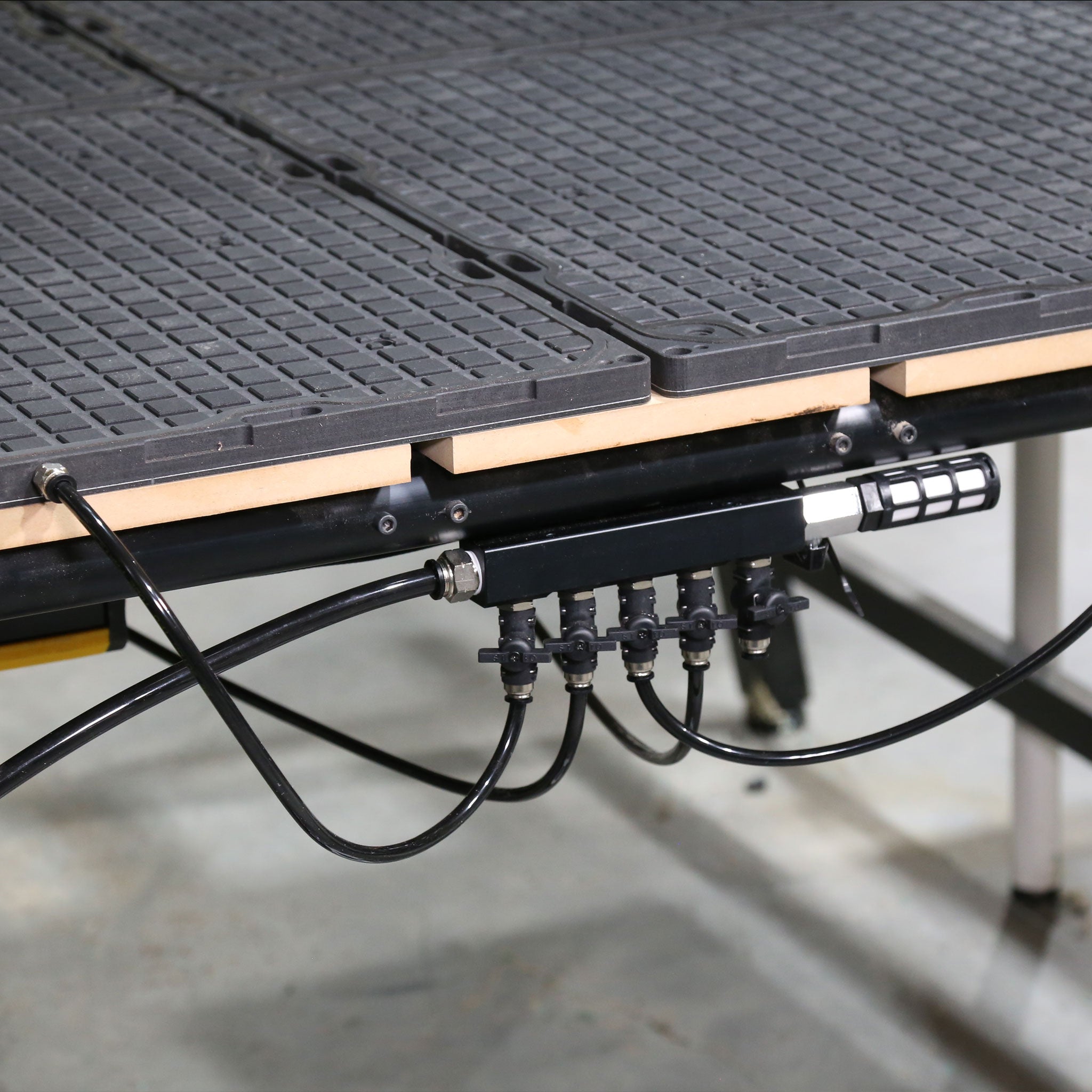

These manifolds provide convenient routing and added control of your air line runs. Each zone includes it's own airflow valve, giving you independent control of every vacuum table in your setup.
The manifolds are intended for use with a 17 CFM pump to control multiple vacuum zones. The main outlet is fitted with a larger 1/2" sized air line that connects directly to the 17CFM pump. Each of the vacuum line receptacles features a 5/16 quick disconnect fitting with a valve for flow control.
The end is fitted with a filter and one extra valve. This valve is useful as a pressure release for fast part removal in between runs. Additionally, the body of the manifold includes multiple 'through-holes' for easy mounting of the unit.
Available in:

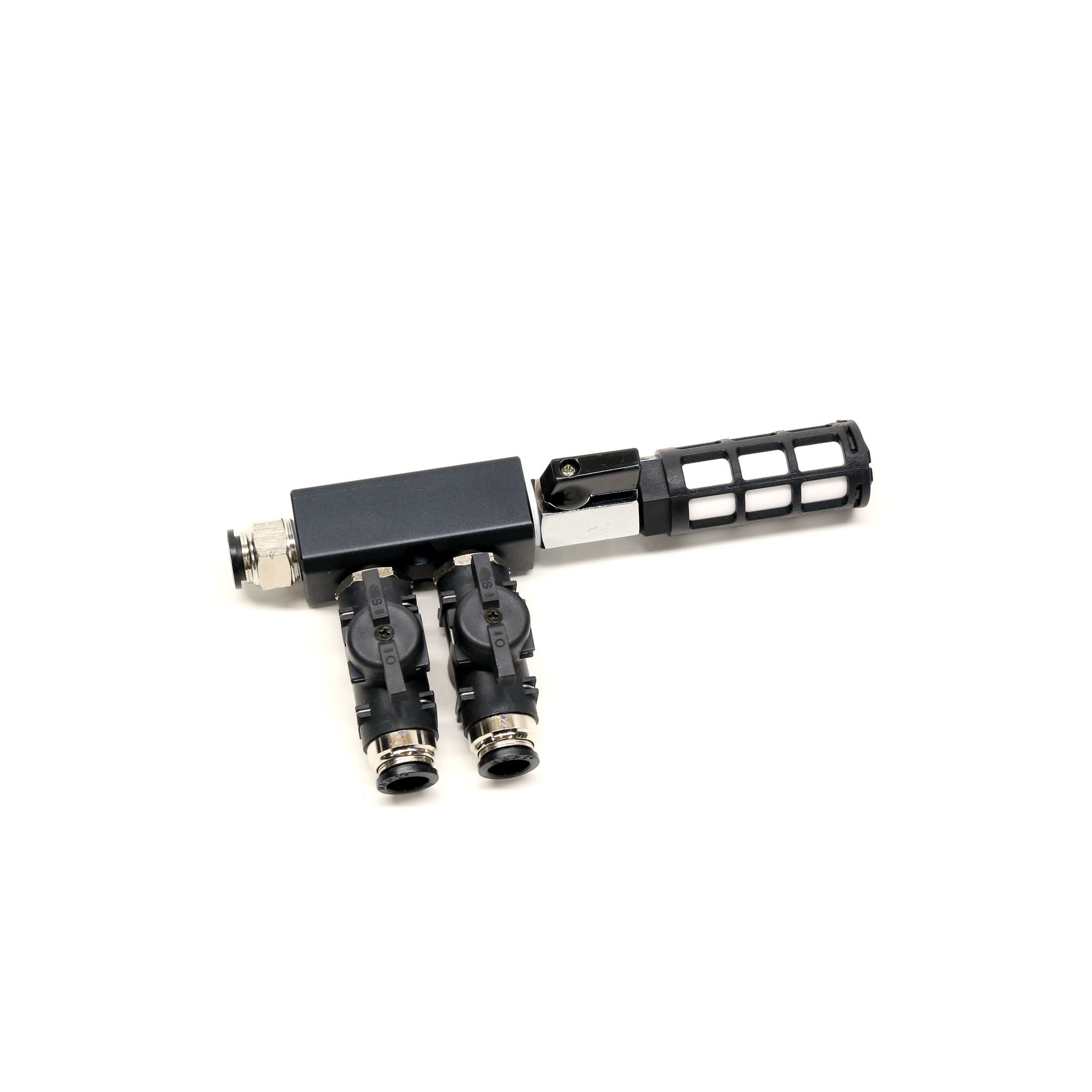

2-zone with 1/2" inlet and (2) 1/2" outlets
3-zone with 1/2" inlet and (3) 5/16" outlets

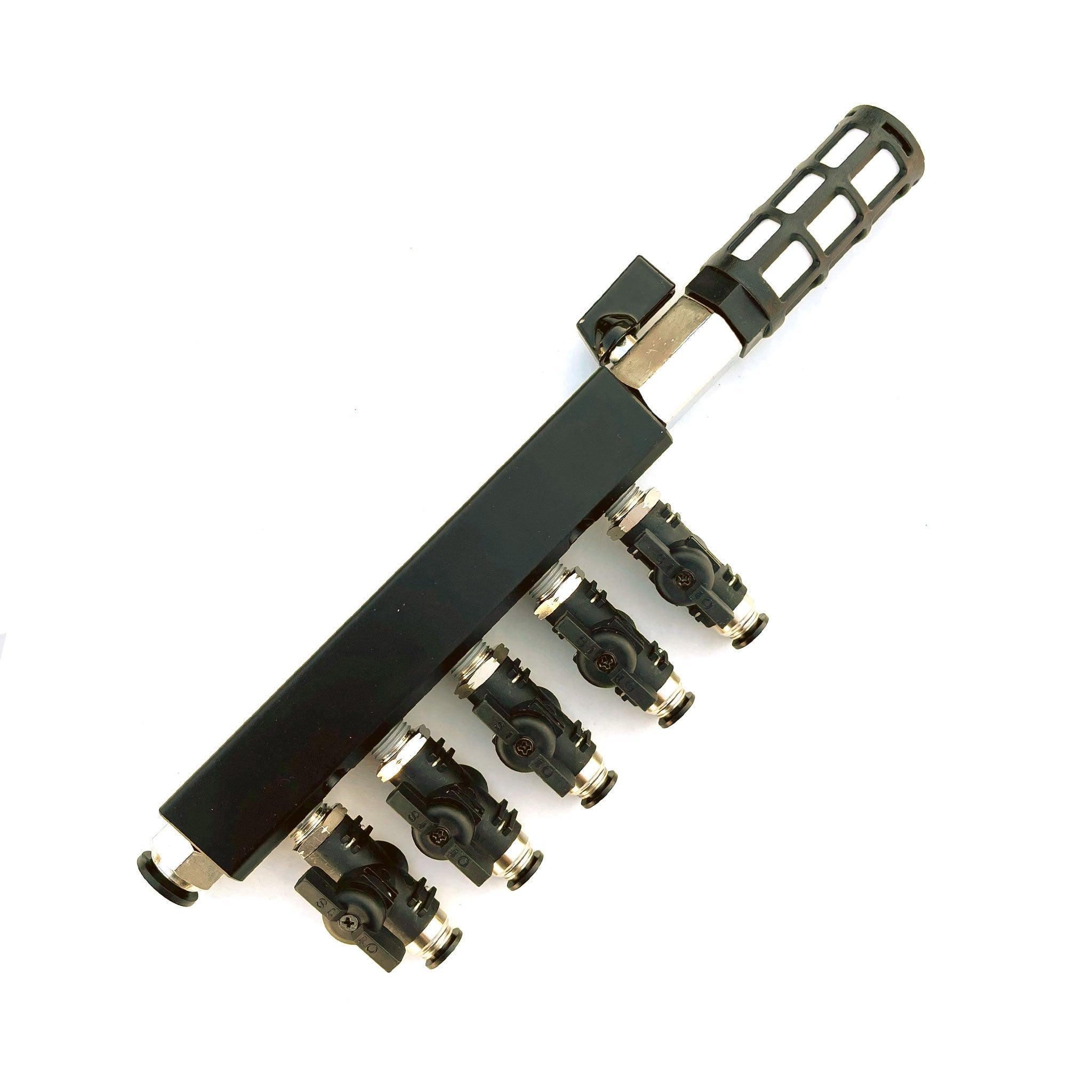

5-zone with 1/2" inlet and (5) 5/16" outlets
Item SKU: AWM-0305-241
