Large Body V-Bit Grooving Set 60, 90, 120 Deg for CNC Routers, 1/4 Shank
30, 60 and 90 degree wide body v bit set for cnc routers
Large Body V-Bit Grooving Set 60, 90, 120 Deg for CNC Routers, 1/4 Shank
60 degree wide body v bit for cnc routers
90 degree wide body v bit for cnc routers
30, 60 and 90 degree wide body v bit set for cnc routers
Large Body V-Bit Grooving Set 60, 90, 120 Deg for CNC Routers, 1/4 Shank
30, 60 and 90 degree wide body v bit set for cnc routers
Large Body V-Bit Grooving Set 60, 90, 120 Deg for CNC Routers, 1/4 Shank
60 degree wide body v bit for cnc routers
90 degree wide body v bit for cnc routers
30, 60 and 90 degree wide body v bit set for cnc routers

Large Body V-Bit Grooving Set 60, 90, 120 Deg for CNC Routers, 1/4 Shank

Availability: Out Of Stock

$109.58 USD

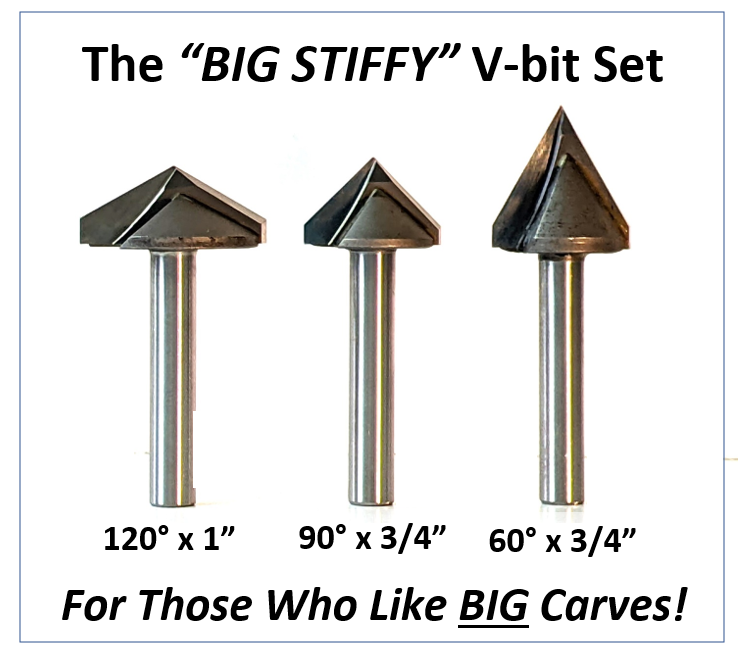

The Big Stiffy series v-bit grooving set (60 deg, 90 deg, 120 deg) for CNC routers, with 1/4" shank, cuts your larger V grooves, cuts deeper, and cuts faster than conventional v-bits due to the large size. The extra body size lets you maximize your carve time while also leaving a clean cut.

This V grooving set includes wide-body...

  • 60 degree x 3/4"
  • 90 degree x 3/4"
  • 120 degree x 1"

Key Details

Feeds And Speeds

Reviews

The Big Stiffy series v-bit grooving set (60 deg, 90 deg, 120 deg) for CNC routers, with 1/4" shank, cuts your larger V grooves, cuts deeper, and cuts faster than conventional v-bits due to the large size. The extra body size lets you maximize your carve time while also leaving a clean cut.

This V grooving set includes wide-body...

  • 60 degree x 3/4"
  • 90 degree x 3/4"
  • 120 degree x 1"

You save $10 when you get the set. Specs are at the bottom of this page.

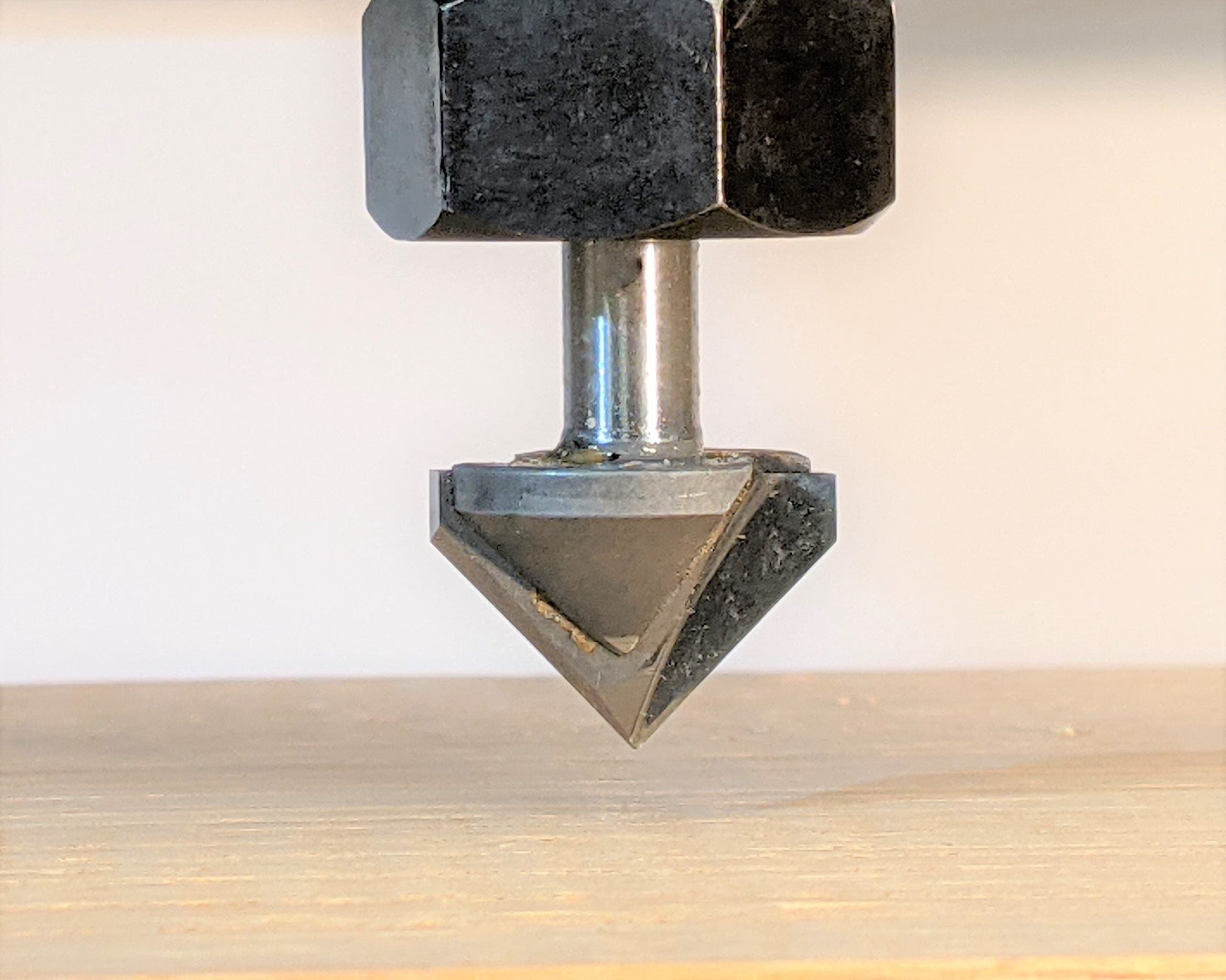

The Big Stiffy series v-bits are designed to minimize the risk of chatter (cut marks on the wood) by using a thicker, more stout body. The extra mass absorbs the vibrations that cause the chatter marks. This gives you a 50% improvement in your surface finish.

With a 1/4" shank, these become the go-to v-bits for home-based CNC'ers when it comes to larger v carved projects and chamfers on your CNC router woodworking projects.

The 'super-shear' blade design is designed to leave exceptionally clean cuts at higher feed rates. This is the v bit to use when your v-carved letters are wider than 1/4" wide.

To see how effective your Big Stiffy v-bits are, watch this YouTube video of a very large CNC router project completely carved in 11 minutes using the 120-degree V bit. The 60 degree and 90 degree grooving bits are designed to give you the exact same performance.

This bit has a carbide blade brazed to a 4140 alloy steel body.

Item SKU: BV-SET-6912

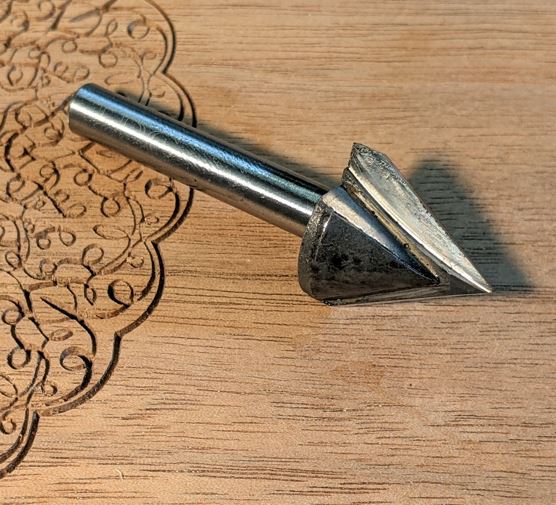

60 degree grooving v-bit

Specs

  • Shank: 1/4" (6.35mm)
  • Cut diameter: 0.75" (25mm)
  • Cut angle: 60 degrees
  • Length: 2.0" (52mm)
  • Flutes: 2
  • Flute length: 065"
  • Material: 100% tungsten-carbide tipped

Settings

  • Feed rate: 80 inches per minute
  • Plunge rate: 25 inches per minute
  • Speed(rpm): 14,000
  • Depth per pass: 0.250"
  • Stepover: 20%

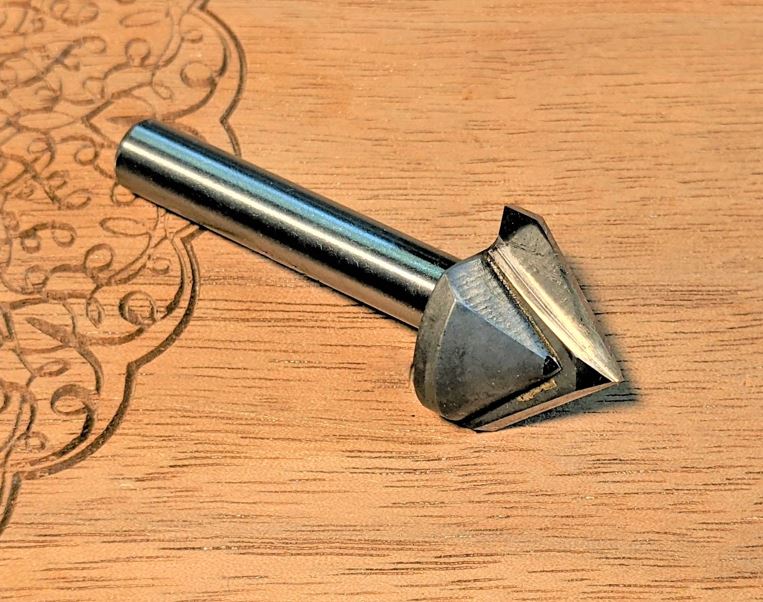

90 degree grooving v-bit

Specs

  • Shank: 1/4" (6.35mm)
  • Cut diameter: 0.75" (25mm)
  • Cut angle: 90 degrees
  • Length: 2.0" (52mm)
  • Flutes: 2
  • Flute length: 0.5"
  • Material: 100% tungsten-carbide tipped

Settings

  • Feed rate: 60 inches per minute
  • Plunge rate: 30 inches per minute
  • Speed(rpm): 14,000
  • Depth per pass: 0.250"
  • Stepover: 20%

120 degree grooving v-bit

Specs

  • Shank: 1/4" (6.35mm)
  • Cut diameter: 1.0" (25mm)
  • Length: 2.0" (38mm)
  • Flutes: 2
  • Flute length: 0.288"
  • Material: 100% tungsten-carbide tipped

Specs

  • Shank: 1/4" (6.35mm)
  • Cut diameter: 1.0" (25mm)
  • Length: 2.0" (38mm)
  • Flutes: 2
  • Flute length: 0.288"
  • Material: 100% tungsten-carbide tipped

For Vectric users, get the latest CNC router bit tool database by going to this page

For CNC’s with routers, refer to this PDF download feeds & speeds table
