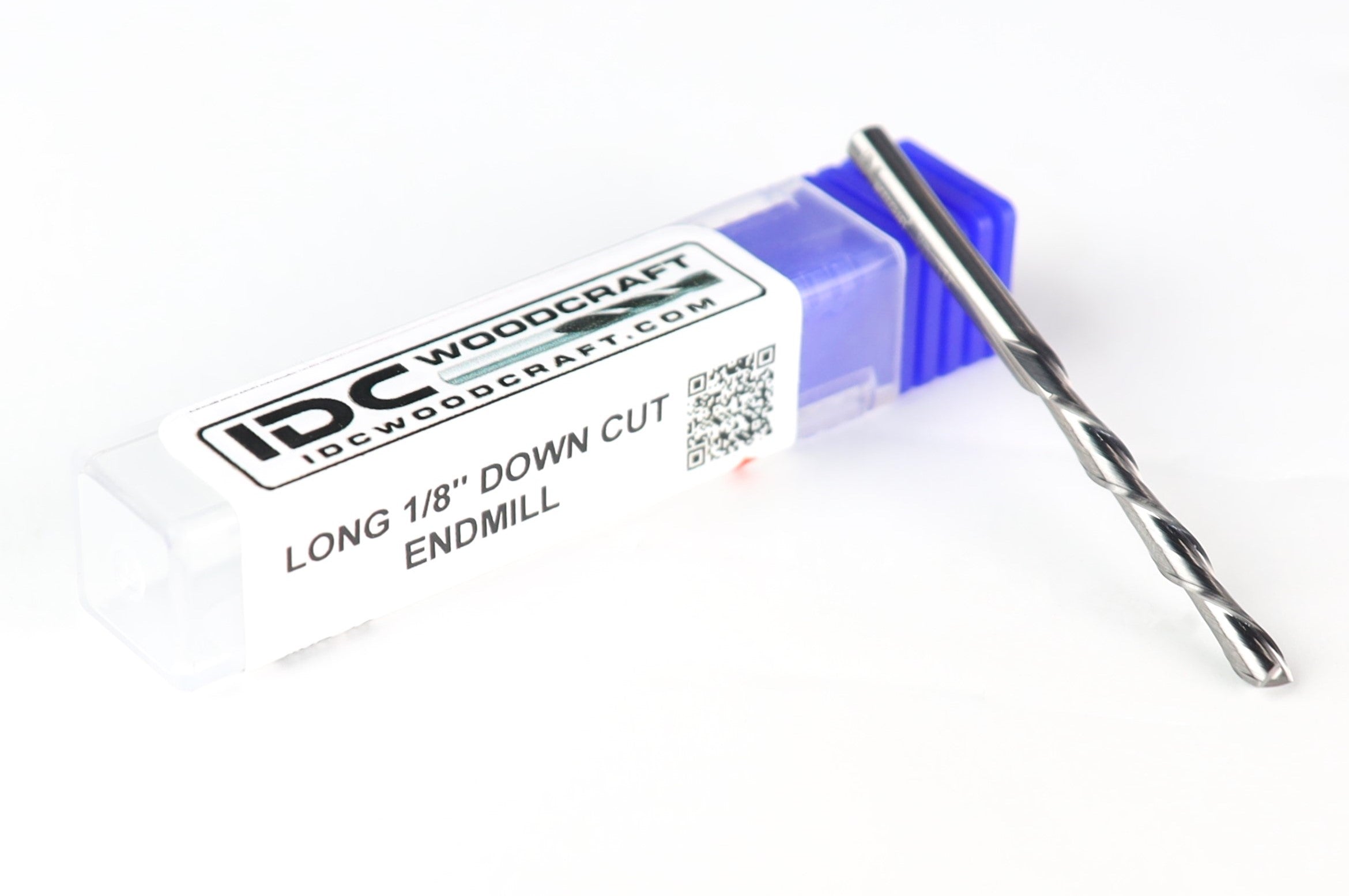

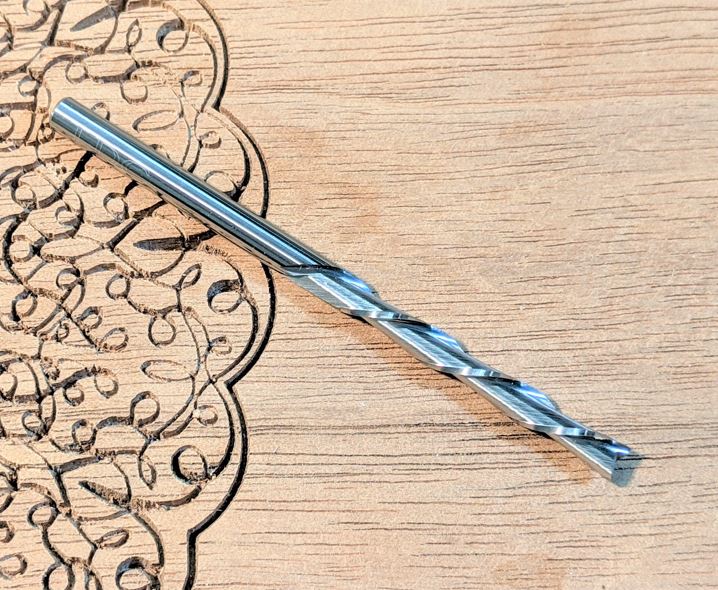

Long 1/8" Router Bit Endmill For CNC Routers, 1/8" Shank
Long 1/8" Router Bit Endmill For CNC Routers, 1/8" Shank
Long 1/8" Router Bit Endmill For CNC Routers, 1/8" Shank
1/8" extended downcut carbide endmill by idc woodcraft for deep pockets
1/8" extended downcut carbide endmill by idc woodcraft for deep pockets
1/8" extended downcut carbide endmill by idc woodcraft for deep pockets
1/8" extended downcut carbide endmill by idc woodcraft for deep pockets
1/8" extended downcut carbide endmill by idc woodcraft for deep pockets
Long 1/8" Router Bit Endmill For CNC Routers, 1/8" Shank
Long 1/8" Router Bit Endmill For CNC Routers, 1/8" Shank
Long 1/8" Router Bit Endmill For CNC Routers, 1/8" Shank
1/8" extended downcut carbide endmill by idc woodcraft for deep pockets
1/8" extended downcut carbide endmill by idc woodcraft for deep pockets
1/8" extended downcut carbide endmill by idc woodcraft for deep pockets
1/8" extended downcut carbide endmill by idc woodcraft for deep pockets
1/8" extended downcut carbide endmill by idc woodcraft for deep pockets

Long 1/8" Router Bit Endmill For CNC Routers, 1/8" Shank

Availability: In Stock

$29.96 USD

Quantity:

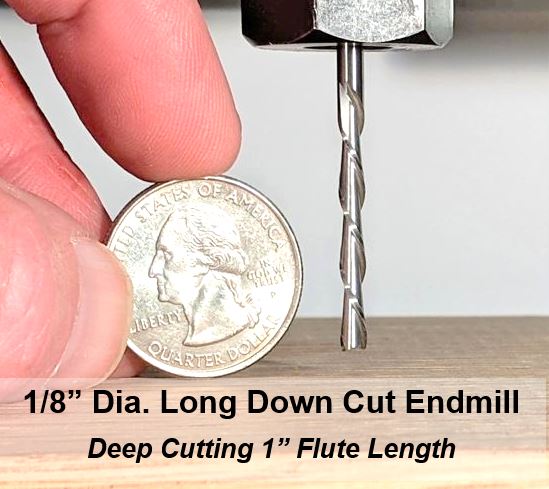

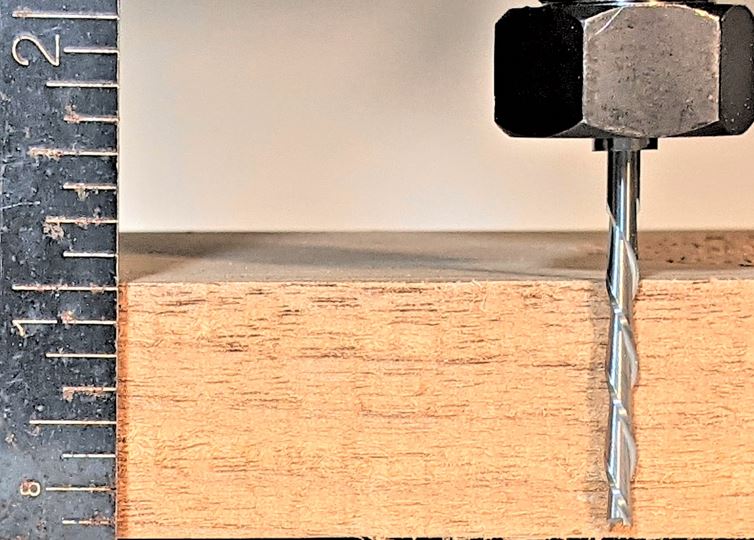

This long 1/8" CNC router bit gives you more creative ability to design and cut thicker projects you otherwise couldn't do. And you can design with more detail due to the smaller bit diameter. Think keepsake boxes and Aztec calendars with much more detail and depth! This extended 1/8" down-cutting bit can cut to depths of 1.0".

  1. 1.0" standard cut depth
  2. Capable of Up to 1.25" cut depth

Enhance Your Carve

Long 1/8" Router Bit Endmill For CNC Routers, 1/8" Shank

Long 1/8" Router Bit Endmill For CNC Routers, 1/8" Shank

$29.96 USD

Add this item

+

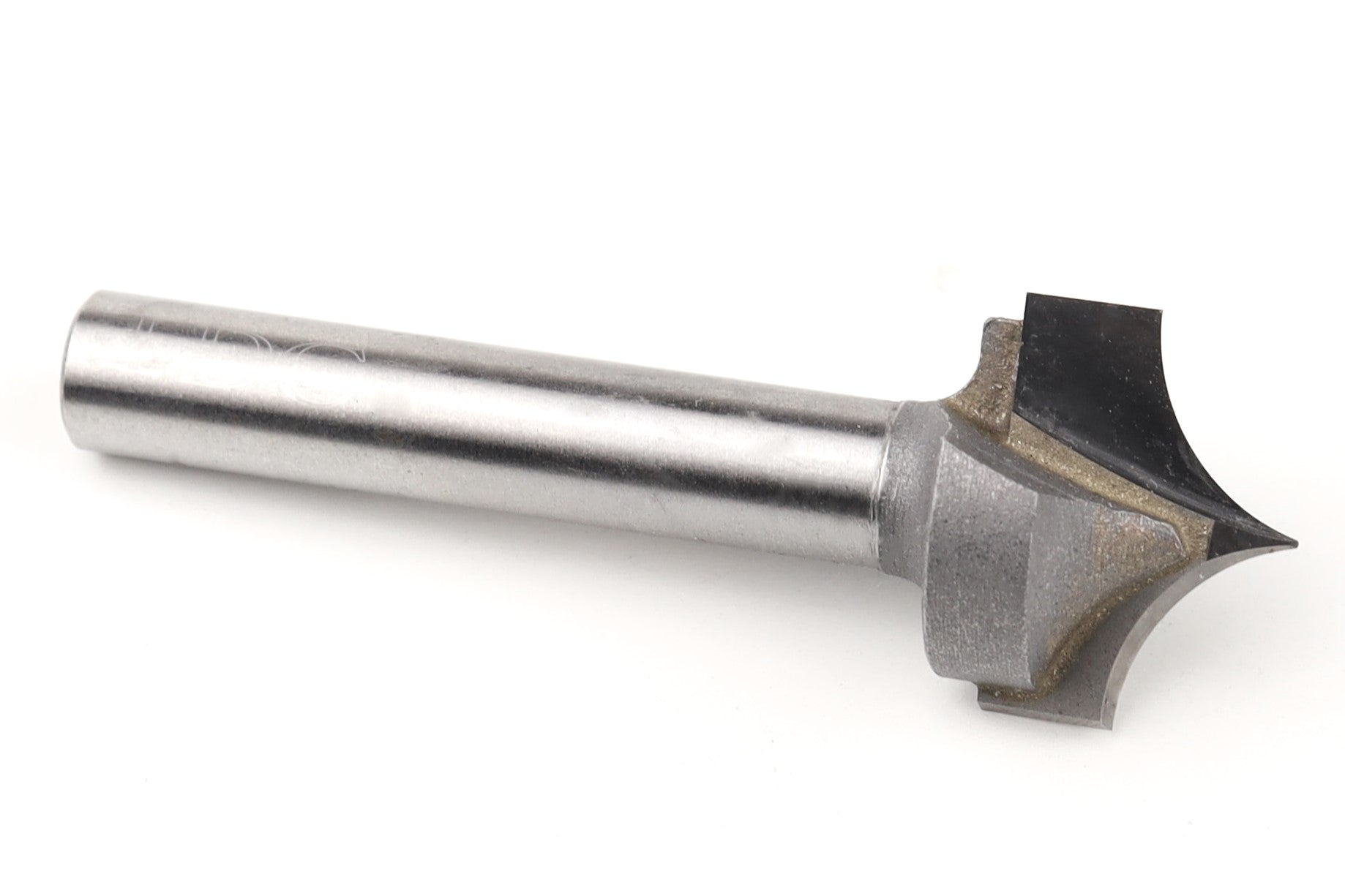

1/4" Radius Round Over Router Bit, 1/4" Shank (Corner/Edge Rounding)

1/4" Radius Round Over Router Bit, 1/4" Shank (Corner/Edge Rounding)

$32.73 USD

Add this item

+

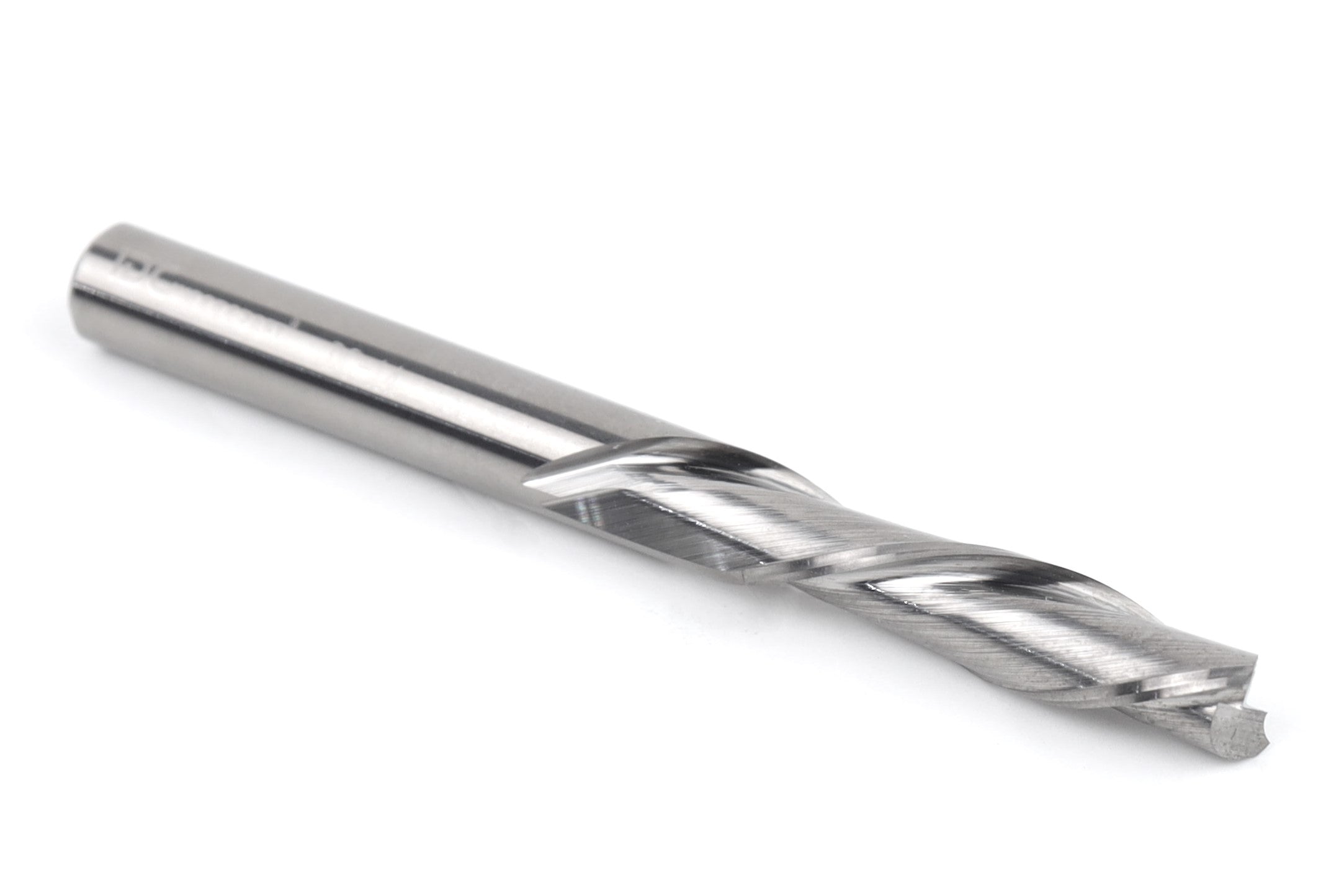

1/4 Down-Cutting Bit Endmill For CNC Routers, 1/4 Shank

1/4 Down-Cutting Bit Endmill For CNC Routers, 1/4 Shank

$34.86 USD

Add this item

Key Details

Feeds And Speeds

Reviews

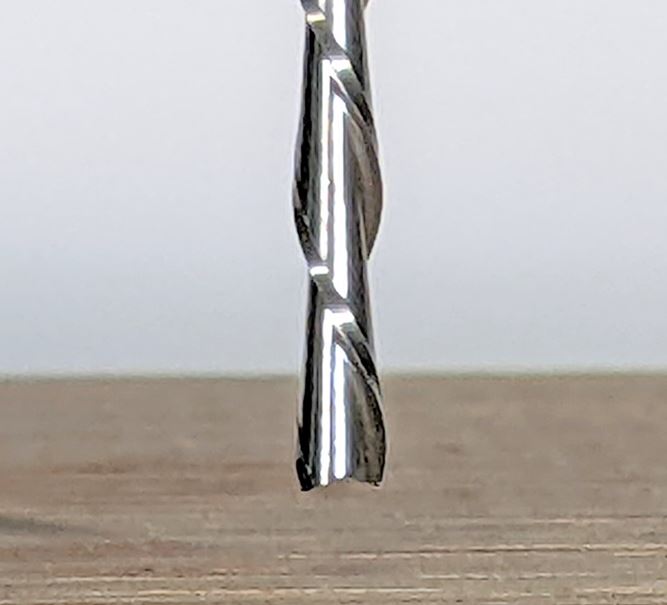

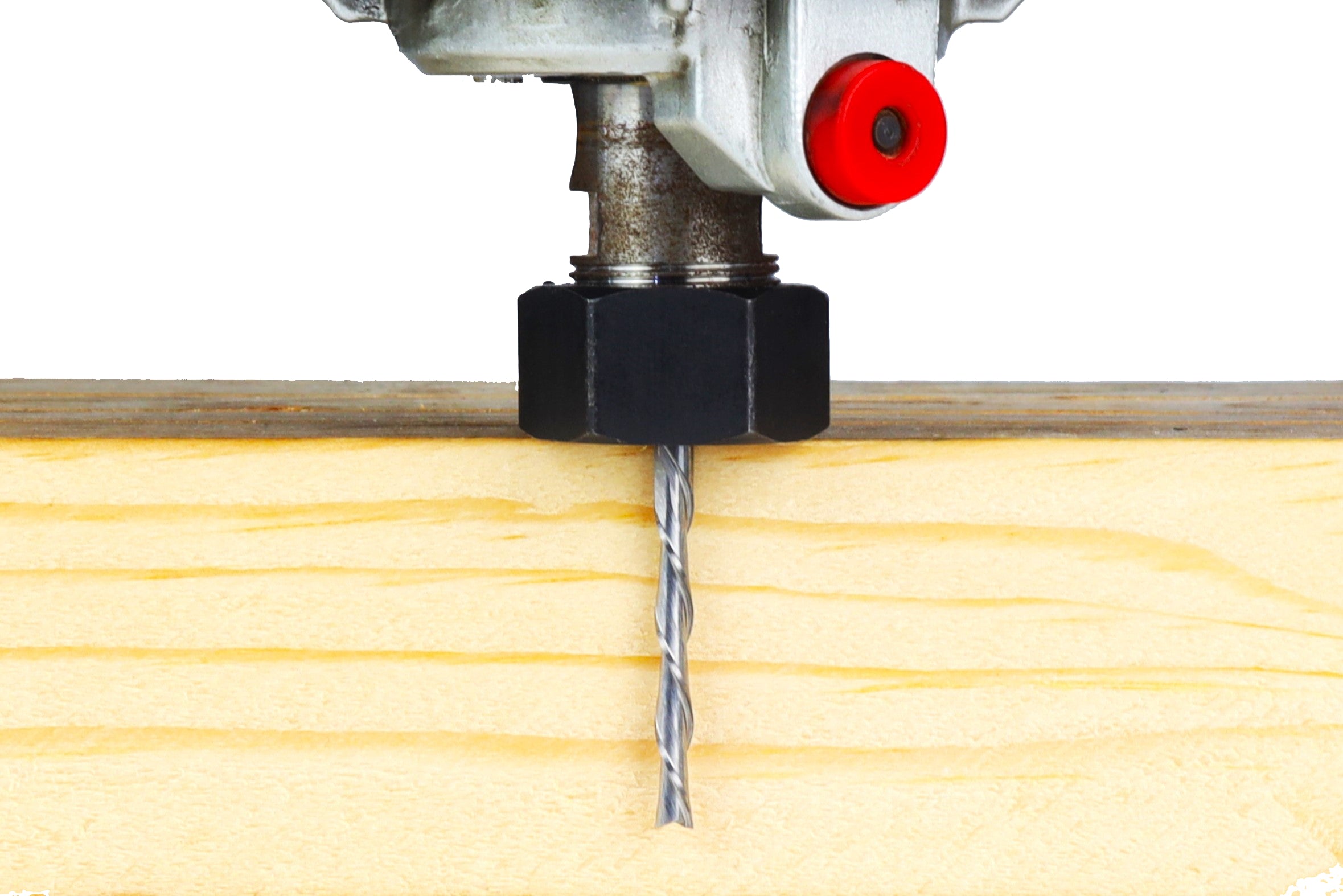

Designed for keeping detail on deep cuts, this long 1/8 router bit for CNC router projects can cut up to 1 inch deep. Also known as an extra-long down bit, or extended down cut endmill, it is for getting into those deep cuts where fine cutting and detail is needed.

The long 1/8 router bit is excellent for unusually deep CNC router woodworking projects, such as the pockets in guitar bodies during guitar making and keepsake boxes.

If you are getting into guitar making, you might be interested in the guitar maker's CNC router bit set.

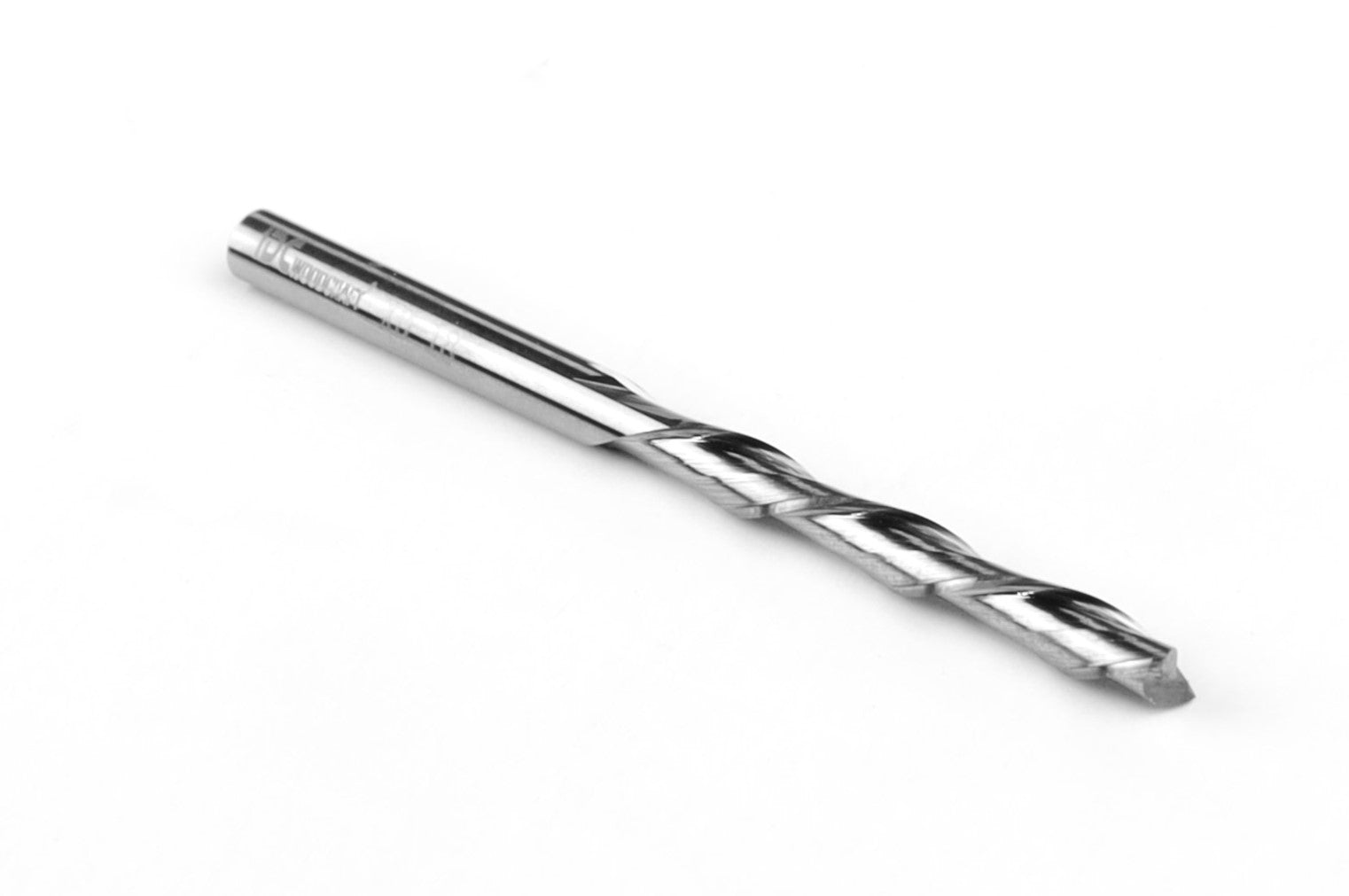

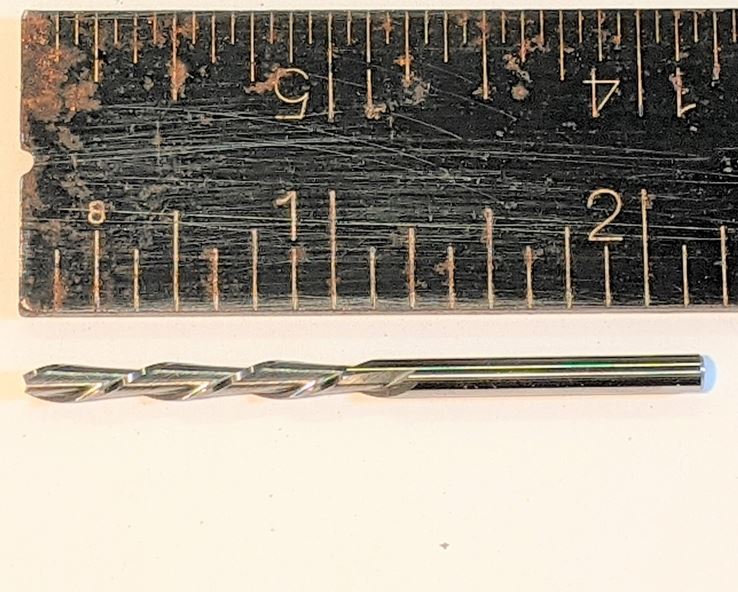

Made from solid carbide, this extra long 1/8 router bit has a 1" flute length and is 2" in total length.

Item SKU: XD-18

Specs

  • Overall length: 2"
  • Flute length: 1"
  • Number of flutes: 2
  • Shank diameter: 0.125"
  • Cut diameter: 0.125"

Settings

  • Feed rate: 30 inches per minute
  • Plunge rate: 15 inches per minute
  • Speed(rpm): 14,000
  • Depth per pass: 0.050"
  • Stepover: 40%

For Vectric users, get the latest CNC router bit tool database by going to this page

For CNC’s with routers, refer to this PDF download feeds & speeds table

Get feeds and speeds in your shop by scanning this QR code with the IDC Woodcraft App!

Customer Reviews

Based on 33 reviews
88%
(29)
3%
(1)
3%
(1)
3%
(1)
3%
(1)
B
Brian Derman
Top notch

This was my 2nd or 3rd purchase from IDC. Superior quality, obviously, or I wouldn't be a repeat customer. The team at IDC got my order turned around and on the road in less than 48 hrs.

Unfortunately the extended 1/8 downcut bit I ordered bit the dust within the first hour of use. Tough luck, probably. Not a reflection of the quality, I believe.

S
Steve McKinzie
Fast Service

Excellent service and high quality products

G
Graham Rankin

Long 1/8" Router Bit Endmill For CNC Routers, 1/8" Shank

D
David VanHeuvelen
I order the 1/4 long EM. Have not used it yet

Have not used yet

B
Bruce Malmstrom
The Little Guy

I love the 1/8" cutter we just don't push it to hard!
