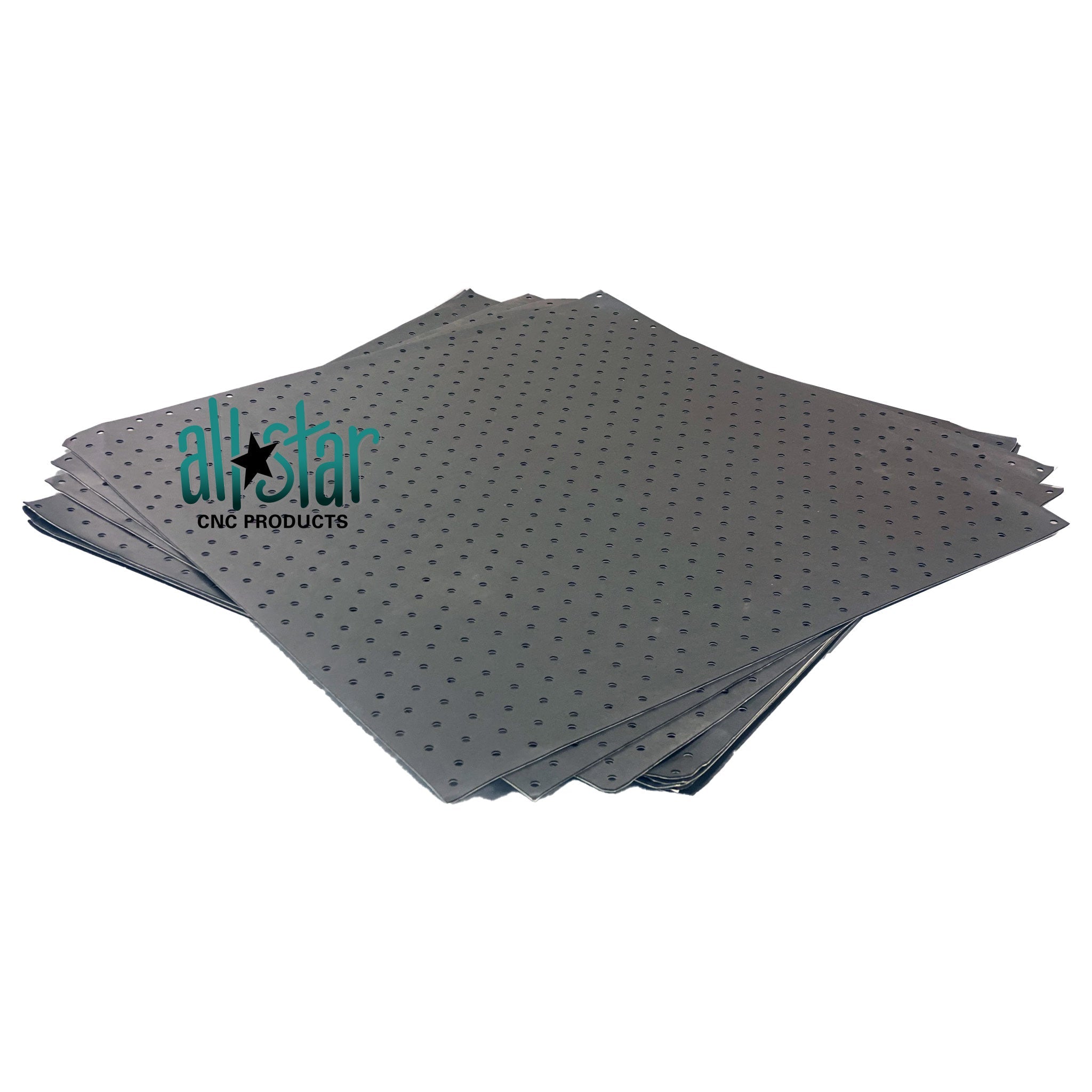

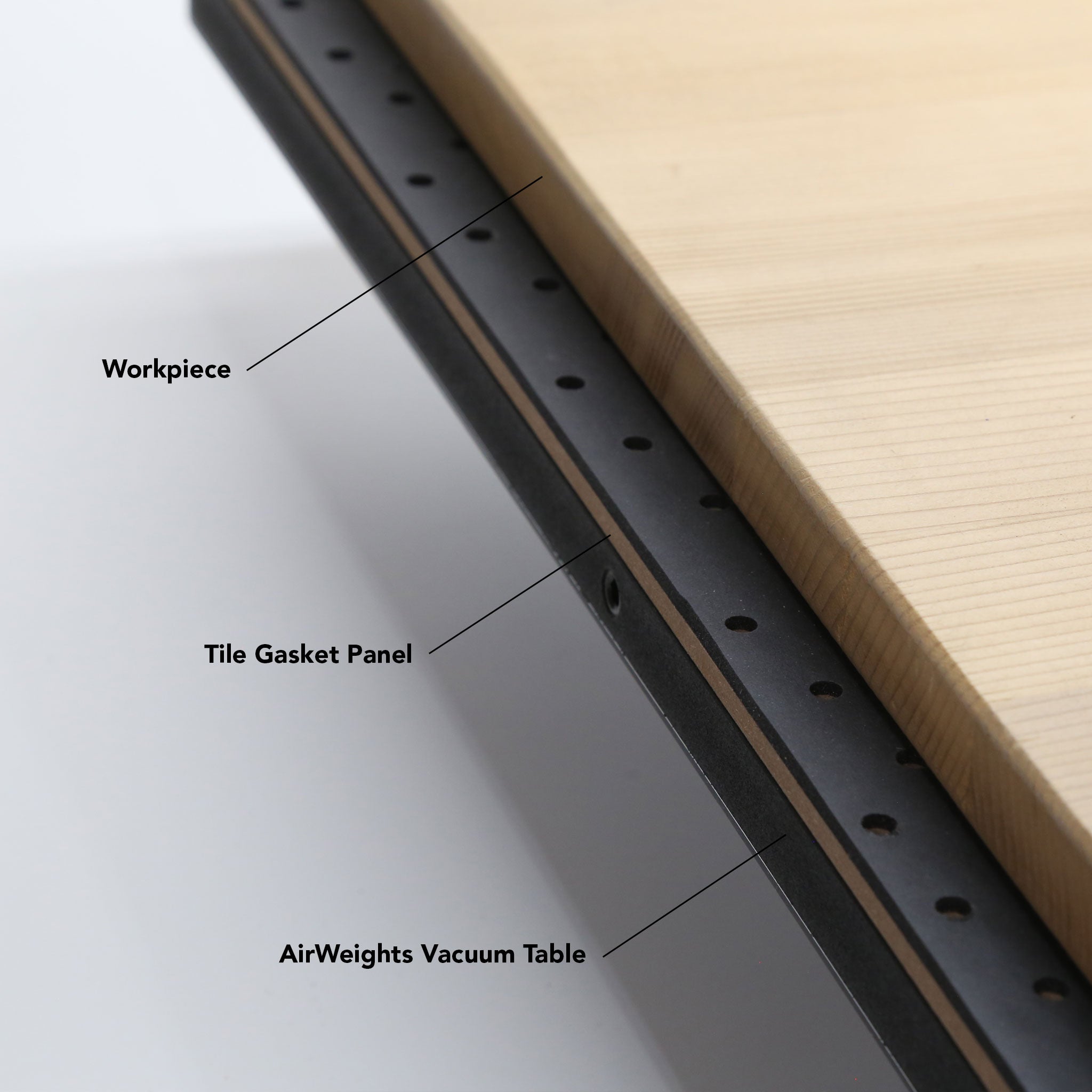

Tile gasket is a semi-sacrificial perforated foam gasket that covers your entire AirWeights table. Restricting the airflow through the perforations in the gasket turns each tiny hole into a powerful suction point, holding down parts with equal force across the entire surface of the table.
This approach lets you cut all the way through the workpiece, allowing the bit to kiss the foam (set your cut depth a hair deeper than the bottom of your part). The elimination of tabs or onion skin speeds up your workflow, and gives a cleaner cut on your part.
The Tile Gasket is manufactured in adhesive-backed sheets. For use on the AirWeights table, we recommend applying the gasket to 1/4" MDF. The MDF should be faced on both sides to ensure it remains porous.
We offer the gasket sheets, and pre-applied gasket assemblies (gasket sheet applied to 1/4" MDF that has been surfaced on both sides)
Tile Gasket Sheet Specifications:
Item SKU: ATG-0624-ALL
Loading Specs and Settings
For Vectric, Fusion 360, Carbide Create and Carveo users, get the latest CNC router bit tool database by going to this page
For CNC’s with routers, refer to this PDF download feeds & speeds table
