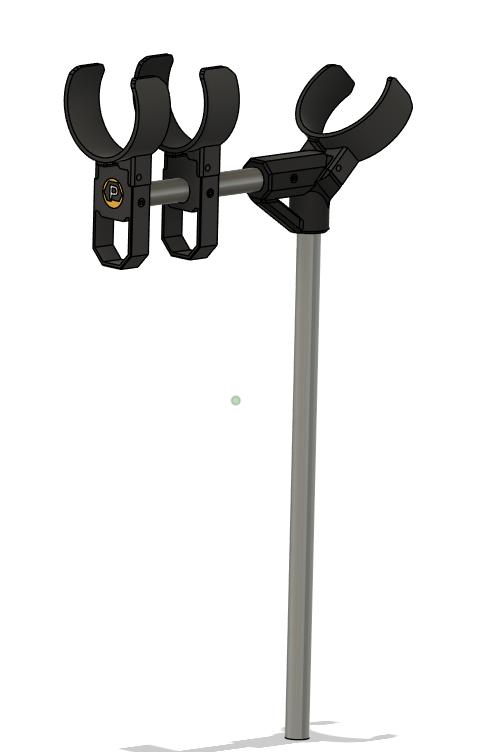

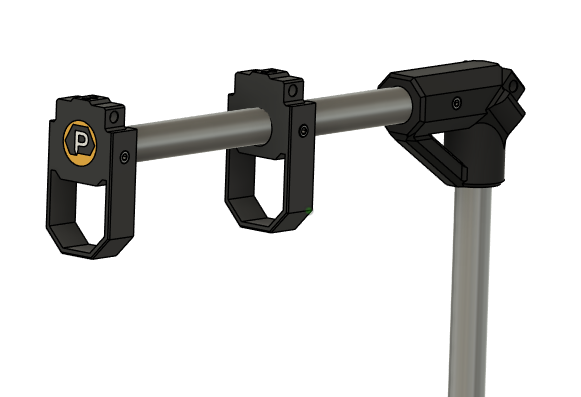

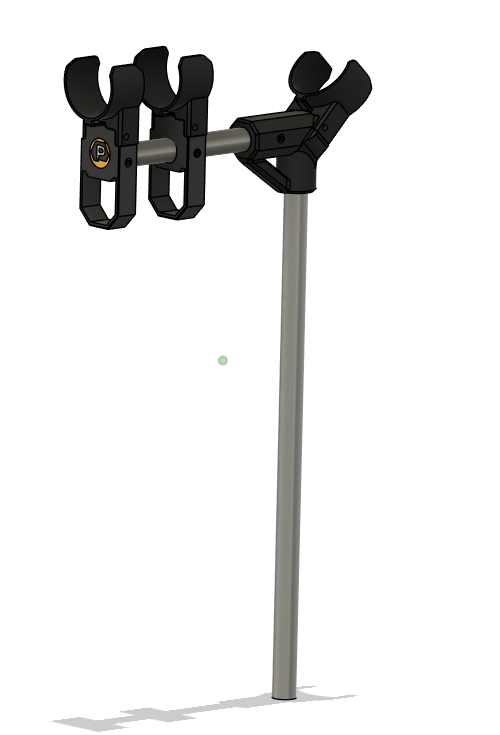

Hose Boom Arm – Keep Your Wires & Hoses Organized and Out of the Way

Hose Boom Arm – Keep Wires and Hoses Organized and Out of the Way

When your cable chain is maxed out, a Hose Boom Arm is the perfect solution for managing your dust hose, coolant lines, air tubing, and wiring without interfering with your CNC’s motion.

Whether you're running an ATC system, a water-cooled spindle, or a bulky dust collection hose, this boom arm helps keep your workspace cleaner, safer, and better organized.

What’s Included

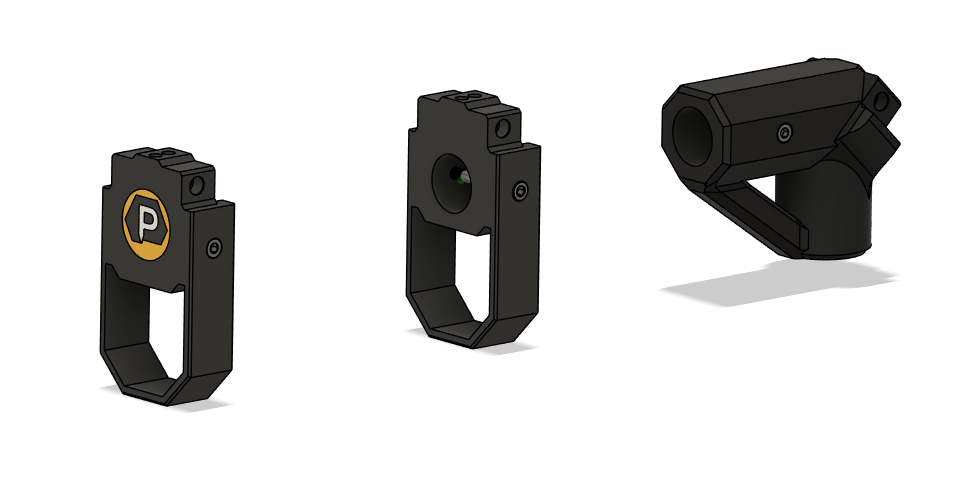

Three boom arm components:

• Elbow
• Mid section
• End section

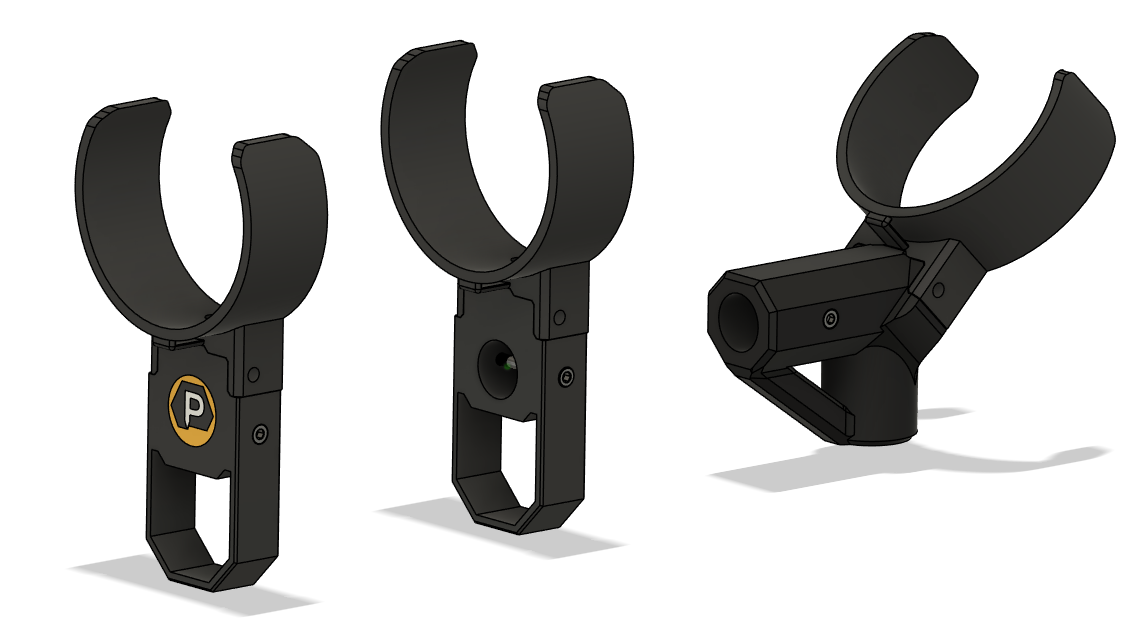

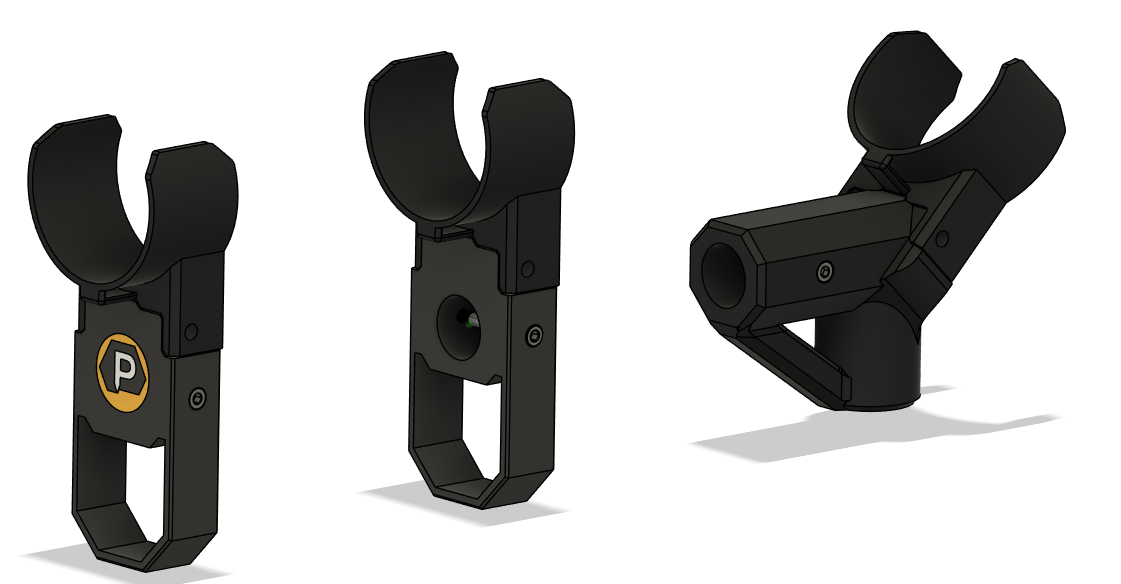

Your choice of Ultimate Hose Clamp Attachments, such as 2.5" or 4":

• Select from our growing lineup of sizes and types
• “No Attachment” option available if you already own the clamps you need

EMT Conduit Required

This Hose Boom Arm is designed to mount onto 3/4" EMT conduit, which is not included due to shipping constraints.

Important sizing note: EMT conduit is typically sold by its trade size, not by its actual outside diameter. For this product, you want conduit sold in stores as:

3/4" EMT conduit

This size has an actual outside diameter of approximately 1", which fits the 26mm opening in the printed boom arm components.

Do not purchase 1" EMT conduit, as that refers to the trade size and will be too large for this product.

3/4" EMT conduit is commonly available at most hardware stores, including stores such as Lowe’s, Home Depot, and local electrical suppliers.

Installation Notes

• The boom arm components are designed with a 26mm opening to fit standard 3/4" EMT conduit.
• Pre-drilled holes allow you to secure the boom arm components to the EMT conduit using standard screws.
• We recommend that the boom length span no more than 75% of your CNC’s longest axis for optimal support and stability.

Why It’s a Must-Have

• Keeps hoses and wires suspended and free from snags
• Helps prevent unnecessary strain on your cable chain
• Easily accommodates upgrades like ATC systems and water cooling
• Modular design works with our Ultimate Hose Clamp system
• Improves workspace cleanliness, safety, and cable management

Upgrade your CNC setup with a cleaner, more organized way to manage hoses, wires, and accessories while keeping them safely out of the machine’s working area.

Item SKU: HOSE-BOOM-2.5
